Visaton FR 10 F - 4 Ohm broadband speakers

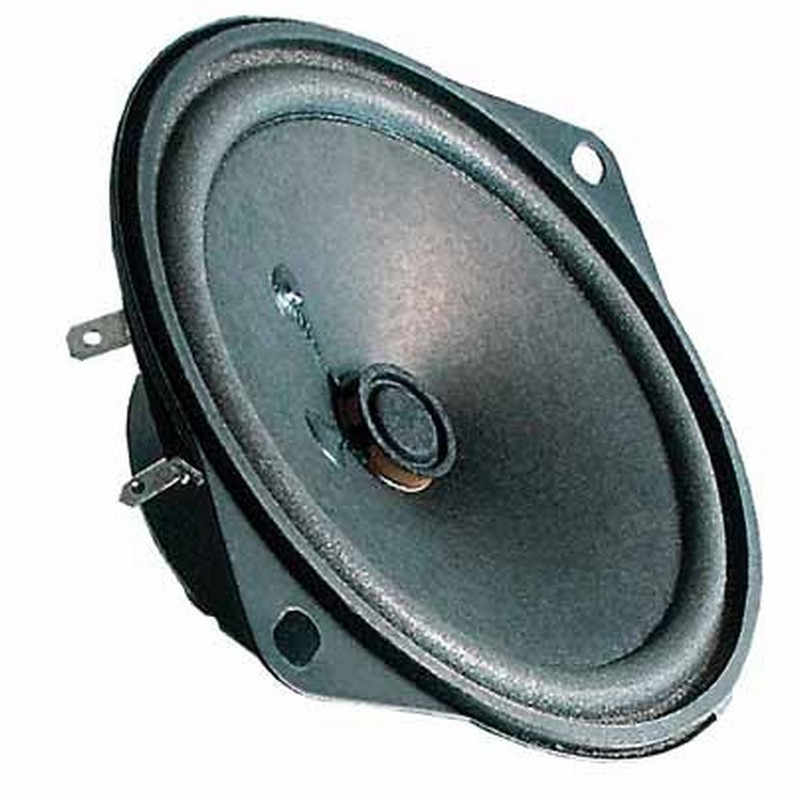

10 cm (4") broadband loudspeaker
Visaton FR 10 F - 4 Ohm broadband speakers
10 cm (4") broadband loudspeaker
€7.41
Our previous price
€10.59
Save 30%
Tax included
Shipping excluded
4-0011
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
10 cm (4") broadband loudspeaker with two fastening straps and low installation depth.
High sound pressure and good high-tone reproduction.
Easy installation in vehicles with installation locations for 10-cm speakers.
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |

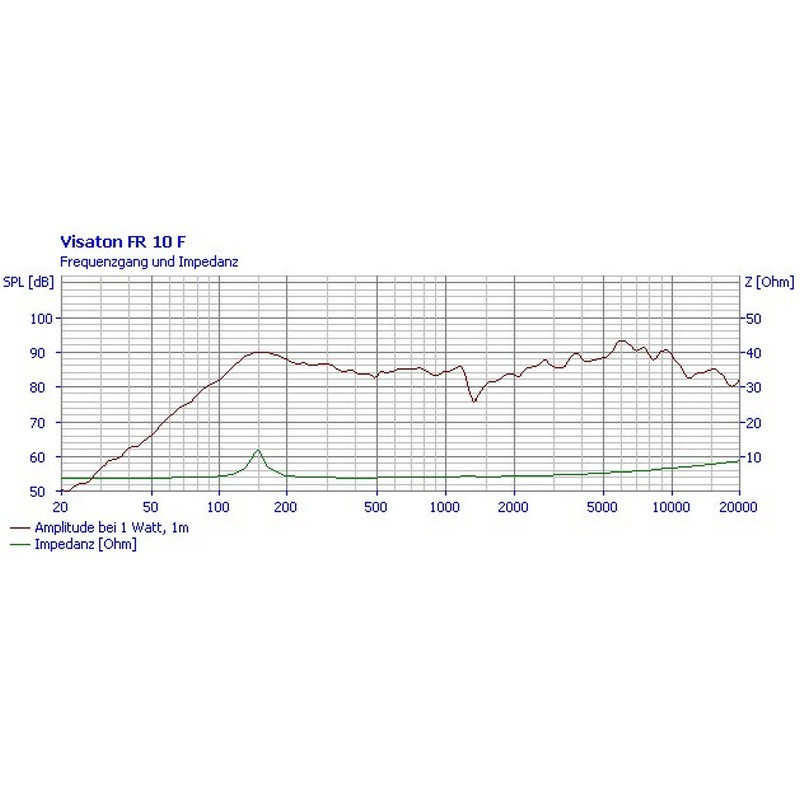

| Transmission range (-10 dB) | 100–22000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

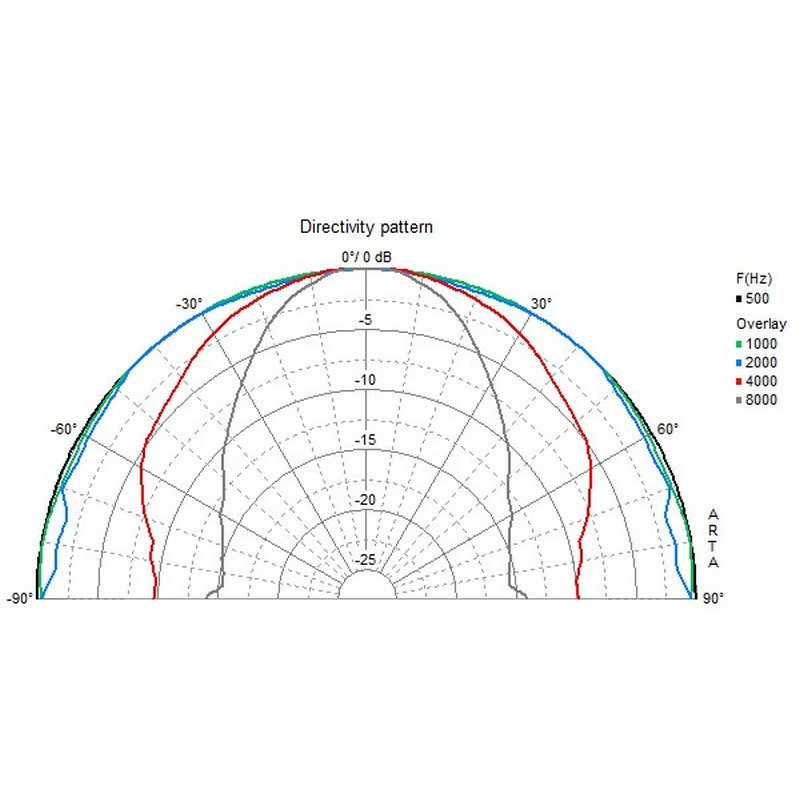

| Beam angle (-6 dB) | 122°/4000 Hz |
| Border deflection | +/-4 mm |
| Reaction frequency fs | 133 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 14 mm |

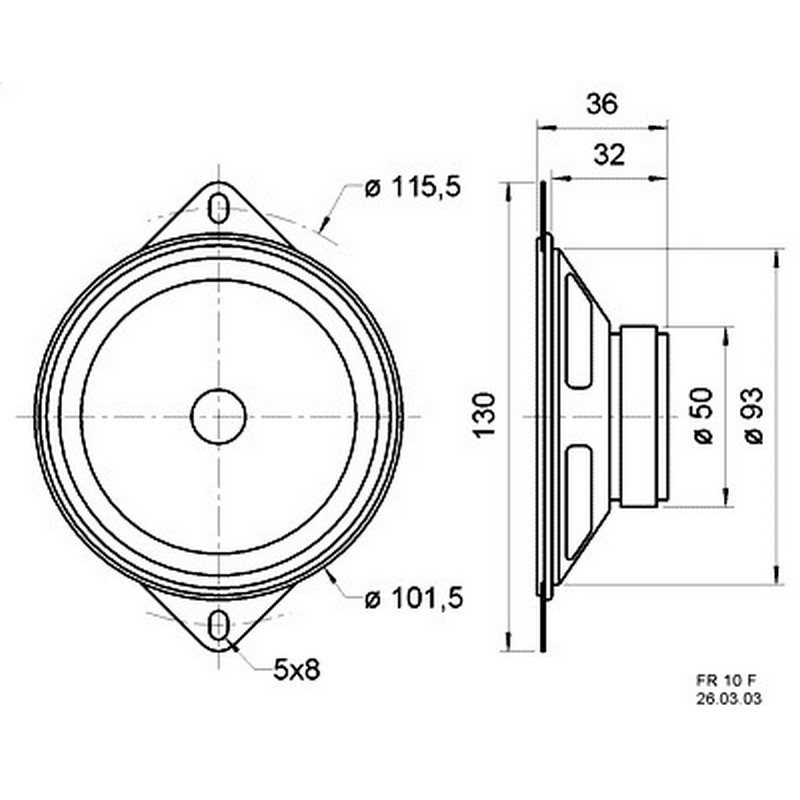

| Sound wall opening | 94 mm |
| Weight net | 0,2 kg |
| DC resistance Rdc | 3,7 Ohm |
| Mechanical Q-factor Qms | 6,5 |
| Electric Q-factor Qes | 1,99 |
| Total Q factor Qts | 1,52 |
| Equivalent air yield volume Vas | 2,2′ |
| Effective membrane surface Sd | 52 cm2 |
| Dynamic moving mass Mms | 2.4 g |
| Drive factor Bxl | 1,7 tm |
| Vibration coil inductance L | 0,35 mH |
| Temperature range | −25 ... 70 °C |
