Visaton FR 9.15 - 4 Ohm broadband speakers
9 x 15 cm (4" x 6") Broadband speakers
Visaton FR 9.15 - 4 Ohm broadband speakers
9 x 15 cm (4" x 6") Broadband speakers
€14.92
Our previous price
€21.31
Save 30%
Tax included
Shipping excluded
4-0038
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

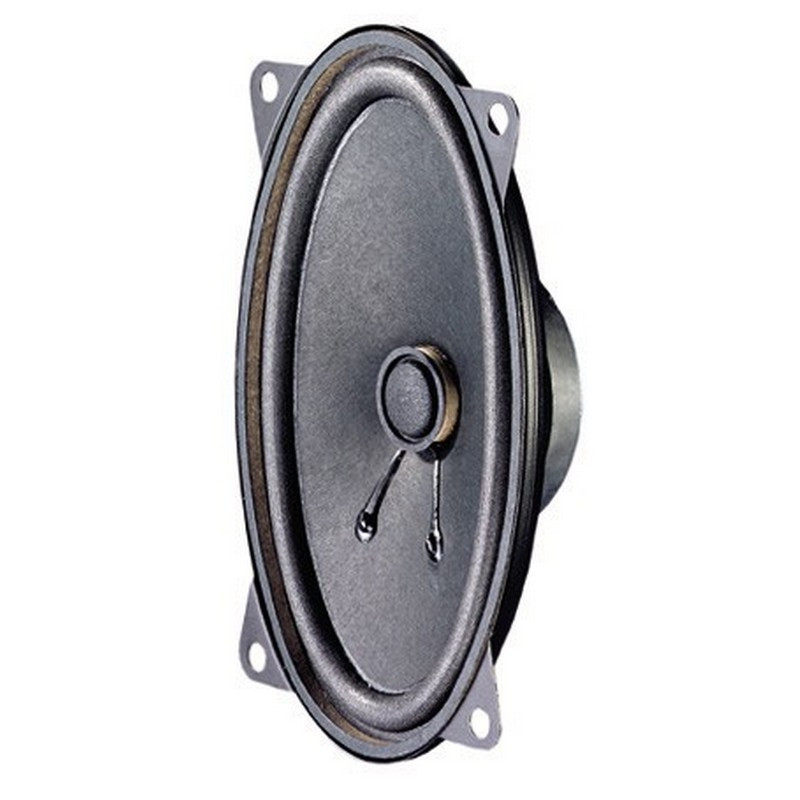

9 x 15 cm (4" x 6") broadband loudspeaker.
Balanced frequency response, therefore for voice and music playback z.B. especially well suited in vehicles.
Low installation depth.
Applications
- Road and rail vehicles (z.B. Motorhomes, trams etc.)
Â
Characteristics
- Moisture-impregnated membrane
- Metal design
Â
Technical data
| Rated load capacity | 15 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |

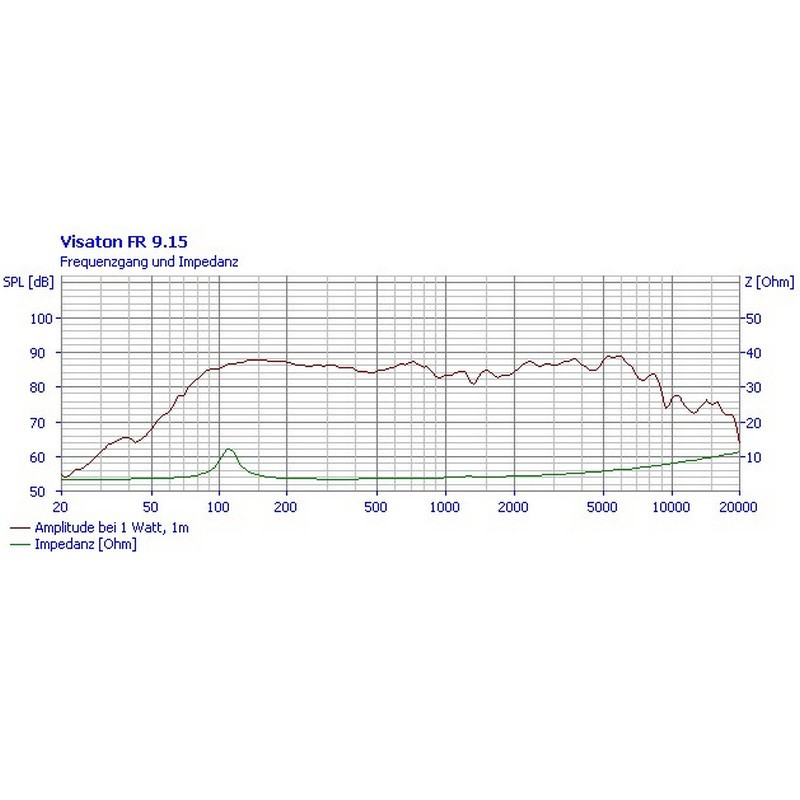

| Transmission range (-10 dB) | 75–16000 Hz |
| Medium sound pressure level | 85 dB (1 W/1 m) |

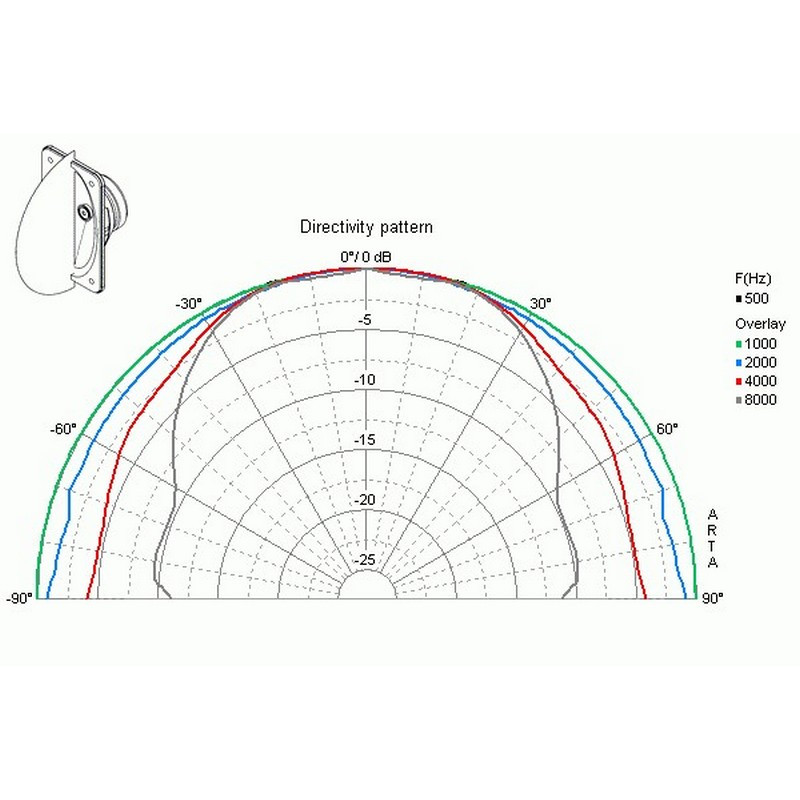

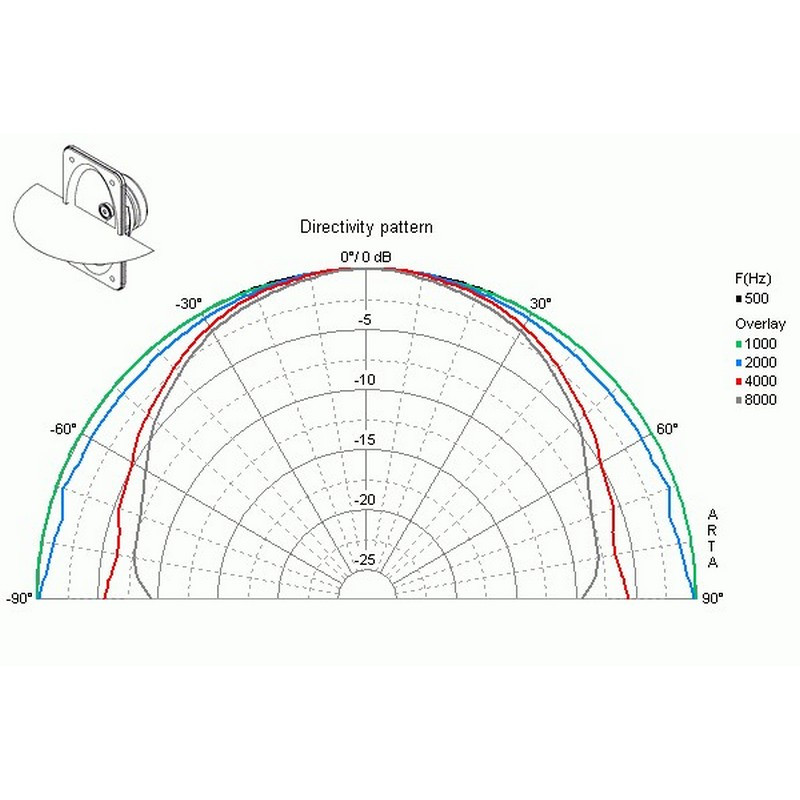

| Beam angle (-6 dB) | 147°/4000 Hz. 180°/4000 Hz. |
| Border deflection | +/-1.5 mm |
| Reaction frequency fs | 120 Hz |
| Magnetic induction | 0,9 % |
| Magnetic flux | 170 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5 mm |

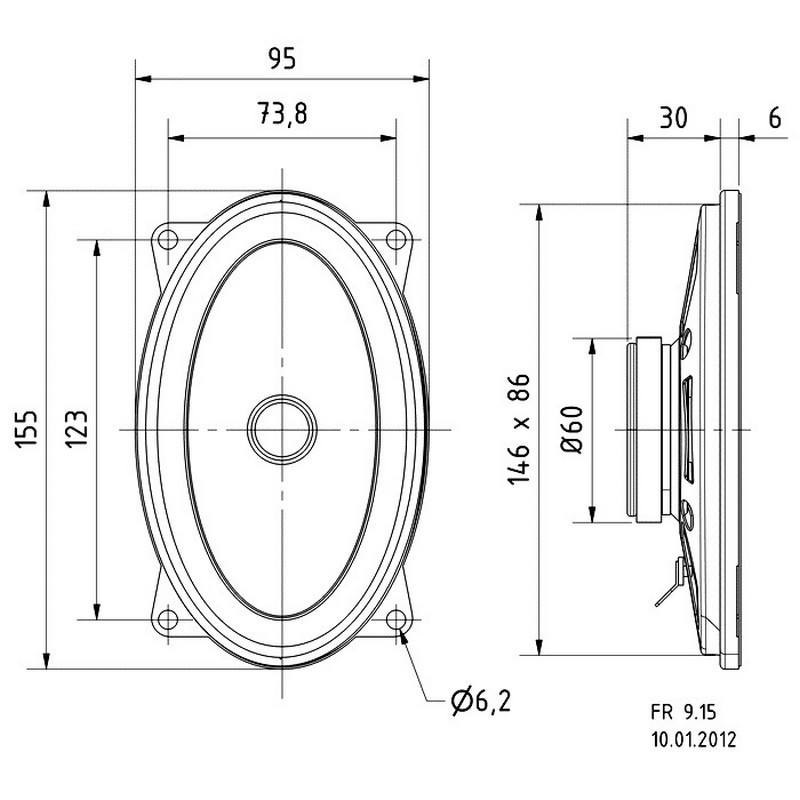

| Sound wall opening | 146 x 87 mm (oval) |
| Weight net | 0,277 kg |
| DC resistance Rdc | 3.5 Ohm |
| Mechanical Q-factor Qms | 8,90 |
| Electric Q-factor Qes | 2,29 |
| Total Q factor Qts | 1,82 |
| Equivalent air yield volume Vas | 2,9 l |
| Effective membrane surface Sd | 79 cm2 |
| Dynamic moving mass Mms | 4,6 g |
| Drive factor Bxl | 2.3 Tm |
| Vibration coil inductance L | 0,3 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
