Visaton SC 8 N - 8 Ohm broadband speakers

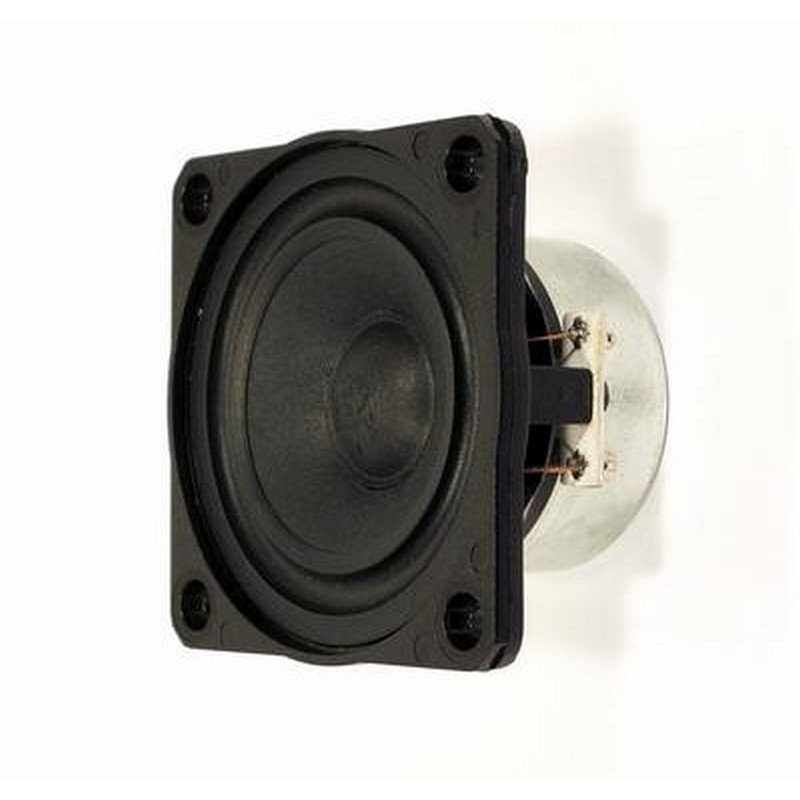

Magnetically shielded 8 cm (3.3") broadband loudspeaker
Visaton SC 8 N - 8 Ohm broadband speakers
Magnetically shielded 8 cm (3.3") broadband loudspeaker
€21.90
Our previous price
€31.29
Save 30%
Tax included
Shipping excluded
4-0084
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Magnetically shielded 8 cm (3.3") broadband loudspeaker with cellulose membrane and inverse rubber beads.

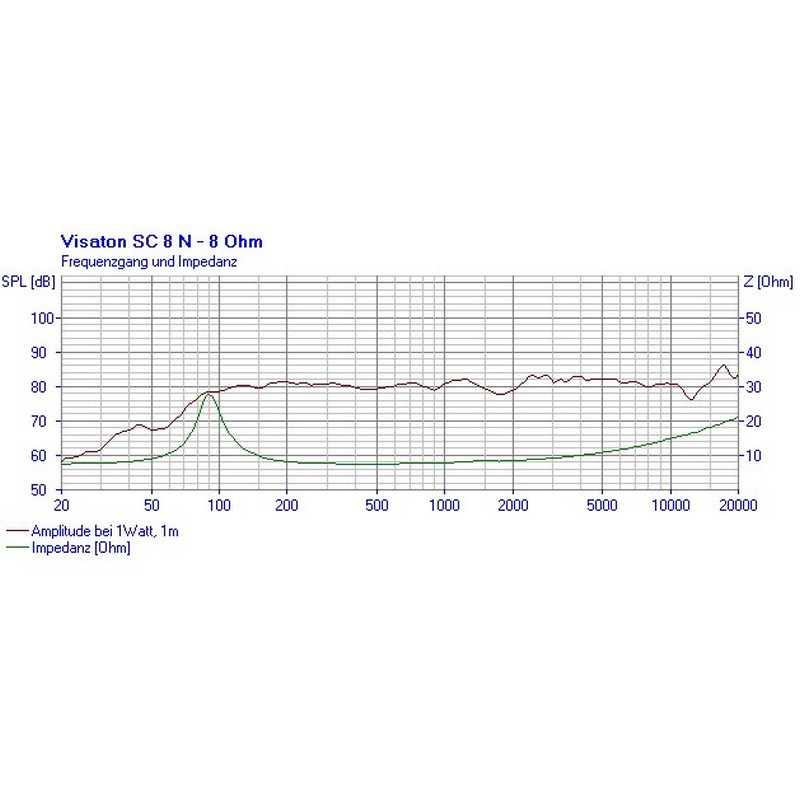

Very balanced frequency response.
Together with the shielded tweeter SC 5 - 8 Ohm especially suitable in small, magnetically shielded 2-way combinations for multi-media boxes.
Applications
- surround center speakers
- Multi-media boxes
- Video monitors
- TV sets
- Computer terminals
Characteristics
- Plastic: ABS V0 (UL 94: V-0)
- moisture-impregnated membrane
- magnetic shielding
Technical data
| Rated load capacity | 30 W |
|---|---|
| Music loading | 50 W |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 70–20000 Hz |
| Medium sound pressure level | 81 dB (1 W/1 m) |

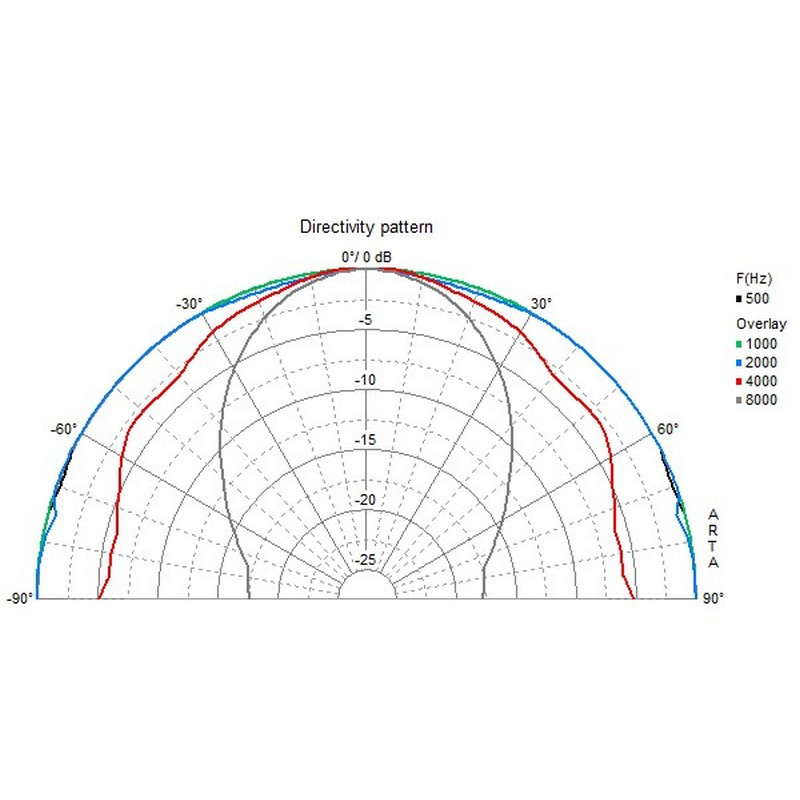

| Beam angle (-6 dB) | 150/4000 Hz |
| Border deflection | +/-3 mm |
| Reaction frequency fs | 110 Hz |
| Magnetic induction | 0,9 % |
| Magnetic flux | 170 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 4 mm |

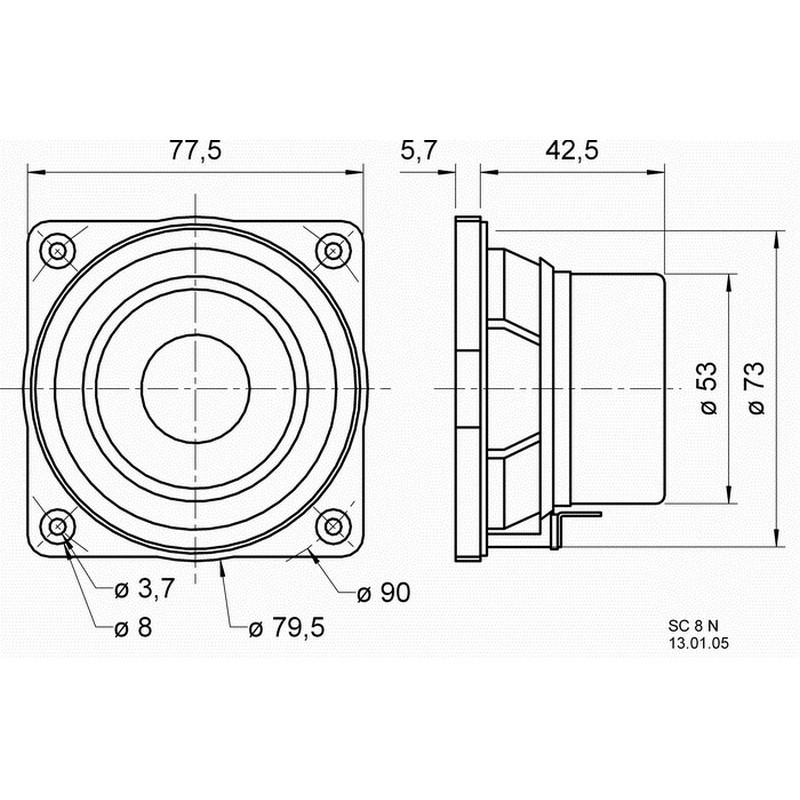

| Sound wall opening | 73 mm |
| Weight net | 0,28 % |
| DC resistance Rdc | 7.0 Ohm |
| Mechanical Q-factor Qms | 3,68 |
| Electric Q-factor Qes | 1,31 |
| Total Q factor Qts | 0,97 |
| Equivalent air yield volume Vas | 1.5 l |
| Effective membrane surface Sd | 26 cm2 |
| Dynamic moving mass Mms | 1.9 g |
| Drive factor Bxl | 2.4 Tm |
| Vibration coil inductance L | 0,3 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
