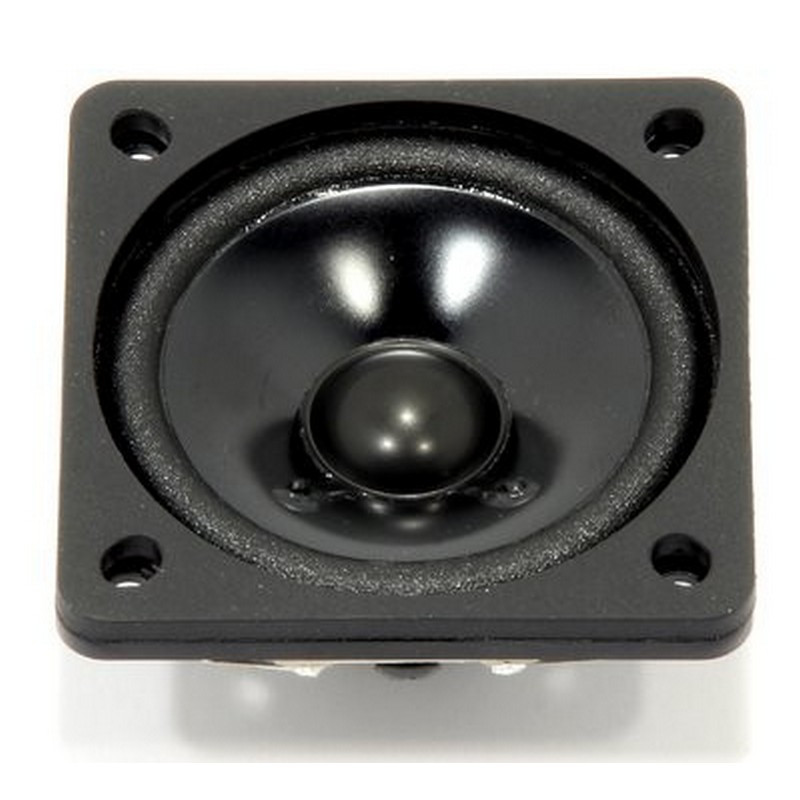

Visaton SL 70 NDV - 4 Ohm broadband speakers
6.5 cm (2.5") broadband loudspeaker
Visaton SL 70 NDV - 4 Ohm broadband speakers
6.5 cm (2.5") broadband loudspeaker
€20.86
Our previous price
€29.80
Save 30%
Tax included
Shipping excluded
4-0085
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
6.5 cm (2.5") broadband loudspeaker with balanced frequency response and pronounced high-tone proportion.
Particularly suitable as a built-in loudspeaker for music and speech reproduction as well as for equipping ELA lines.
Waterproof and robust construction due to various plastic materials. Thanks to neodymium drive extremely lightweight and compact.
*) IP protection class for front side when installed in a sealed housingTechnical data
| Rated load capacity | 8 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 4 Ohms |

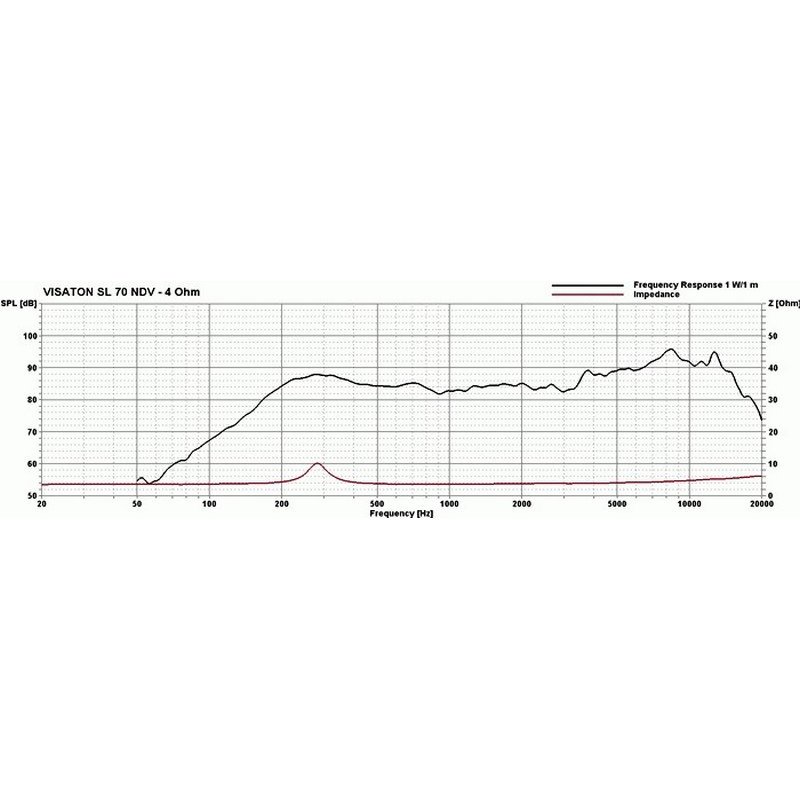

| Transmission range (-10 dB) | 150–20000 Hz |
| Medium sound pressure level | 87 dB (1 W/1 m) |
| Border deflection | +/-3 mm |
| Reaction frequency fs | 220 Hz |
| Magnetic induction | 1,26 T |
| Magnetic flux | 148 μWb |
| Oscillating coil diameter | 15 mm |
| Winding height | 3 mm |

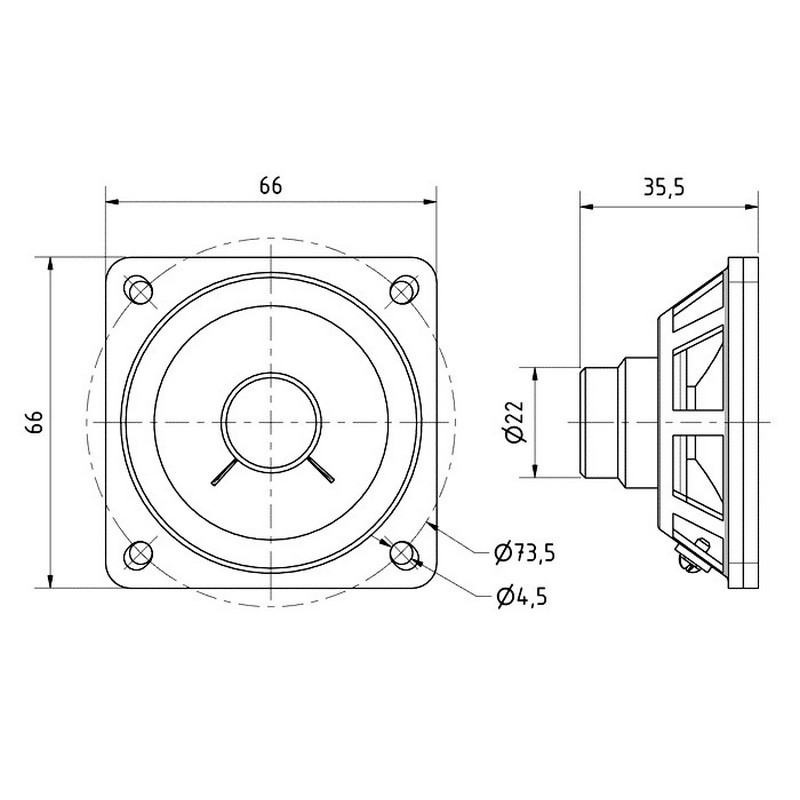

| Sound wall opening | 63 mm |
| Weight net | 0,06 kg |
| DC resistance Rdc | 3.6 Ohm |
| Mechanical Q-factor Qms | 5,18 |
| Electric Q-factor Qes | 3,6 |
| Total Q factor Qts | 2,12 |
| Equivalent air yield volume Vas | 0,28 |
| Effective membrane surface Sd | 21.6 cm2 |
| Dynamic moving mass Mms | 0,9 g |
| Drive factor Bxl | 1,18 Tm |

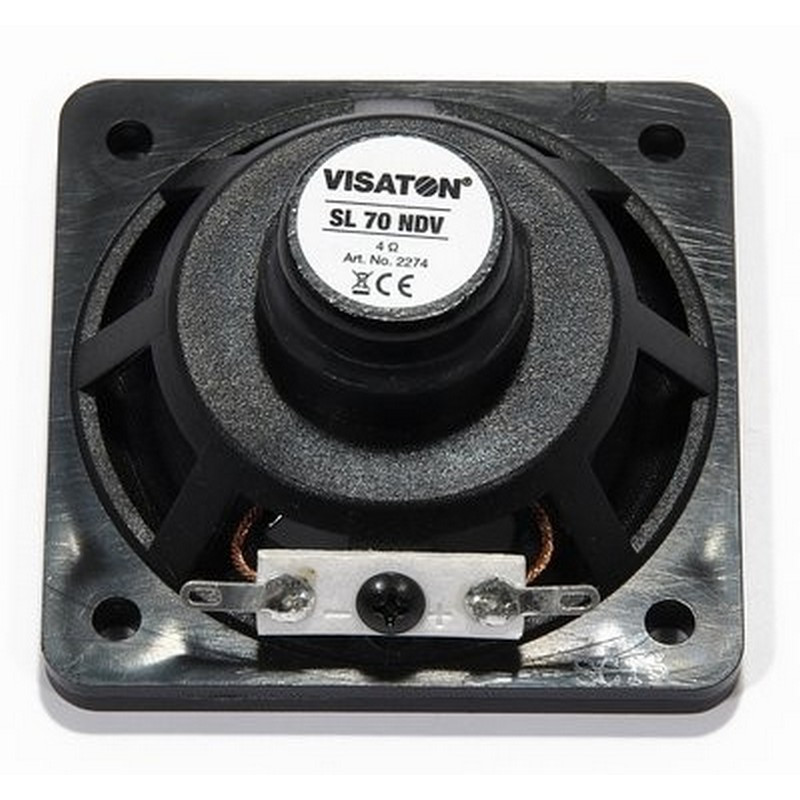

| Connections | 3.0 x 0.5 mm (+) 3.0 x 0.5 mm (−) |
| Protection class | IP 65 *) |
| Temperature range | −40 – 80 °C |
