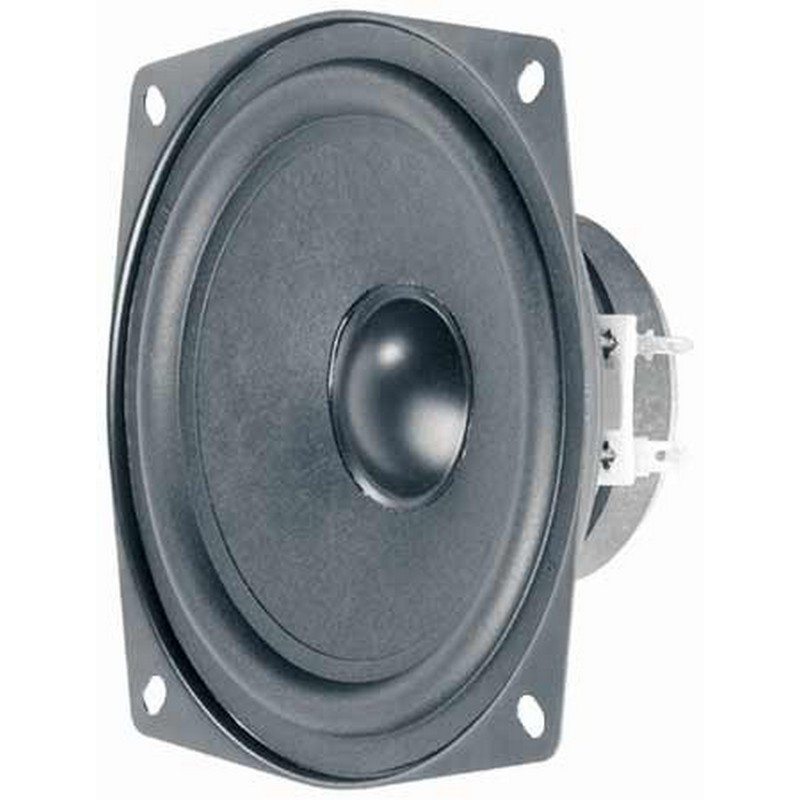

Visaton WS 13 E - 8 Ohm broadband speakers
13 cm (5") broadband loudspeaker
Visaton WS 13 E - 8 Ohm broadband speakers
13 cm (5") broadband loudspeaker
€20.73
Our previous price
€29.61
Save 30%
Tax included
Shipping excluded
4-0092
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
13 cm (5") broadband loudspeaker with paper membrane and elastic rubber bead.
Also usable as low-medium toners.
Because of the special basket shape, it can be used especially as a replacement for many HiFi terminal boxes.
Technical data
| Rated load capacity | 40 W |
|---|---|
| Music loading | 60 W |
| Nominal impedance Z | 8 Ohm |

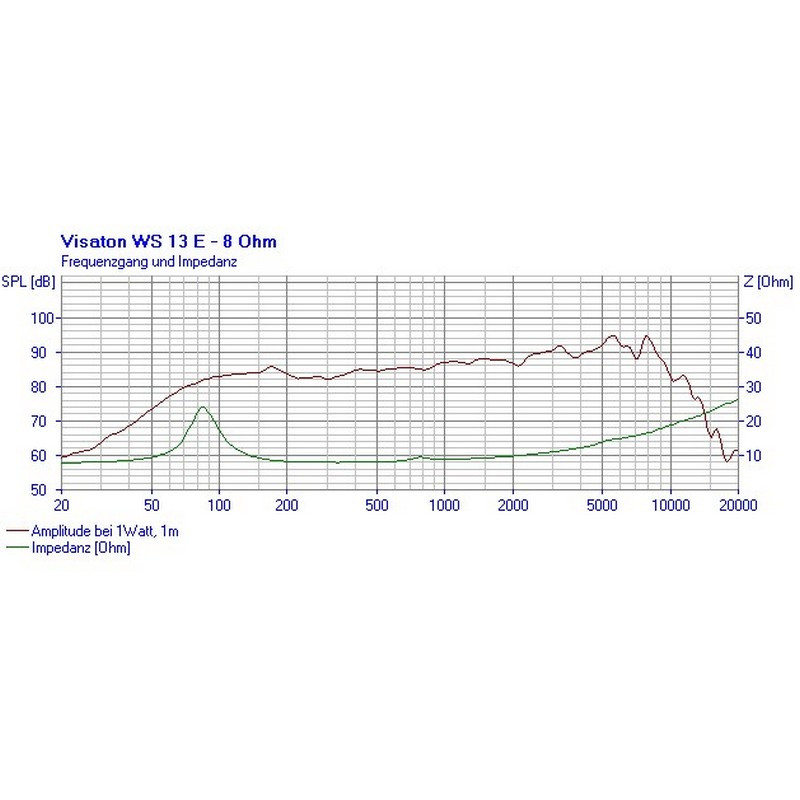

| Transmission range (-10 dB) | fu–12000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 86 dB (1 W/1 m) |

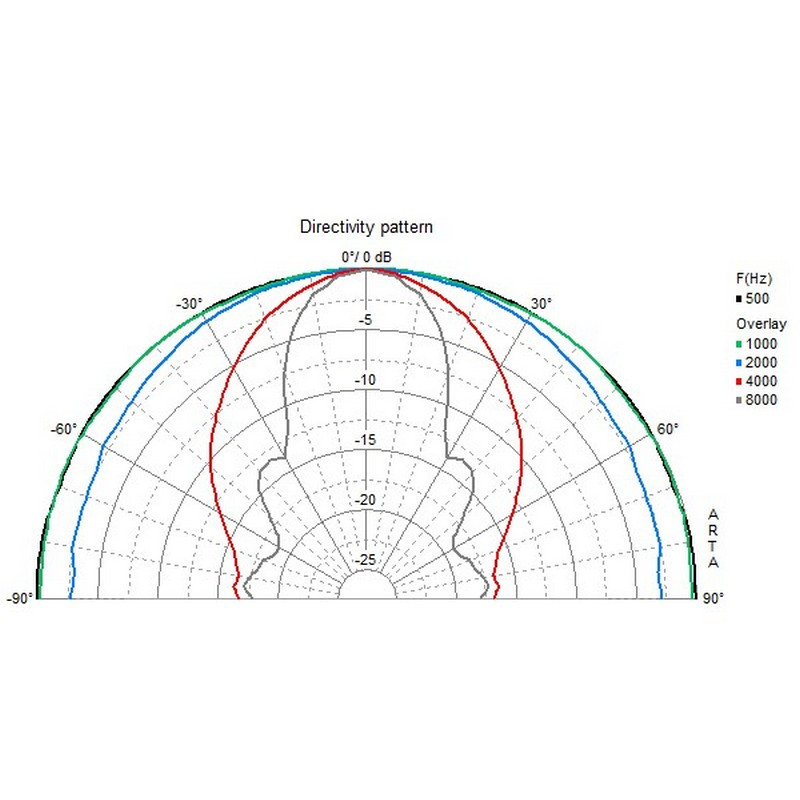

| Beam angle (-6 dB) | 65°/4000 Hz |
| Border deflection | +/-7,5 mm |
| Reaction frequency fs | 83 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 250 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5.5 mm |

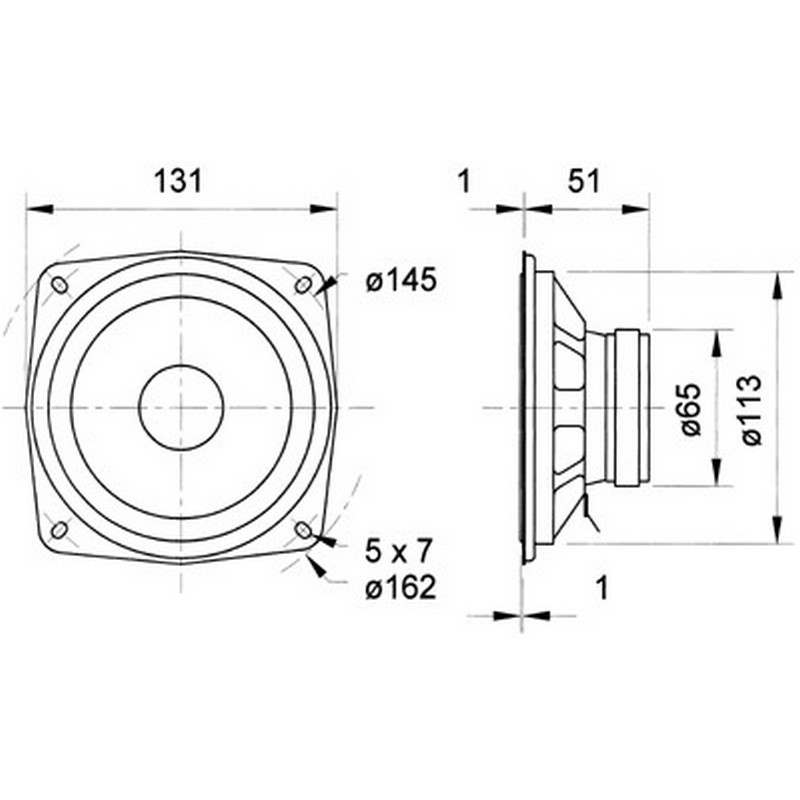

| Sound wall opening | 113 mm |
| Weight net | 0,34 kg |
| DC resistance Rdc | 7.7 Ohm |
| Mechanical Q-factor Qms | 3,52 |
| Electric Q-factor Qes | 1,56 |
| Total Q factor Qts | 1,08 |
| Equivalent air yield volume Vas | 7,7 l |
| Effective membrane surface Sd | 86,5 cm2 |
| Dynamic moving mass Mms | 5.1 g |
| Drive factor Bxl | 3,6 Tm |
| Vibration coil inductance L | 0,8 mH |
