THE kit for beginners and all who like cheap and good!

d-start 13 from dess akustik

Cheap complete kit that sounds significantly better than the price suggests.
.

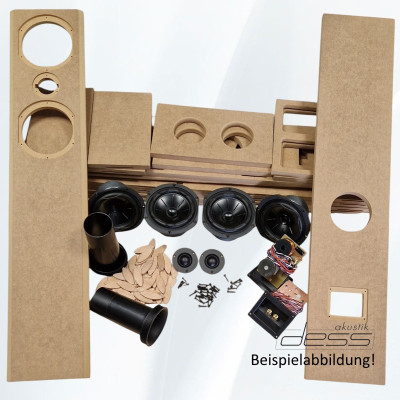

Scope

.

2x 13cm Low mid-tone

- high quality, stable casting basket
- low-resonance aluminium membrane
- Rubber bead with "wave breaker" profile
- ventilated coil
- balanced centers
- brilliant bass performance

2x 28mm tweeter

- 28mm calotte tweeter
- Soft-Dome membrane
- balanced sound
- good spatiality

2x frequency switch (mounted to terminal)

- Completely constructed frequency switch
- incl. cable
- Cable shoes for easy insertion of the chasis
- NO soldering required!
- is simply screwed into the terminal
- Specially designed for this kit in our own development

2x housing kit

- CNC-milled wood parts
- 100% fit
- incl. Lamellos (flat dowel) for easy installation
- all cutouts milled accurately
- all screw holes pre-drilled

2x Screw Kit

- matching screws in black
- perfect optics
- perfect hold
- suitable number for mounting all parts

2x bass reflex tube

- flow-optimized funnel shape for maximum bass performance
- toolless mounting with press lips (easy to press)
- suitable length for perfect tuning

2x damping material

- high quality damping material for housing
- suitable quantity for 1 pair housing
- accurate damping see assembly instructions

Technical data:

- Housing dimensions: BxHxT 180mm x 360mm x 260mm
- Housing principle: bass reflex
- Switching: 2-way
- Frequency range (-6db) 44 - 25,000Hz
- Connection impedance: 4 Ohm
- Efficiency 84db/1m
- Rated load capacity: 60W per speaker
- Recommended amplifier power: 30-80 Watt per channel

Sound description:

Despite your small size, the d-start 13 table properly!
Such a rich foundation is not tolerated by this petty construct.
Thanks to far-reaching depth up to the 40Hz limit (-9dB), nothing is missing.
(Frequency in the article images)
The centers and the heights are also amazingly balanced for this favorable kit, so that the d-start 13 is also suitable solo for one or the other listening session.
Also in terms of level strength, the d-start 13 shows that it is not always the size.
In combination with a small subwoofer, the d-start 13 then soaks up properly and then also meets the conditions for the one or the other party.

What is still needed / provided:

- Wood glue
- Screw forces or weights for weighting during the drying of glue
- Battery screwdriver or screwdriver for mounting the loudspeaker chess and the terminal in the housing.
- sanding paper (grain 80-120)

Installation instructions (Preview):
