THE kit for beginners and all who like cheap and good!

d-start 13.3 from dess akustik

Cheap complete kit that sounds significantly better than the price suggests.

The enhanced version of the successful d-start 13.2 to the full 3-way standbox with improved sound at higher levels.

You must have heard it to believe it!
.

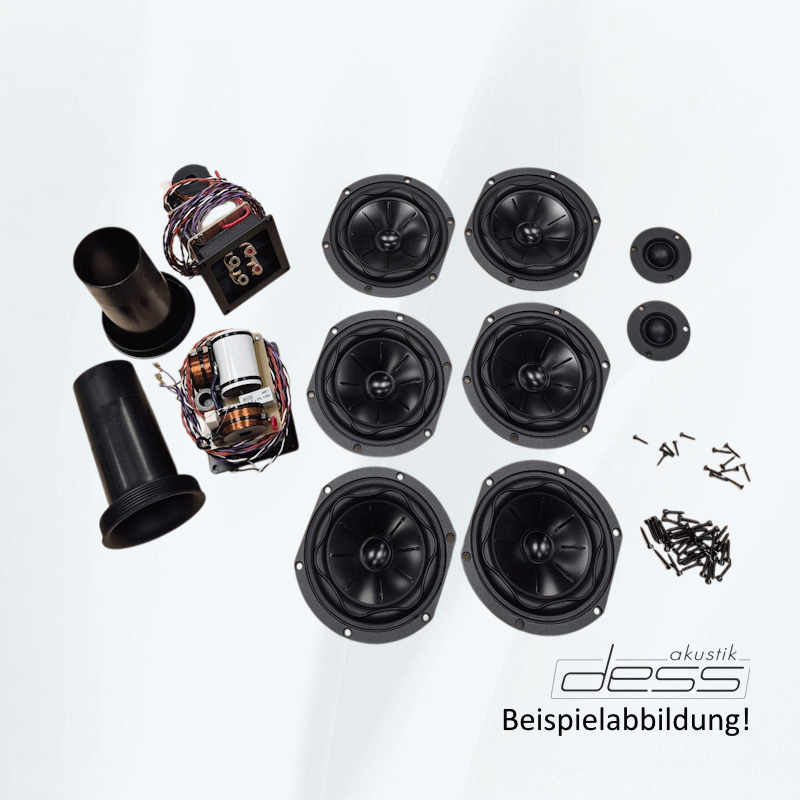

Scope

.

6x 13cm Low mid-tone

- high quality, stable casting basket
- low-resonance aluminium membrane
- Rubber bead with "wave breaker" profile
- ventilated coil
- balanced centers
- brilliant bass performance

2x 28mm tweeter

- 28mm calotte tweeter
- Soft-Dome membrane
- balanced sound
- good spatiality

2x frequency switch (mounted to terminal)

- Completely constructed frequency switch
- incl. cable
- Cable shoes for easy insertion of the chasis
- NO soldering required!
- is simply screwed into the terminal
- Specially designed for this kit in our own development
- Bi-Wiring and Bi-Amping capable

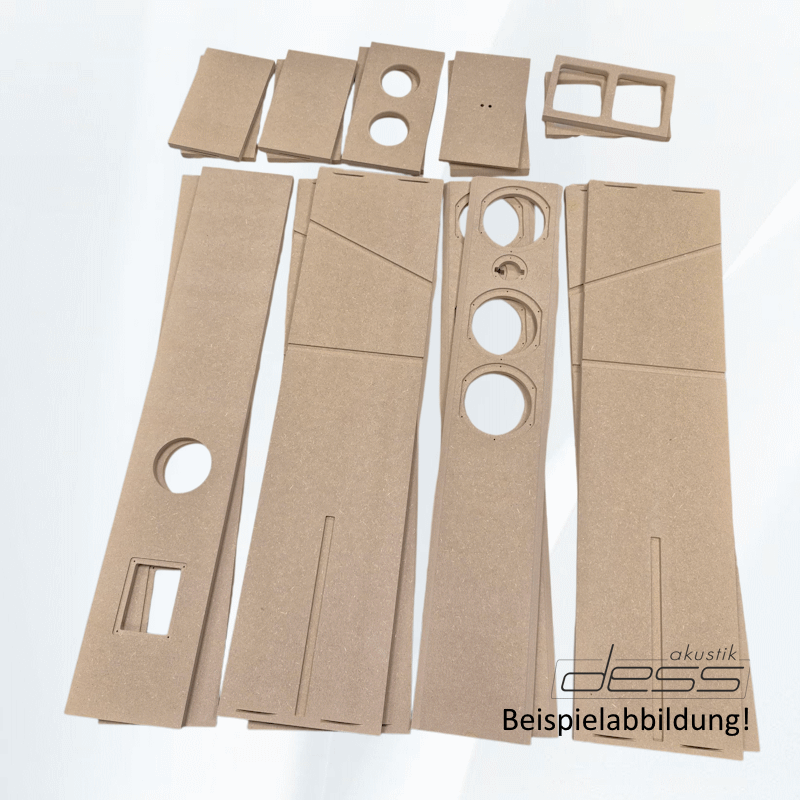

2x housing kit

- CNC-milled wood parts
- 100% fit
- incl. Lamellos (flat dowel) for easy installation
- all cutouts milled accurately
- all screw holes pre-drilled

2x Screw Kit

- matching screws in black
- perfect optics
- perfect hold
- suitable number for mounting all parts

2x bass reflex tube

- flow-optimized funnel shape for maximum bass performance
- toolless mounting with press lips (easy to press)
- suitable length for perfect tuning

2x Dämmaterial

- high quality damping material for housing
- suitable quantity for 1 pair housing
- accurate damping see assembly instructions

Technical data:

- Housing dimensions: BxHxT 180mm x 1000mm x 280mm
- Housing principle: bass reflex
- Switching: 3-way
- Frequency range (-6db) 36 - 25,000Hz
- Connection impedance: 4 Ohm
- Efficiency 85db/1m
- Nominal load capacity: 100W per speaker
- Recommended amplifier power: 60-200 Watt per channel

Sound description:

The d-start 13.3 overthrows the 13.2!
If you don't know better, you think it's a subwoofer.
Thanks to far-reaching depth up to the 35Hz limit (-6dB), nothing is missing.

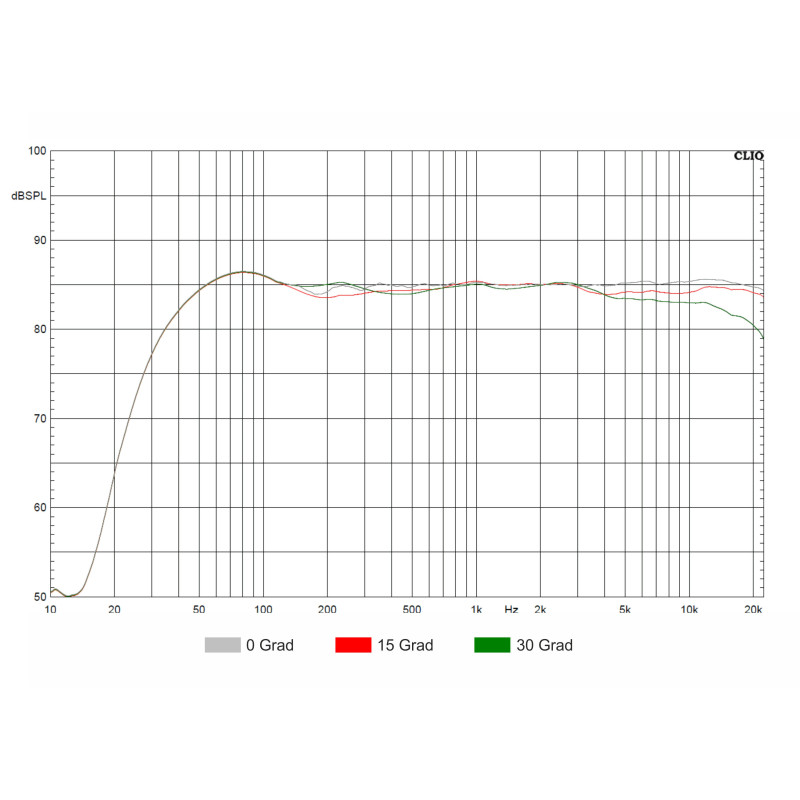

(Frequency in the article images)
Thanks to additional medium tone (complete 3-way), the centers are much clearer and more differentiated, especially at higher volume levels.
Especially the stage image profits from the additional midrange driver.
The bass performance could also be slightly increased again, as 2 of the 13cm-Chasis are used as pure bass driver.
This makes d-start 13.3 suitable for almost any kind of music.
The level strength of the additional medium tone has increased again compared to the d-start 13.2.
Party-fitting levels including strong basses are therefore no problem!

What is still needed / provided:

- Wood glue
- Screw forces or weights for weighting during the drying of glue
- Battery screwdriver or screwdriver for mounting the loudspeaker chess and the terminal in the housing.
- sanding paper (grain 80-120)

Installation instructions (Preview):
