BPA Triptychon Light Housing Kit
(quantity 1 = 1 piece, quantity 2 = 1 pair)
BPA Triptychon Light Housing Kit
(quantity 1 = 1 piece, quantity 2 = 1 pair)
€413.00
Tax included
Shipping excluded
Delivery time: 2-3 weeks
2-0297 MDF-roh, Stoß, BS
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

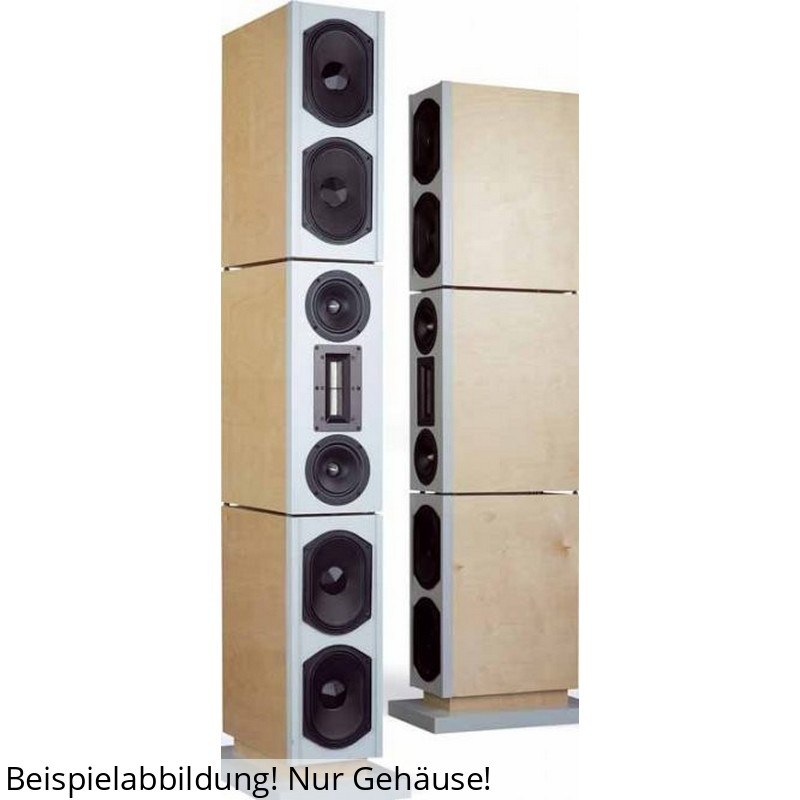

Housing kit for Blue Planet Acoustic Triptychon Light:
The article contains the following wood parts:
| Parts | Dimensions (mm) | Number | |
| Material: 19 mm MDF raw or black or 18 mm MPX Birch bright | |||
| Front panel | 220 x 550 | 1 | |
| Cover and bottom MHT | 176 x 401 | 2 | |
| Rear wall + switch chamber MHT | 176 x 512 | 2 | |
| Side walls | 401 x 550 | 2 | |
| Interior divider 1 MHT | 176 x 119 | 2 | |
| Interior divider 2 MHT | 176 x 180 | 1 | |
| Internal part 3 MHT | 176 x 130 | 1 | |
| Front bass | 220 x 550 | 2 | |
| Cover and bottom bass | 176 x 401 | 4 | |
| Rear wall bass | 176 x 512 | 2 | |
| Side walls | 401 x 550 | 4 | |
| Stiffening bass | 50 x 176 | 8 | |
| Material: 22 mm MDF raw or black or 21 mm MPX birch bright | |||
| Base part 1 | 320 x 520 | 2 | |
| Base part 2 | 176 x 368 | 2 | |
| Material: 10 mm MDF raw or black or 12 mm MPX birch bright | |||
| Connection boards | 176 x 368 | 2 | |
All parts with milling / cutouts according to the construction plan of BPA.
No speakers included, only wooden parts.
CNC-milled sound walls and housing from the professional
The latest 5-axis technology for perfect results.
A different idea?
Ask us!
Assembly of housing kits
We are always asked, "Can I do this with the assembly?"
Our answer is clear: YES!
All our kits are dimensionally CNC-freezed.
From a material thickness of 15mm, we basically use flat dowels for easy assembly.
The flat dowel system consists of the Lamellos and the necessary slots.
The slots are no longer visible after assembly.
The Lamellos supplied are simply inserted with some glue into the slots provided for this purpose.
As a result, the housing parts can be simply plugged together.
This ensures that all parts are in the right position.
Please make sure to use sufficient glue and suitable screw clamps.
For unskilled “housing builders” we recommend to put the housing parts together first without glue to get an impression of the procedure.
All these points provide a perfect result, with minimal effort.
