BPA Triptychon Home Cinema Housing Kit
BPA Triptychon Home Cinema Housing Kit

BPA Triptychon Home Cinema Housing Kit

(quantity 1 = 1 piece, quantity 2 = 1 pair)

€1,246.00
Tax included Shipping excluded Delivery time: 2-3 weeks
Housing kits
2-0300 MDF-roh, Stoß, BS
Material
Edges
Type
Quantity
Wishlist
Compare
Production on demand
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

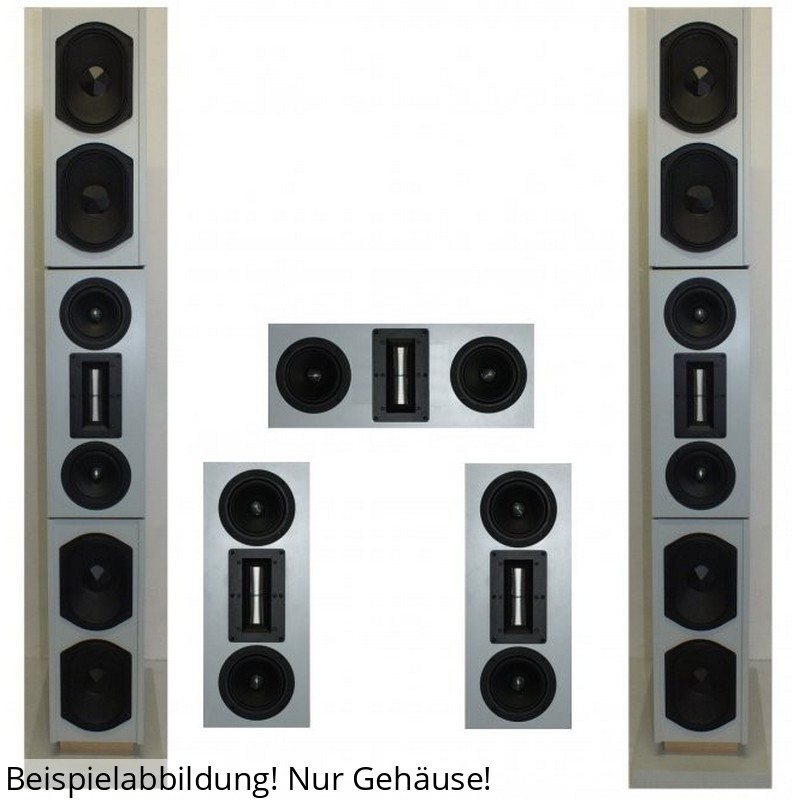

Housing kit for Blue Planet Acoustic Triptychon Heimkino:

The article contains the following wood parts:

Parts Dimensions (mm) Number
Front speaker Triptychon Light
Material: 19 mm MDF raw or black or 18 mm MPX Birch bright
Front panel 220 x 550 2
Cover and bottom MHT 176 x 401 4
Rear wall + switch chamber MHT 176 x 512 4
Side walls 401 x 550 4
Interior divider 1 MHT 176 x 119 4
Interior divider 2 MHT 176 x 180 2
Internal part 3 MHT 176 x 130 2
Front Bass 220 x 550 4
Cover and bottom bass 176 x 401 8
Rear panel bass 176 x 512 4
Side walls 401 x 550 8
Stiffening bass 50 x 176 16
Material: 22 mm MDF raw or black or 21 mm MPX birch bright
Base part 1 320 x 520 4
Base part 2 176 x 368 4
Material: 10 mm MDF raw or black or 12 mm MPX birch bright
Connection boards 176 x 368 4
Rear Speaker Triptychon Main
Material: 19 mm MDF raw or black or 18 mm MPX Birch bright
Front 220 x 550 2
Cover and bottom 176 x 401 4
Rear wall + switch chamber 176 x 512 4
Side walls 401 x 550 4
Inner part 1 176 x 119 4
Inner part 2 176 x 180 2
Internal part 3 176 x 130 2
Center Speakers Triptychon Center
Material: 22 mm MDF raw or black or 21 mm MPX birch bright
Front 220 x 490 1
Cover and bottom 278 x 490 2
Rear wall 176 x 446 2
Side walls 176 x 278 2
Inner part 1 176 x 120 2
Inner part 2 176 x 128 1
Internal part 3 176 x 117 1

All parts with milling / cutouts according to the construction plan of BPA.

No speakers included, only wooden parts.


CNC-milled sound walls and housing from the professional


The latest 5-axis technology for perfect results.

A different idea ?
Ask us !


Assembly of housing kits

We are always asked, "Can I do this with the assembly?"

Our answer is clear: YES!

All our kits are dimensionally CNC-freezed.
From a material thickness of 15mm, we basically use flat dowels for easy assembly.


The flat dowel system consists of the Lamellos and the necessary slots.
The slots are no longer visible after assembly.

The Lamellos supplied are simply inserted with some glue into the slots provided for this purpose.


As a result, the housing parts can be simply plugged together.
This ensures that all parts are in the right position.
Please make sure to use sufficient glue and suitable screw clamps.
For unskilled “housing builders” we recommend to put the housing parts together first without glue to get an impression of the procedure.

All these points provide a perfect result, with minimal effort.
