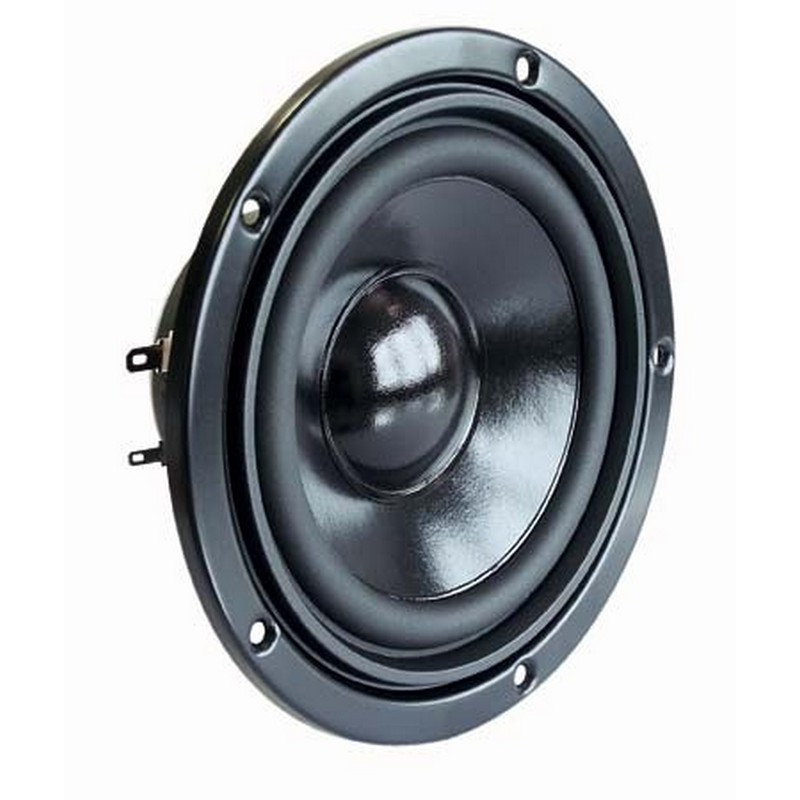

Visaton W 130 S - 8 Ohm HiFi woofer

13 cm (5") HiFi bass sound

€32.65
Our previous price €46.64
Save 30%
Tax included Shipping excluded
Low-medium tones
4-0125
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

13 cm (5") HiFi bass sound with coated paper membrane, elastic rubber bead and 25mm coil.

It can be used as a tweeter and by very balanced frequency response also as a tweeter in larger 3-way boxes.

Case recommendations

Volume/principle BR-tube fb fc)/QTC
7 l/closed - - 86 Hz/0.77
20 l/bass reflex BR 6.8 (4 cm long) 44 Hz -
30 l/bass reflex BR 19.24 (12 cm long) 39 Hz -



Technical data

Rated load capacity 50 W
Music loading 80 W
Nominal impedance Z 8 Ohm

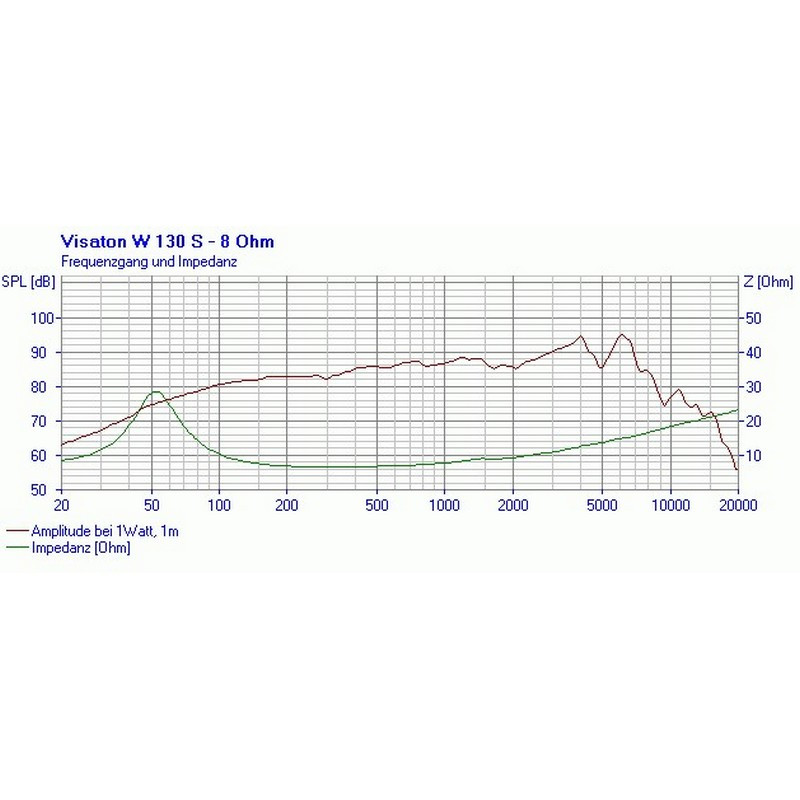

Transmission range (-10 dB) fu–12000 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 87 dB (1 W/1 m)

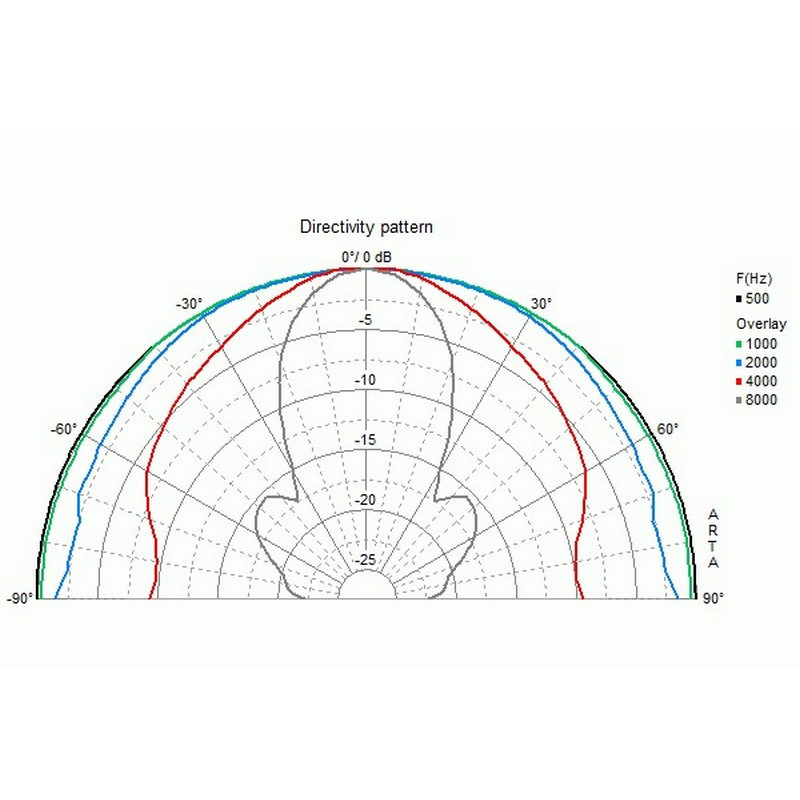

Beam angle (-6 dB) 113°/4000 Hz
Border deflection +/-8 mm
Reaction frequency fs 52 Hz
Magnetic induction 0,9 %
Magnetic flux 283 μWb
Upper pole plate height 4 mm
Oscillating coil diameter 25 mm
Winding height 8.5 mm

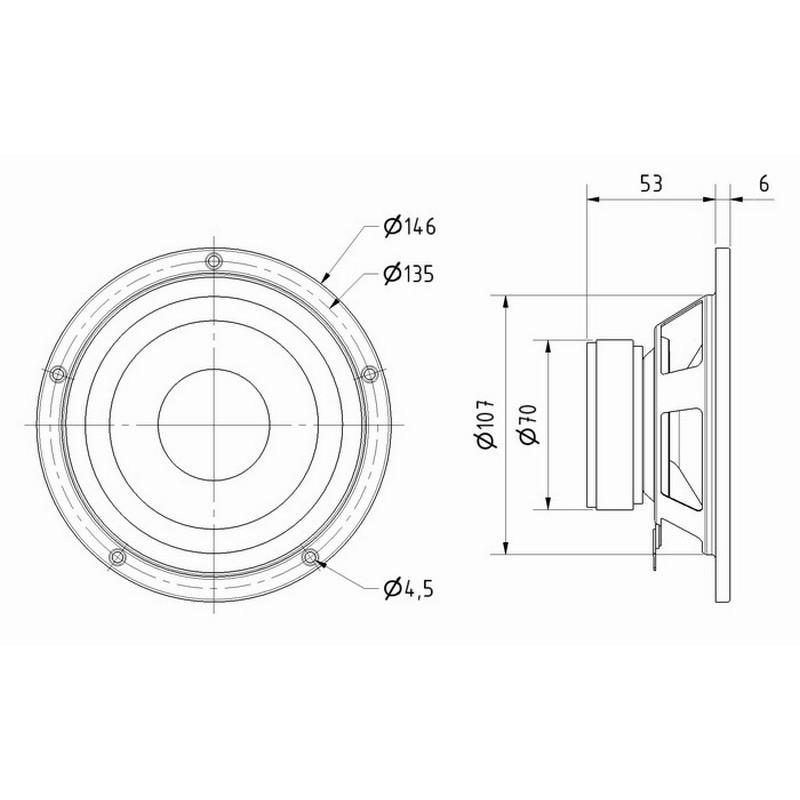

Sound wall opening 109 mm
Weight net 0,63
DC resistance Rdc 6 Ohm
Mechanical Q-factor Qms 2,26
Electric Q-factor Qes 0,59
Total Q factor Qts 0,47
Equivalent air yield volume Vas 12 l
Effective membrane surface Sd 74 cm2
Dynamic moving mass Mms 6 g
Drive factor Bxl 4,6 Tm
Vibration coil inductance L 0,6 m
