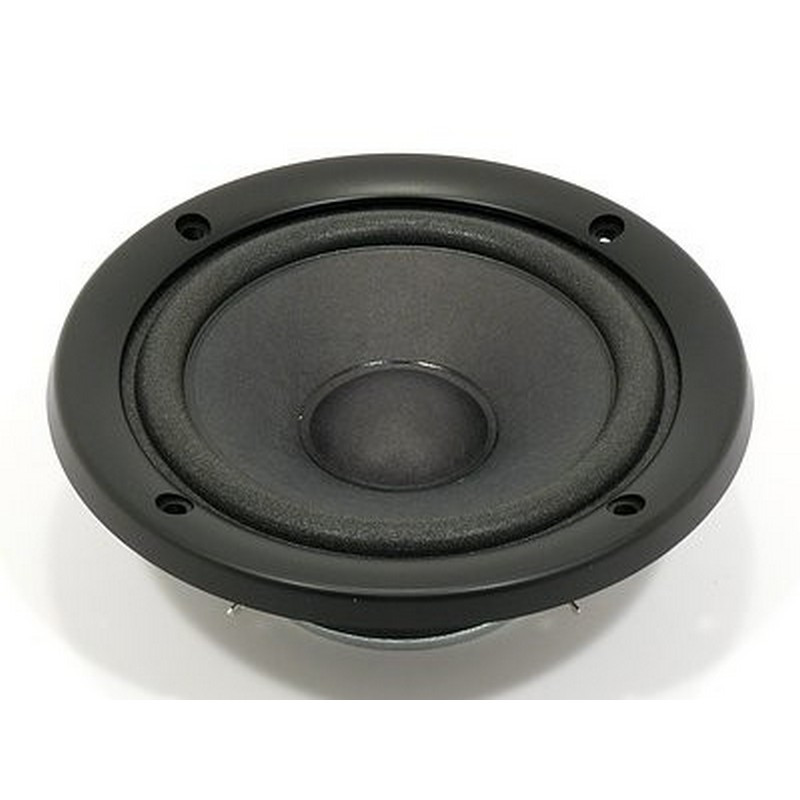

Visaton MR 130 - 8 Ohm midrange
130 mm (5")
Visaton MR 130 - 8 Ohm midrange
130 mm (5")
€25.25
Our previous price
€36.07
Save 30%
Tax included
Shipping excluded
4-0127
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
130 mm (5") for the frequency range between 1000 and 5000 Hz.
Due to the rear closed construction, a separate middle tone housing is eliminated.
Very good value for money.
Technical data
| Nominal impedance Z | 8 Ohm |

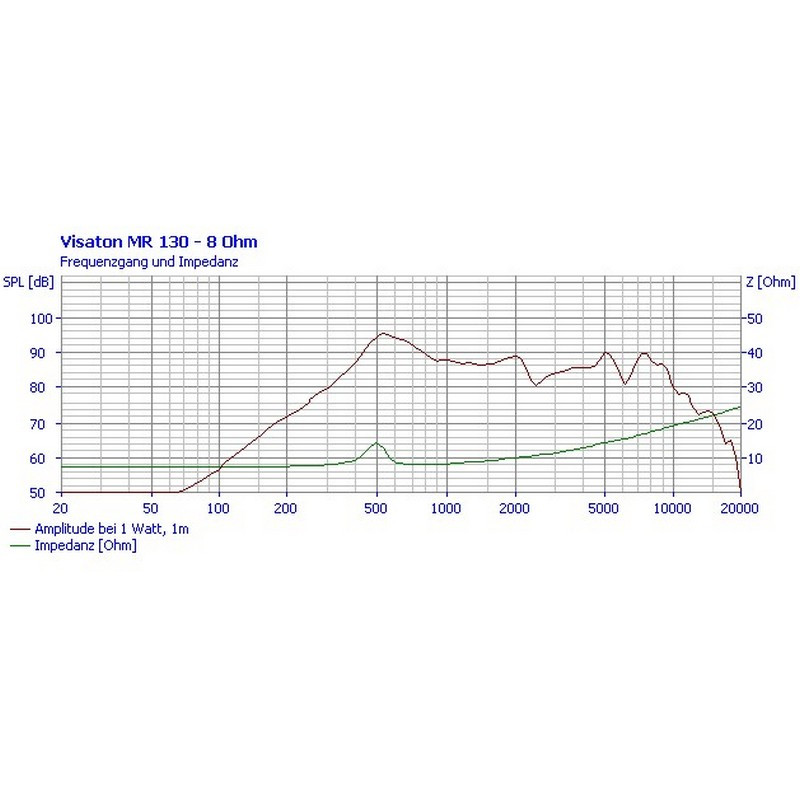

| Transmission range (-10 dB) | 400–13000 Hz |
| Medium sound pressure level | 89 dB (1 W/1 m) |

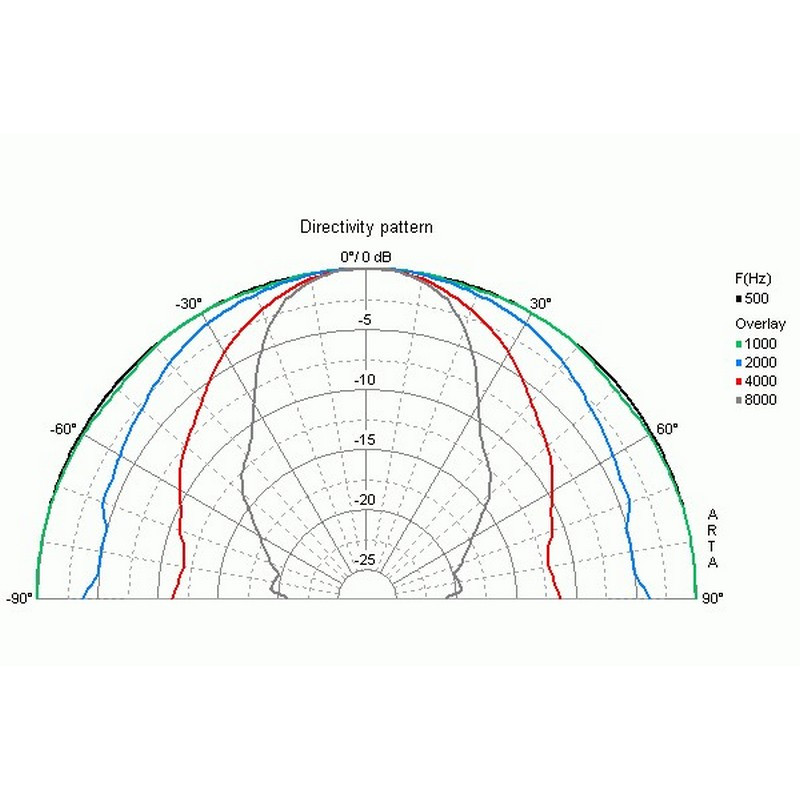

| Beam angle (-6 dB) | 79°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 500 Hz |
| Magnetic induction | 0,9 % |
| Magnetic flux | 260 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 8 mm |

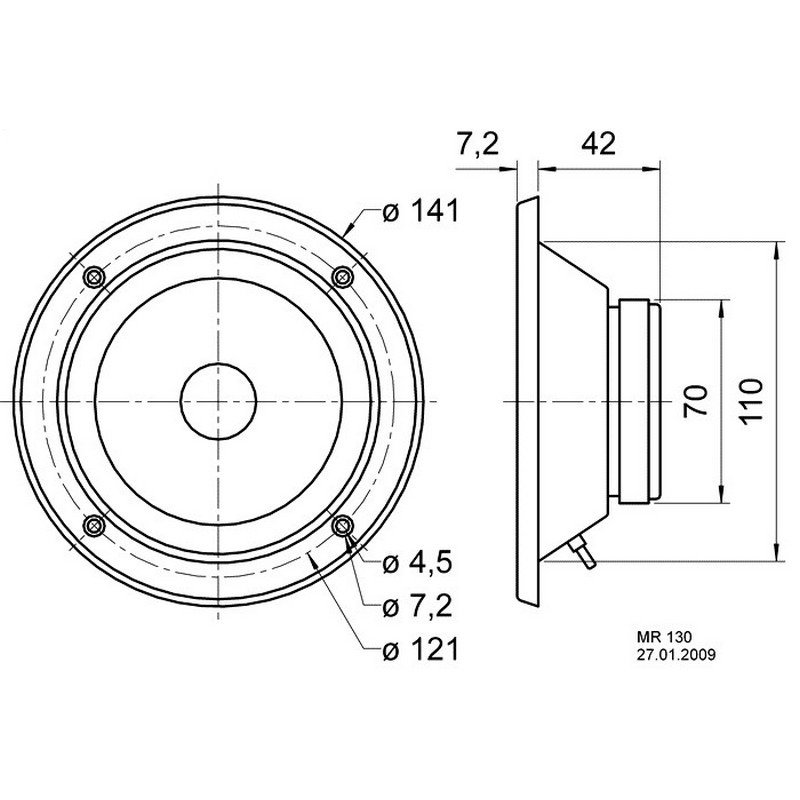

| Sound wall opening | 110 mm |
| Weight net | 0,55 % |
| DC resistance Rdc | 6.8 Ohm |
| Mechanical Q-factor Qms | 8,67 |
| Electric Q-factor Qes | 5,85 |
| Total Q factor Qts | 3,49 |
| Equivalent air yield volume Vas | 0,1 l |
| Effective membrane surface Sd | 70 cm2 |
| Dynamic moving mass Mms | 5 g |
| Drive factor Bxl | 4,3 Tm |
| Vibration coil inductance L | 0.4 mH |
| Connections | 4,8 x 0,8 mm (+) 2,8 x 0,8 mm (-) |
| Music loadability with high-pass filter | 100 W (12 dB/oct.; 800 Hz |
| Nominal load capacity with high-pass filter | 80 W (12 dB/oct; 800 Hz |
