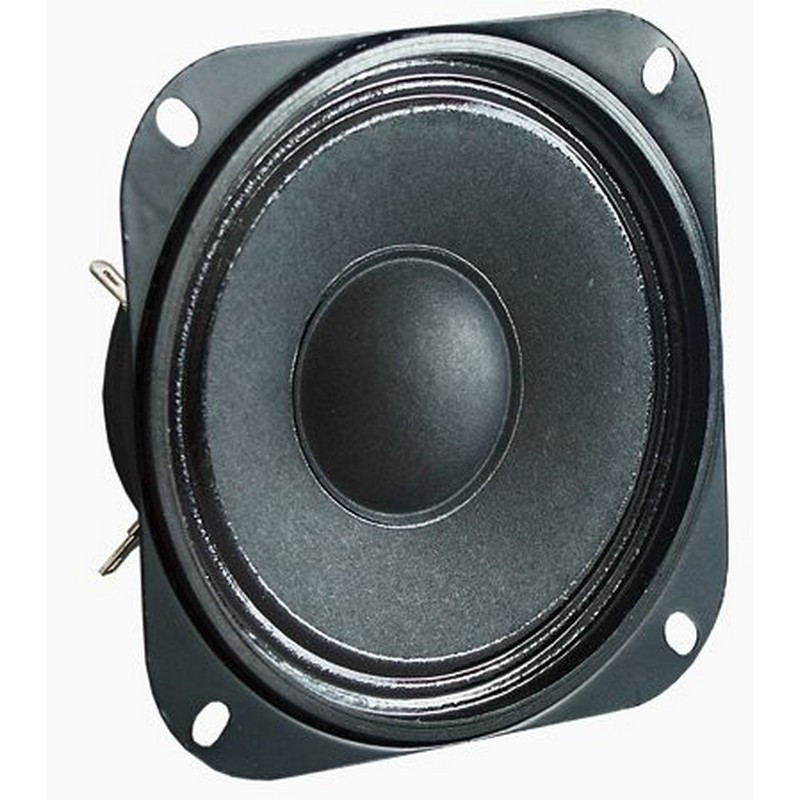

Visaton M 10 - 8 Ohm mid tone
100 mm (4")
Visaton M 10 - 8 Ohm mid tone
100 mm (4")
€15.27
Our previous price
€21.81
Save 30%
Tax included
Shipping excluded
4-0126
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
100 mm (4") for the frequency range between 1000 and 5000 Hz.
Due to the rear closed construction, a separate middle tone housing is eliminated.
Very good value for money.
Technical data
| Nominal load capacity with high-pass filter | 80 W (12 dB/oct; 800 Hz |
|---|---|
| Music loadability with high-pass filter | 100 W (12 dB/oct.; 800 Hz |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 450–13000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |
| Beam angle (-6 dB) | 90°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 700 Hz |
| Magnetic induction | 0,9 % |
| Magnetic flux | 230 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 6 mm |
| Sound wall opening | 95 mm |
| Weight net | 0,33 % |
