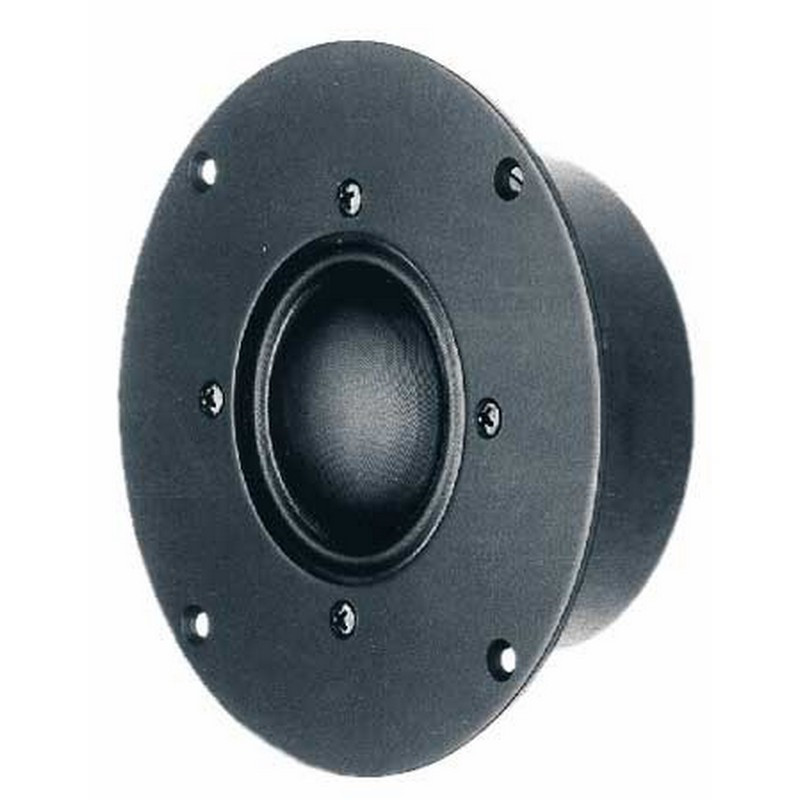

Visaton G 50 FFL - 8 Ohm midrange speaker
50 mm (2") High-end fabric cup
Visaton G 50 FFL - 8 Ohm midrange speaker
50 mm (2") High-end fabric cup
€108.95
Our previous price
€155.64
Save 30%
Tax included
Shipping excluded
4-0129
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
50 mm (2") High-end fabric cup with round front plate for the middle tone range between 800 and 7000 Hz.
The optimum calotte shape with damping coating, in conjunction with a tissue bead which has a particularly high damping, achieves a linear and partial vibration-free frequency response.
The strong magnetic drive and the oscillating coil cooled with ferrofluid guarantee both high efficiency and high load capacity.
Technical data
| Nominal load capacity with high-pass filter | 120 W (12 dB/oct; 800 Hz |
|---|---|
| Music loadability with high-pass filter | 180 W (12 dB/oct; 800 Hz |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 300–12000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

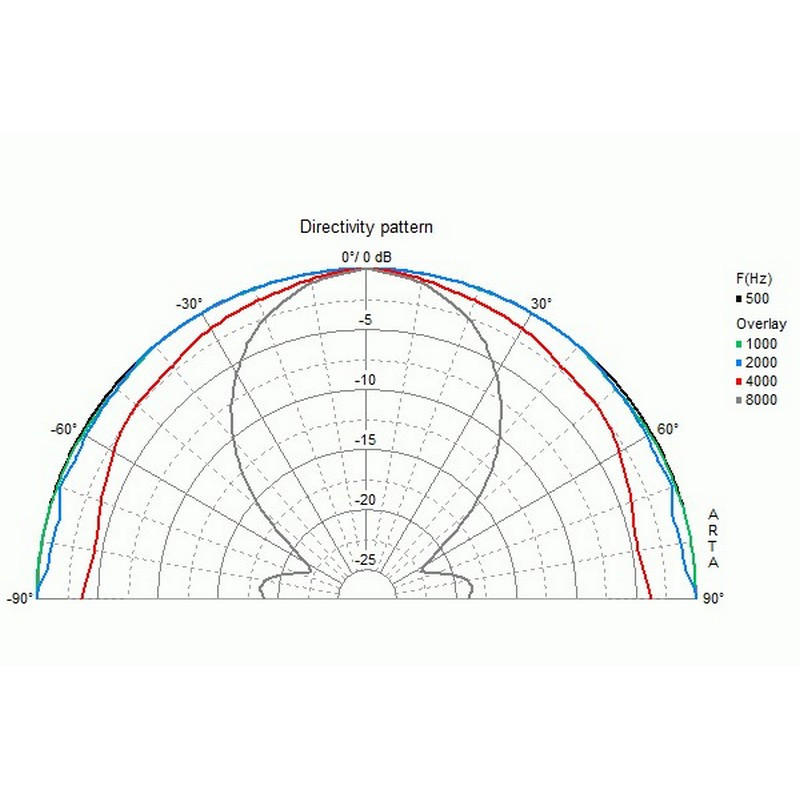

| Beam angle (-6 dB) | 180°/4000 Hz |
| Reaction frequency fs | 455 Hz |
| Magnetic induction | 1.4 T |
| Magnetic flux | 880 μWb |
| Upper pole plate height | 3,5 mm |
| Oscillating coil diameter | 50 mm |
| Winding height | 3 mm |
| Sound wall opening | 106 mm |
| Weight net | 1.0 kg |
| DC resistance Rdc | 6.4 Ohm |
| Mechanical Q-factor Qms | 0,48 |
| Electric Q-factor Qes | 0,67 |
| Total Q factor Qts | 0,28 |
| Equivalent air yield volume Vas | 0,037 |
| Effective membrane surface Sd | 20 cm2 |
| Dynamic moving mass Mms | 1,2 g |
| Vibration coil inductance L | 0,16 mH |
