Visaton DR 45 N - 8 Ohm midrange driver

Professional 1" driver

€387.44
Our previous price €553.48
Save 30%
Tax included Shipping excluded
Medium tones
4-0130
Quantity
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

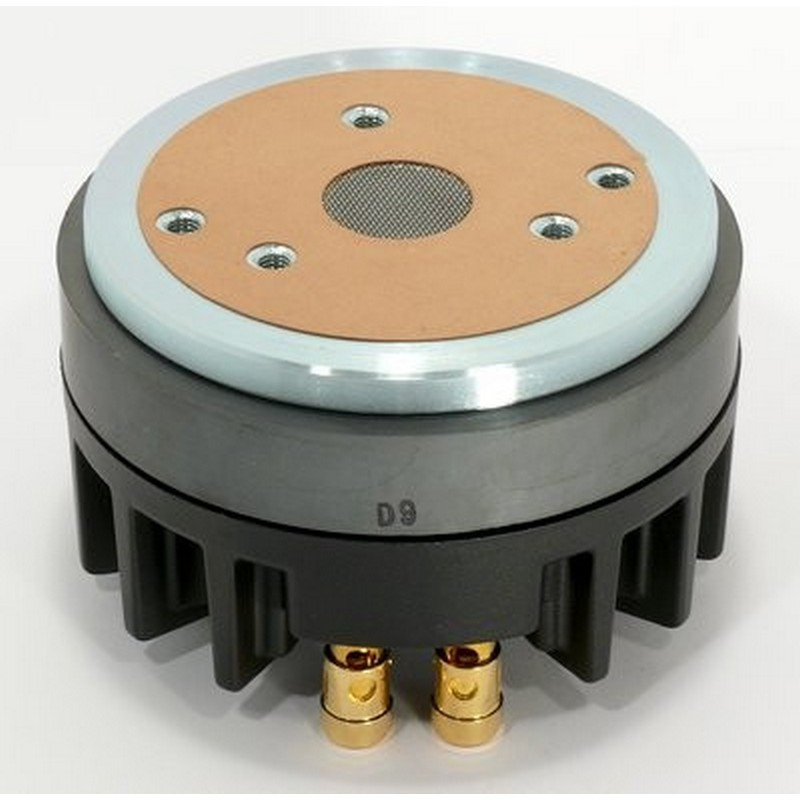

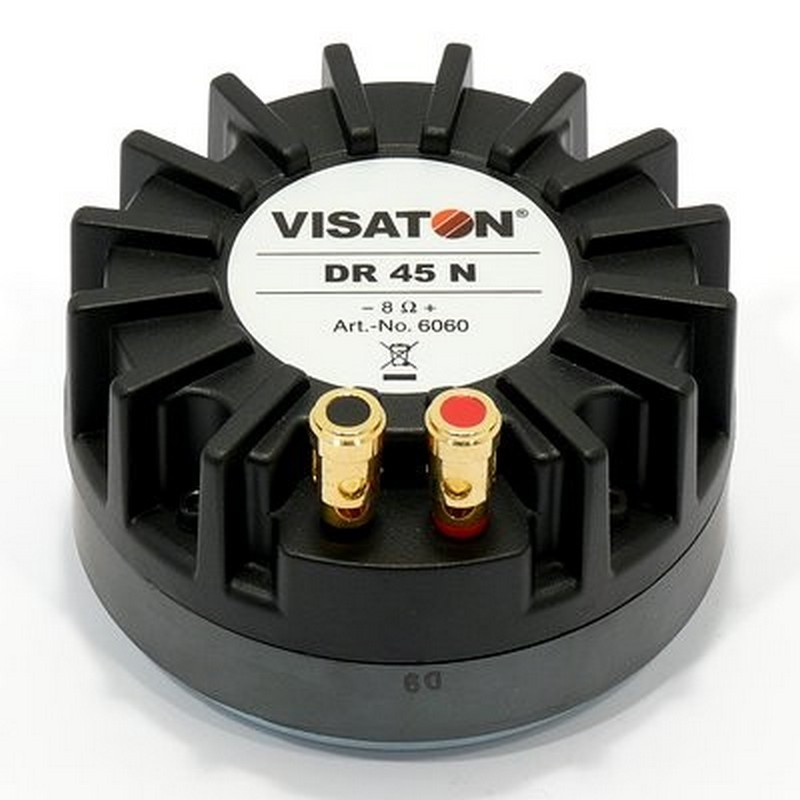

Professional 1" driver with titanium calotte, which can be used together with the exponential horn M 300 in the middle tone range from 800 Hz.

The 40mm coil and the bulging magnet system guarantee this driver-horse combination the connection of enormous load capacity required for the professional sector with extremely high efficiency.

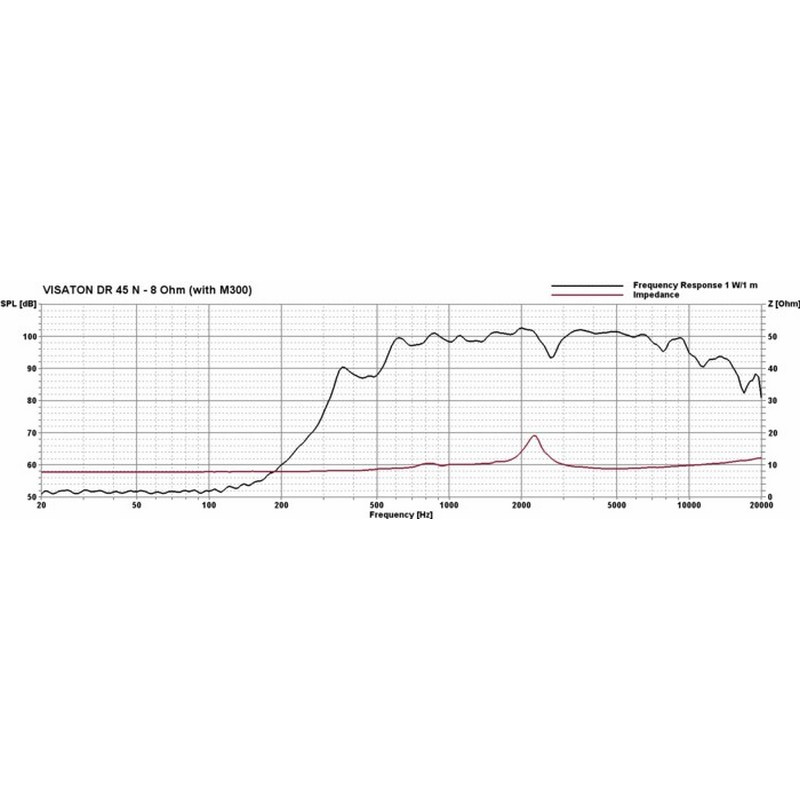

The very linear frequency response of this driver-horn combination also offers a variety of applications in the high-end range.

Technical data

Nominal load capacity with high-pass filter 100 W (12 dB/oct.; 1000 Hz
Music loadability with high-pass filter 150 W (12 dB/oct; 1000 Hz
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) 500–12000 Hz
Medium sound pressure level 102 dB (1 W/1 m)
Reaction frequency fs 600 Hz
Magnetic induction 1.55 T
Magnetic flux 90 μWb
Oscillating coil diameter 40 mm
Weight net 2.8 kg
DC resistance Rdc 6.2 Ohm
Vibration coil inductance L 0,1 mH
4-0130
New

Manufacturer information

Registered Trade Name: VISATON GmbH & Co. KG
Registered Trade mark: Visaton
Ohligser Str. 29-31
42781 Haan
Germany
Email: visaton@visaton.com
Phone: +49 (0) 2129 552-0
Responsible Person:

Geschäftsführer Ralph Schukat
