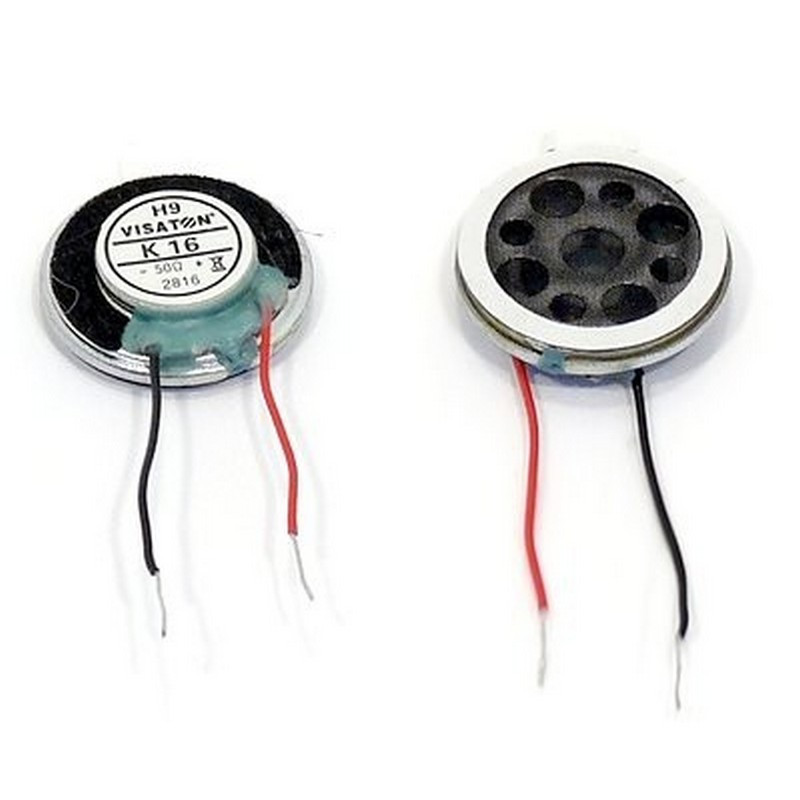

Visaton K 16 - 50 Ohm small speaker
1.6 cm (0.63") small speaker
Visaton K 16 - 50 Ohm small speaker
1.6 cm (0.63") small speaker
€4.46
Our previous price
€6.37
Save 30%
Tax included
Shipping excluded
4-0159
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

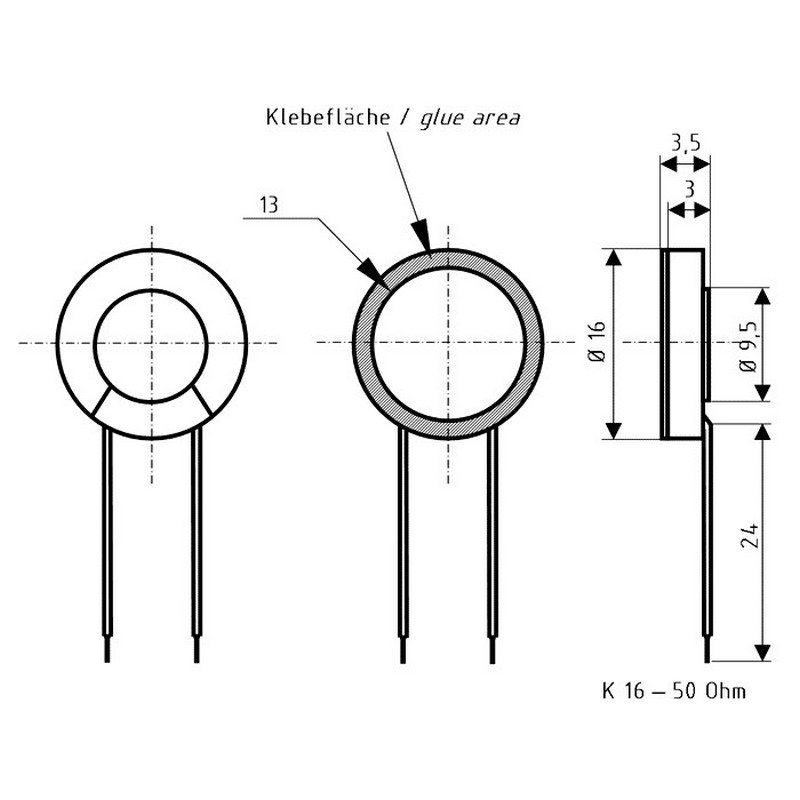

1.6 cm (0.63") small speaker with very small dimensions and an adhesive surface attached at the front.
The connection can be made via already insulated cables.
Applications
- Smallest applications
- Model construction
- Signal output
Technical data
| Rated load capacity | 0,5 W |
|---|---|
| Music loading | 1 W |
| Nominal impedance Z | 50 Ohm |

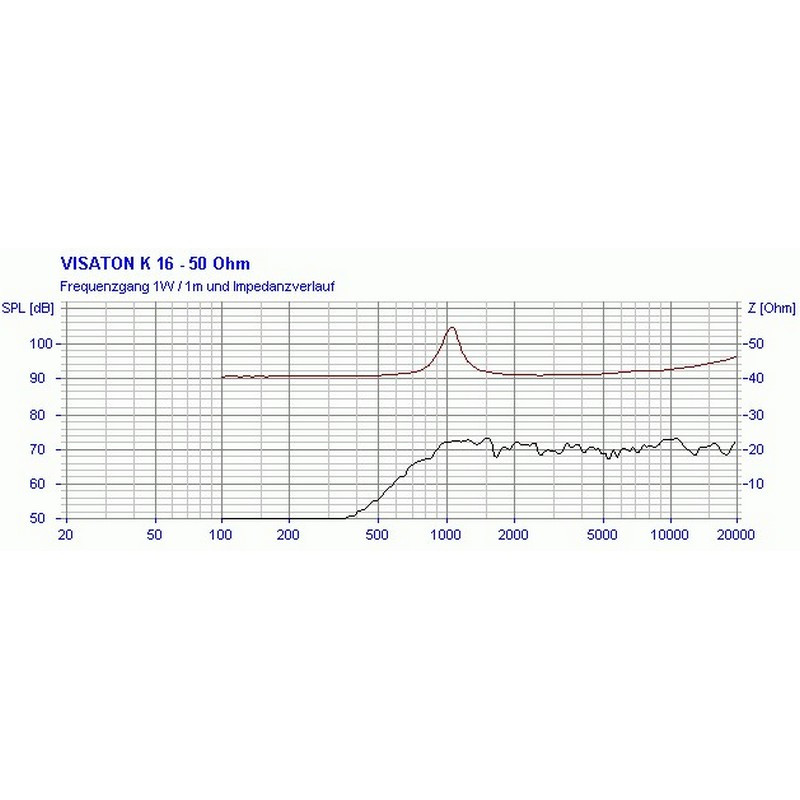

| Transmission range (-10 dB) | 700–20000 Hz |
| Medium sound pressure level | 71 dB (1 W/1 m) |
| Reaction frequency fs | 1005 Hz |
| Oscillating coil diameter | 8 mm |
| Sound wall opening | 13 mm |
| Weight net | 0,002 kg |
| Length of connection cable | 24 mm |
| Temperature range | –20 ... 65 °C |
