Visaton K 40 - 8 Ohm small speaker
4 cm (1.6") small speaker
Visaton K 40 - 8 Ohm small speaker
4 cm (1.6") small speaker
€4.89
Our previous price
€6.99
Save 30%
Tax included
Shipping excluded
4-0173
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

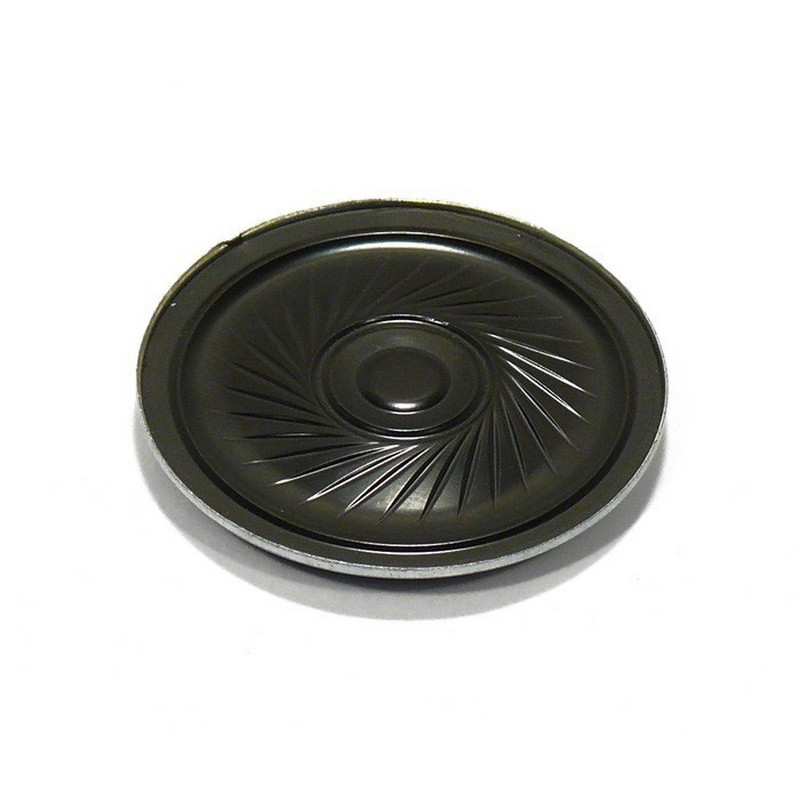

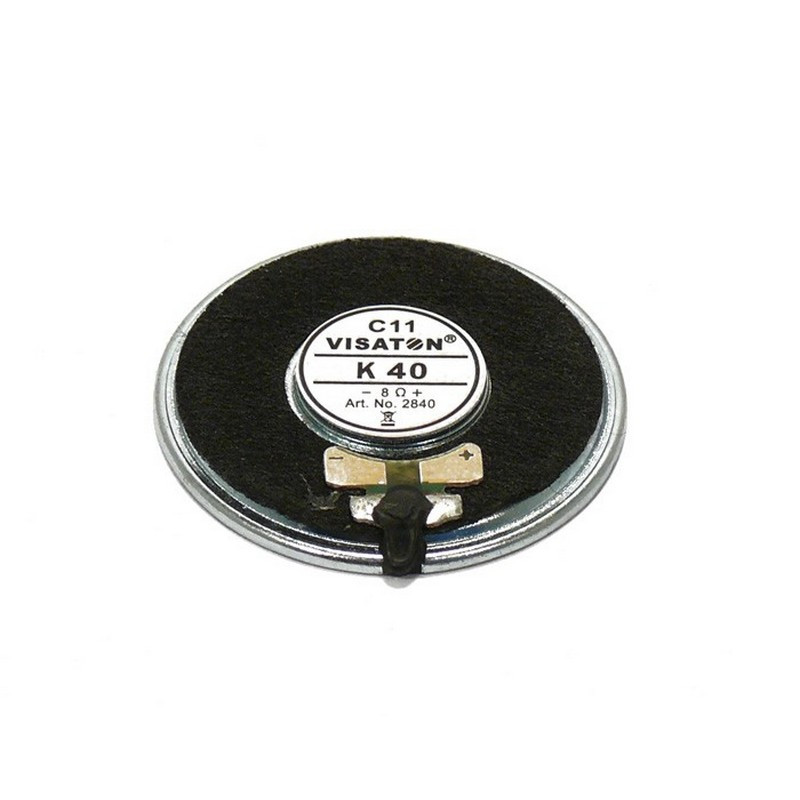

4 cm (1.6") small speaker with plastic membrane (Mylar) and metal basket.
Extremely small size, therefore well suited for signal output in devices and installations where little space is available.
Applications
- voice and signal output in internal and external devices
Technical data
| Rated load capacity | 1 W |
|---|---|
| Music loading | 2 W |
| Nominal impedance Z | 8 Ohm |

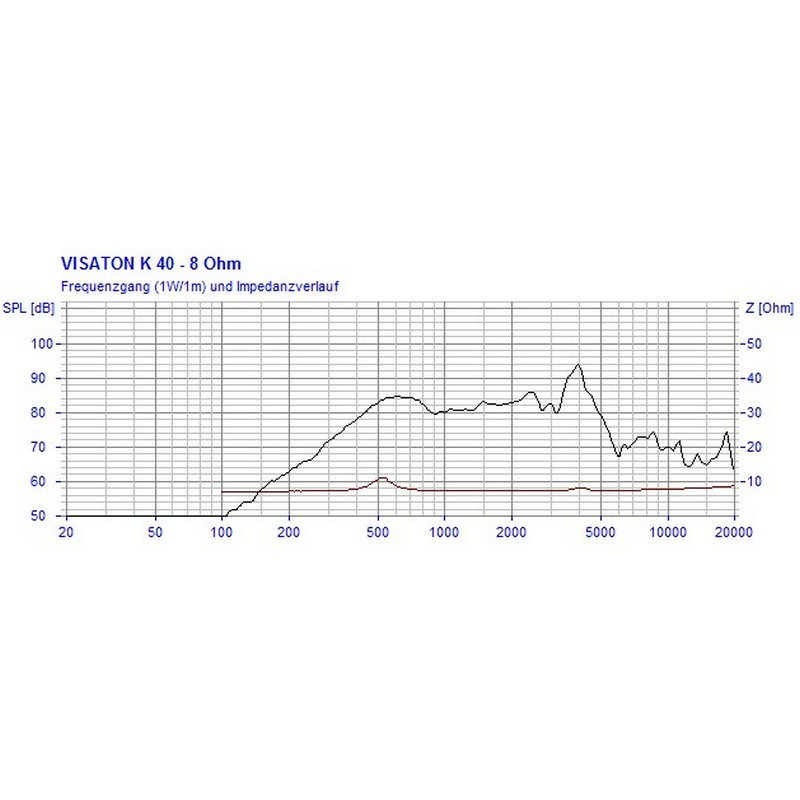

| Transmission range (-10 dB) | 350–6000 Hz |
| Medium sound pressure level | 83 dB (1 W/1 m) |
| Reaction frequency fs | 520 Hz |
| Oscillating coil diameter | 13.5 mm |
| Winding height | 1.8 mm |

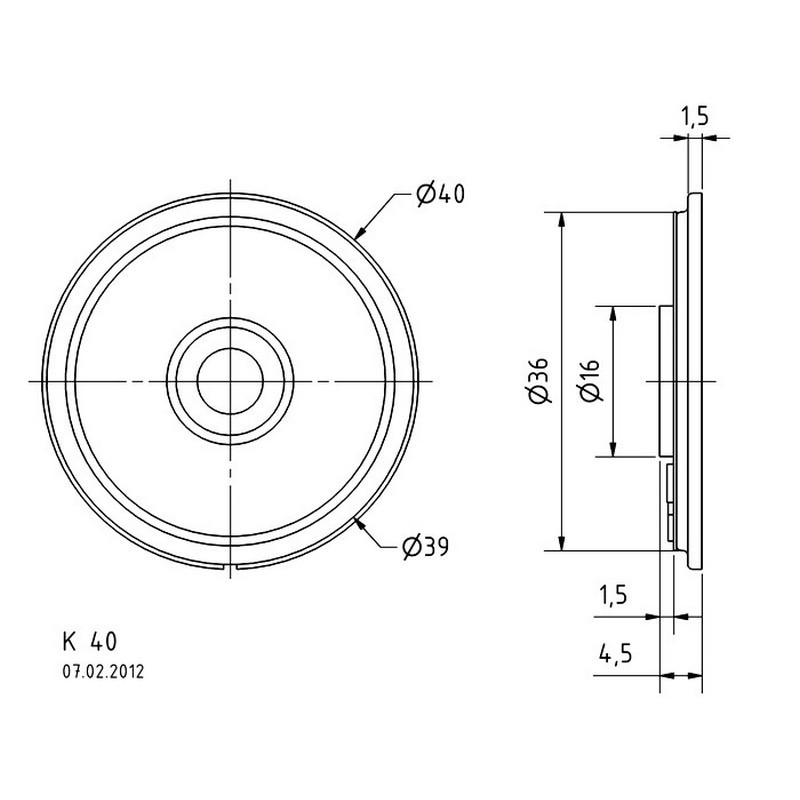

| Sound wall opening | 36.5 mm |
| Weight net | 0,01 kg |
| Protection class | IP 65 *) |
| Temperature range | −40 – 70 °C |
