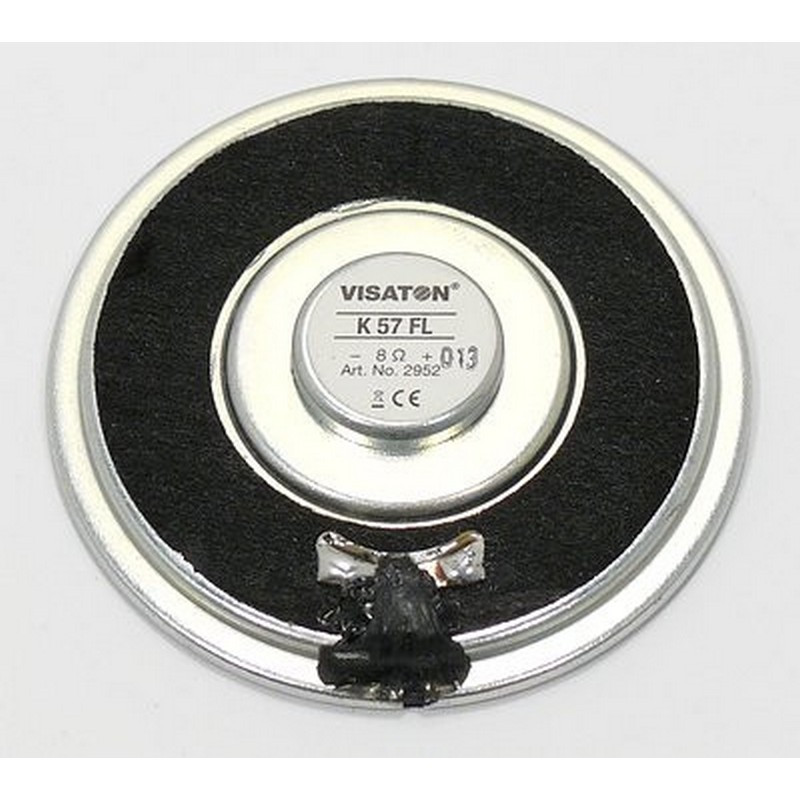

Visaton K 57 FL - 8 Ohm small speaker
5 cm (2") miniature speaker
Visaton K 57 FL - 8 Ohm small speaker
5 cm (2") miniature speaker
€5.01
Our previous price
€7.15
Save 30%
Tax included
Shipping excluded
4-0181
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

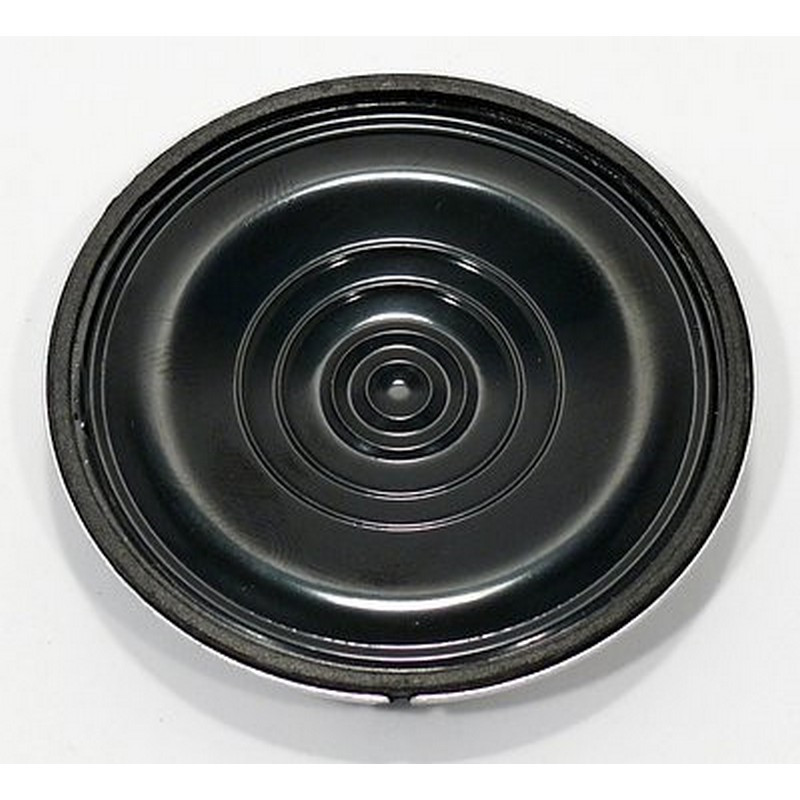

5.7 cm (2.2") small speaker with plastic membrane (Mylar) and metal basket.
Extremely flat design, therefore suitable for signal output in devices and installations in which the installation depth is limited.
The connection takes place via solder joints mounted on the rear.
*) IP protection class for front side when installed in a sealed housingTechnical data
| Rated load capacity | 1 W |
|---|---|
| Music loading | 2 W |
| Nominal impedance Z | 8 Ohm |

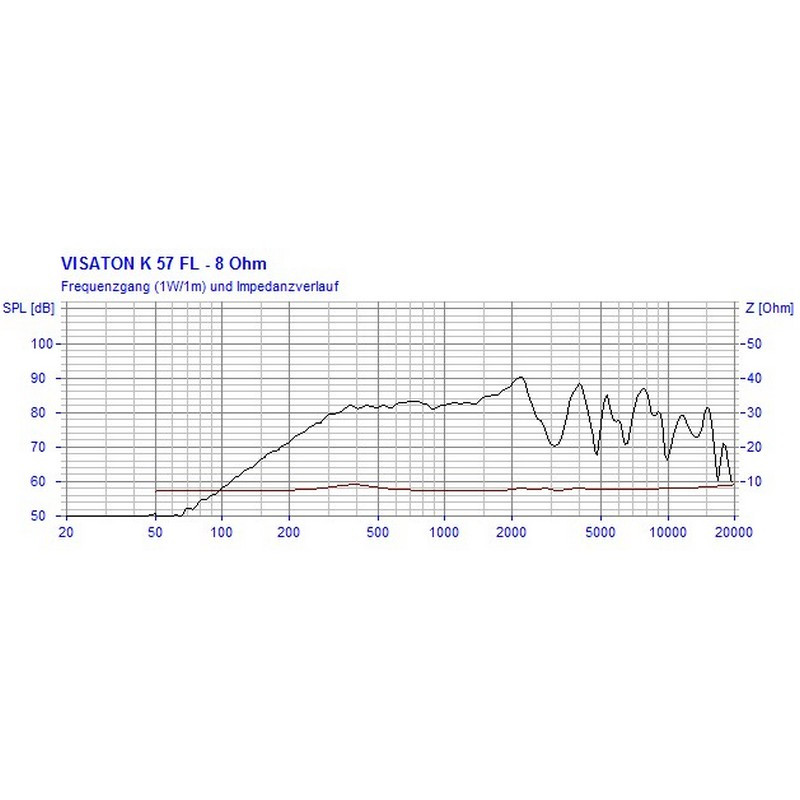

| Transmission range (-10 dB) | 220–16000 Hz |
| Medium sound pressure level | 83 dB (1 W/1 m) |
| Reaction frequency fs | 350 Hz |
| Oscillating coil diameter | 14 mm |
| Winding height | 1.5 mm |

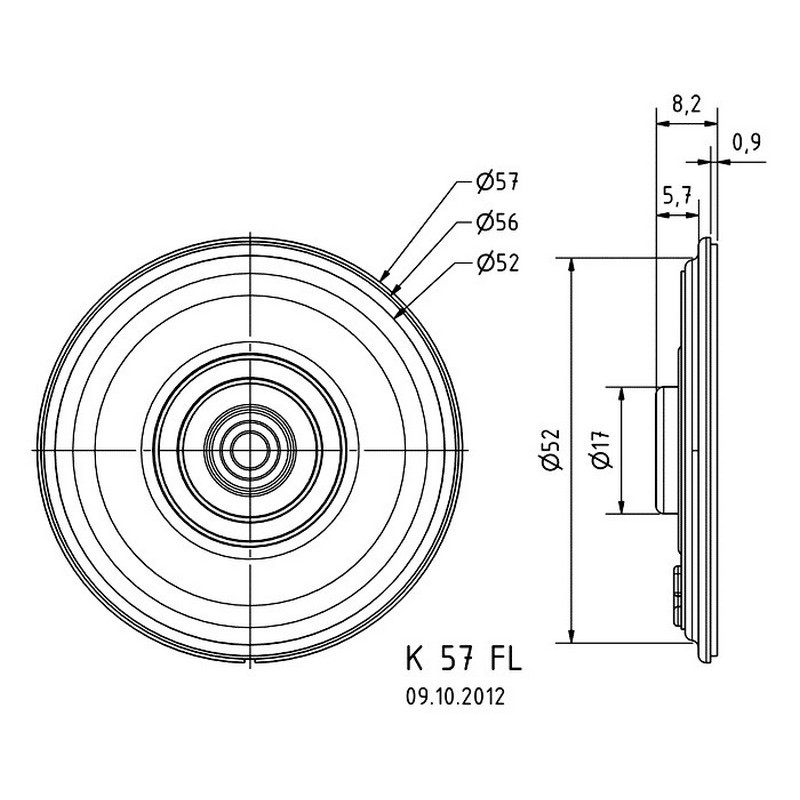

| Sound wall opening | 52 mm |
| Weight net | 0,18 kg |
| Protection class | IP 65 *) |
