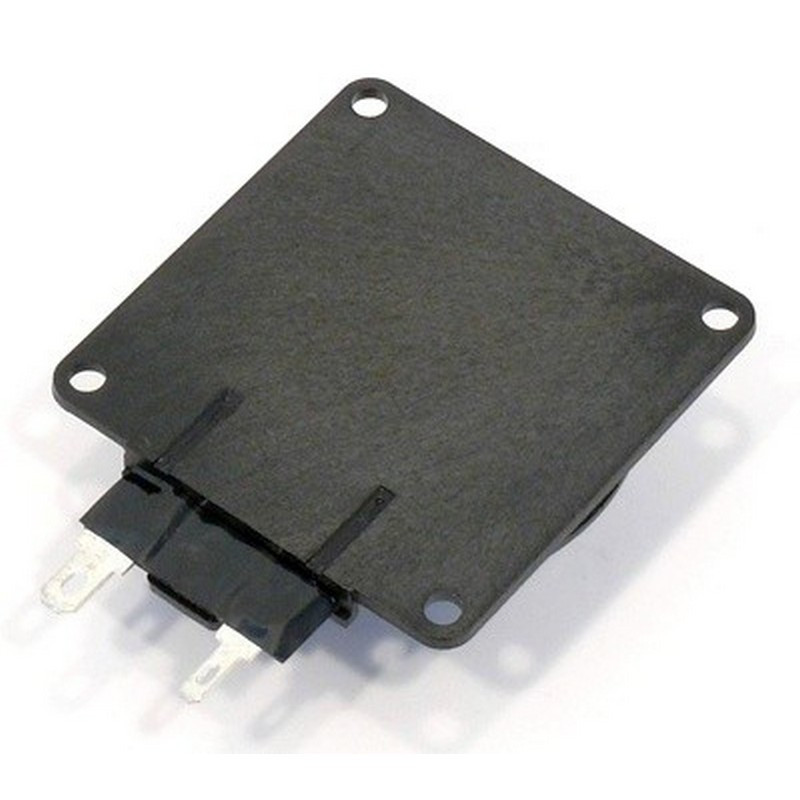

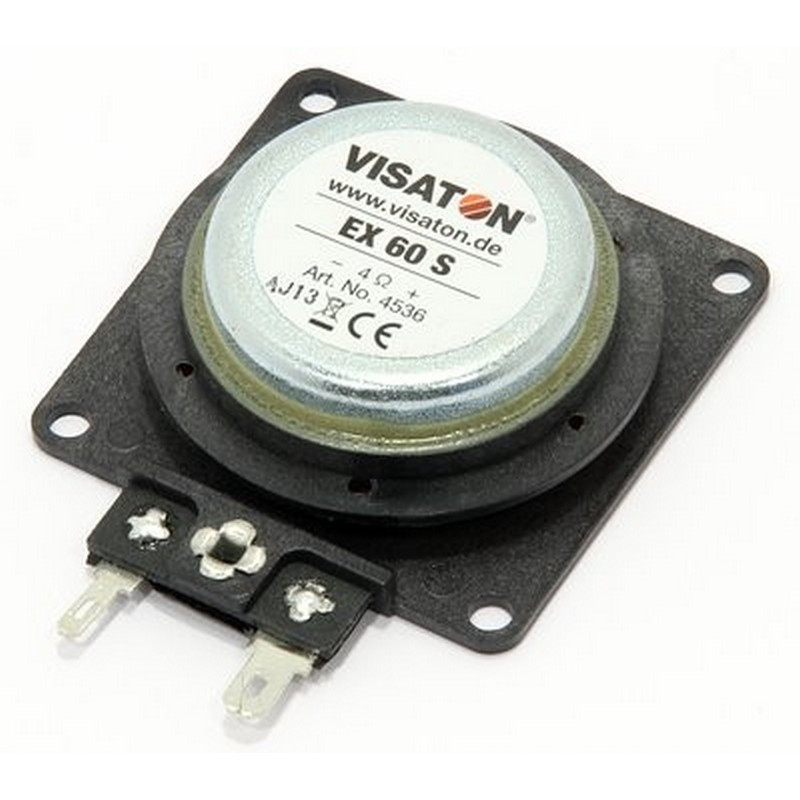

Visaton EX 60 S - 4 Ohm body sound transducer
Electrodynamic exciter
Visaton EX 60 S - 4 Ohm body sound transducer
Electrodynamic exciter
€56.74
Our previous price
€81.06
Save 30%
Tax included
Shipping excluded
4-0220
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Electrodynamic exciter for excitation of plates to bending wave vibrations.
The exciter can be fastened on the surface of the plate to be excited by adhesive or screws.
*) Maximum long-term input power according to DIN EN 60268-5
Applications
- Signal output in applications of all kinds in which no visible loudspeakers can be installed for design reasons or for protection against environmental influences or vandalism.
Technical data
| Music loading | 25 W *) |
|---|---|
| Nominal impedance Z | 4 Ohms |
| Oscillating coil diameter | 32.5 mm |
| Weight net | 0,12 kg |
| Connections | 4,8 x 0,8 mm (+) 2,8 x 0,8 mm (-) |
| Temperature range | −25 ... 70 °C |
