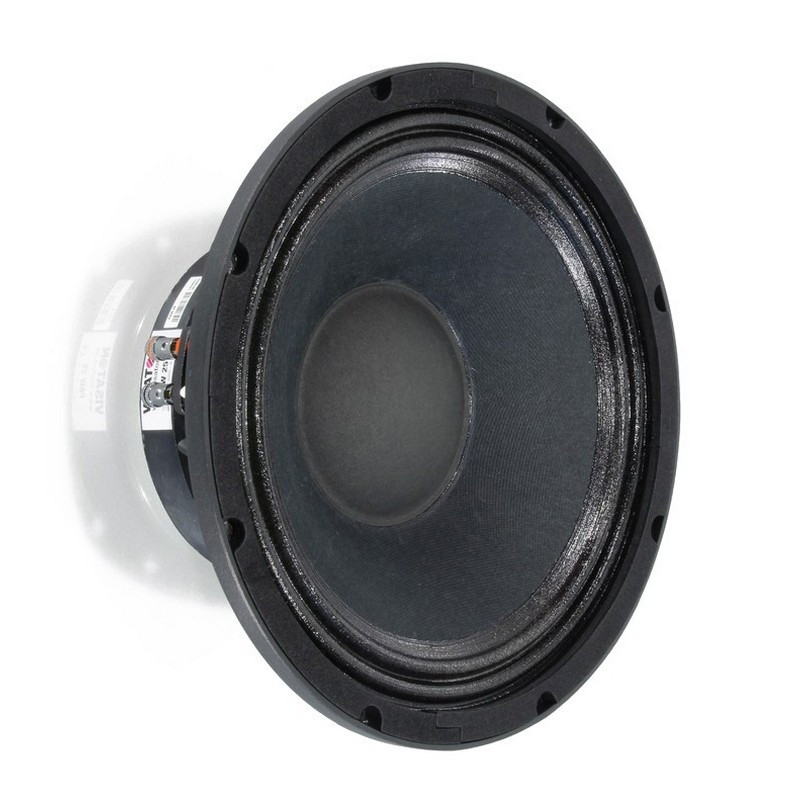

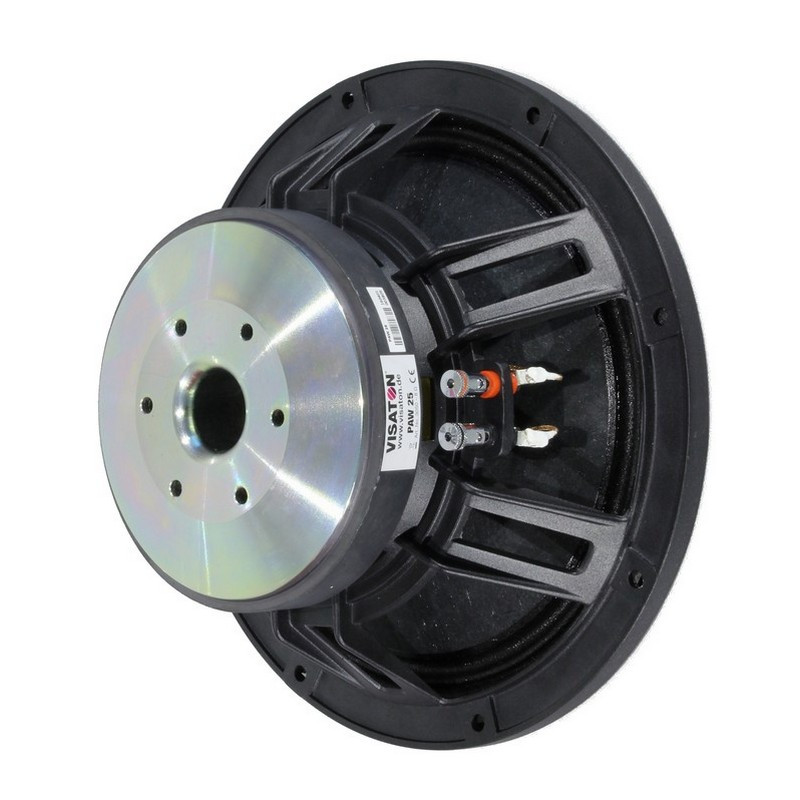

Visaton PAW 25 - 8 Ohm bass driver

25 cm (10") Trench

€105.41
Our previous price €150.58
Save 30%
Tax included Shipping excluded
Subwoofer
4-0097
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

25 cm (10") Trench for PA systems.

Characteristics

- die casting basket

- Paper membrane

- 65 mm coil for high load capacity

- Til coil carrier

- Aerated centering pins

- Additional ventilation air gap (6x hole)

- 28 mm pole core bore

- M-shaped folded textile bead for large strokes

- Connex / cotton centering pine

- EVA seal

- Ferrite magnet

Case recommendations

Volume/principle BR-tube fb fc)/QTC
12 l/closed  -  - 110 Hz/0.71
26 l/bass reflex 2 x BR 15.34 57 Hz  -

Technical data

Membrane flexibility Cm 0,24 mm/N
Rated load capacity 300 W
Music loading 450 W
Nominal impedance Z 8 Ohm

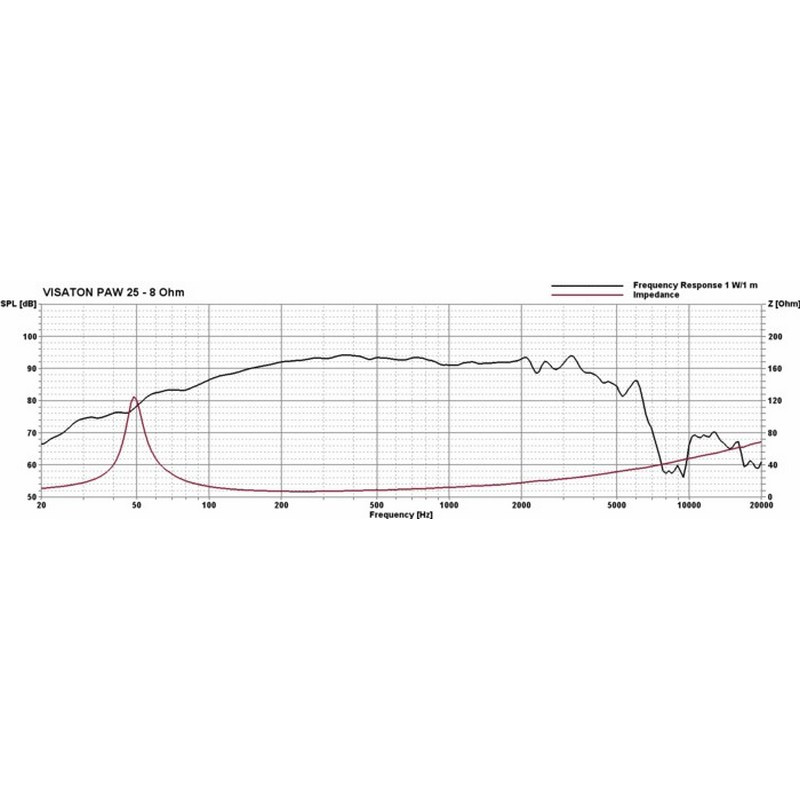

Transmission range (-10 dB) fu–4200 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 92 dB (2.83 V/1 m)
Maximum linear stroke +/-3,5 mm
Border deflection +/-8 mm
Reaction frequency fs 52 Hz
Upper pole plate height 8 mm
Oscillating coil diameter 65 mm
Winding height 15 mm

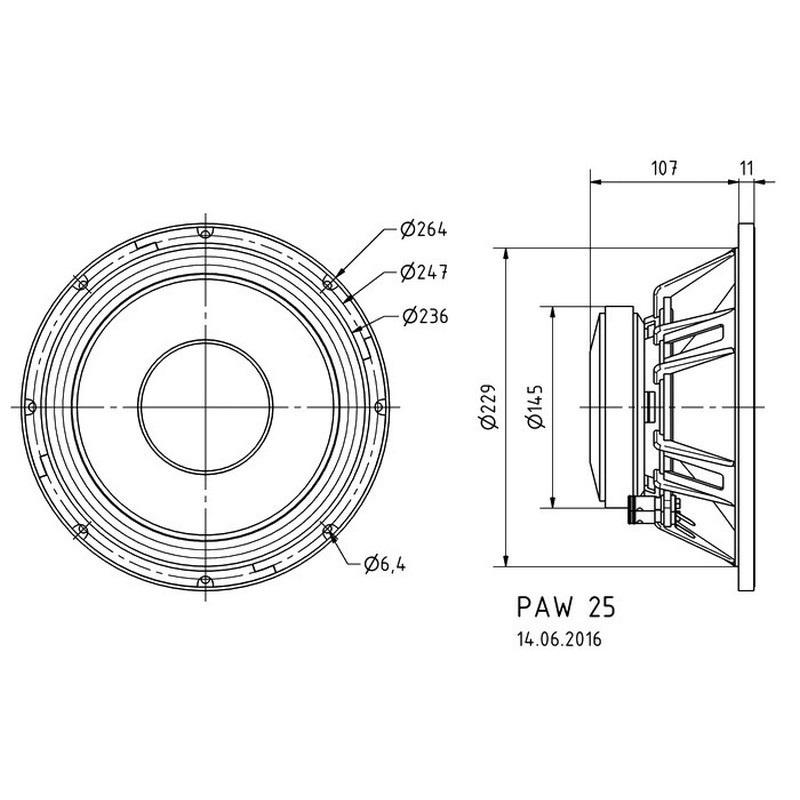

Sound wall opening 230 mm
Weight net 3,61 kg
DC resistance Rdc 6.5 Ohm
Mechanical Q-factor Qms 9,59
Electric Q-factor Qes 0,34
Total Q factor Qts 0,33
Equivalent air yield volume Vas 44 l
Effective membrane surface Sd 353 cm2
Dynamic moving mass Mms 37.6 g
Drive factor Bxl 15,6 tonnes
Vibration coil inductance L 0,9 mH
