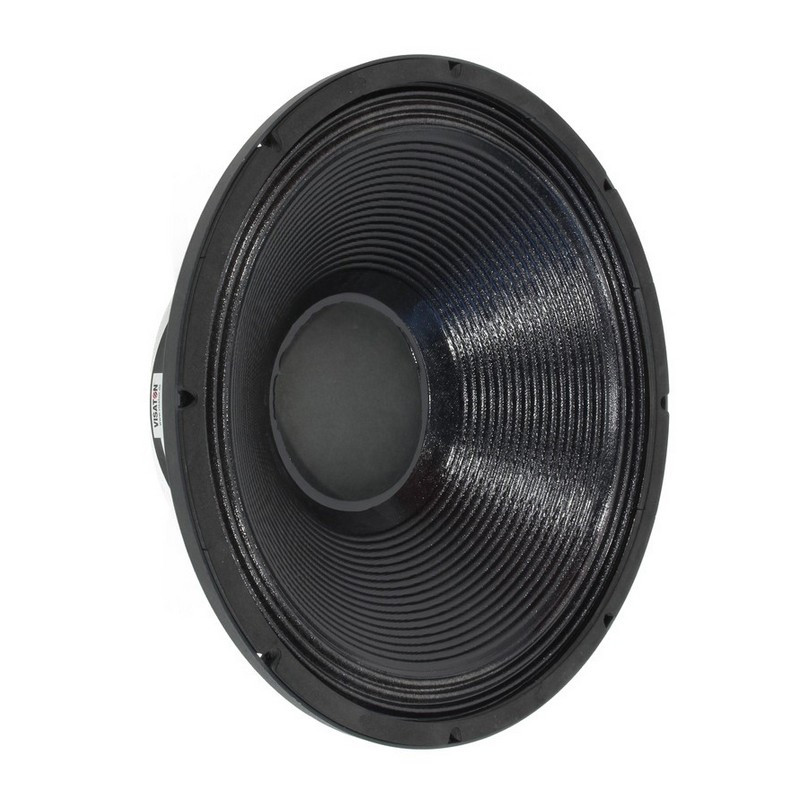

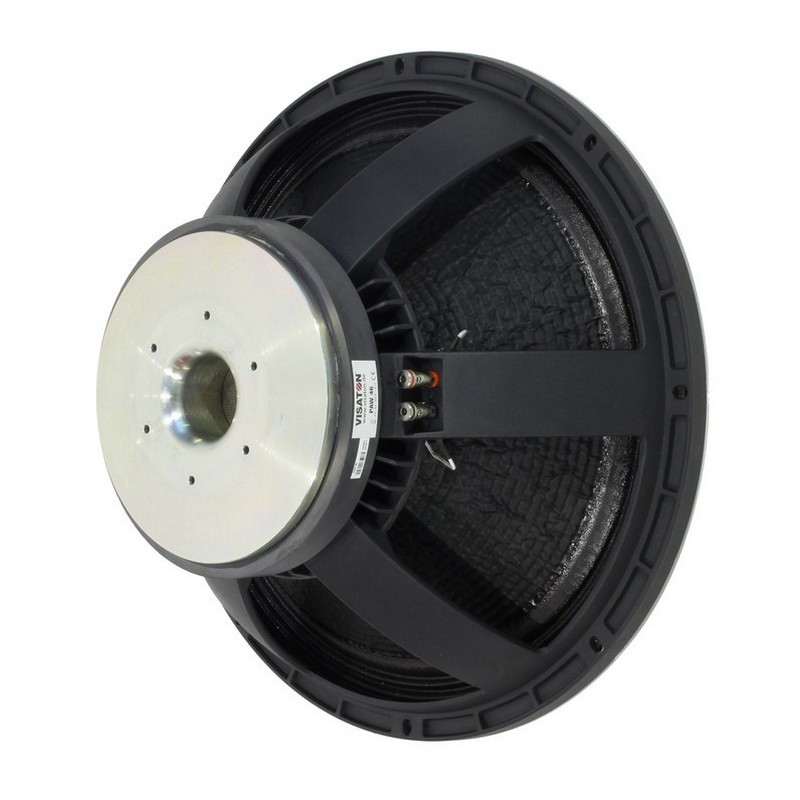

Visaton PAW 46 - 8 Ohm bass driver
46 cm (18") tweeter
Visaton PAW 46 - 8 Ohm bass driver
46 cm (18") tweeter
€317.67
Our previous price
€453.81
Save 30%
Tax included
Shipping excluded
4-0099
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
46 cm (18") tweeter for PA systems.
Characteristics
- die casting basket
- Reinforced paper membrane
- 100 mm coil for high load capacity
Til coil carrier
- Additional ventilation air gap (6x hole)
55 mm pole core bore
- M-shaped folded textile bead for large strokes
- Nomex centering pinne
- EVA seal
- Ferrite magnet
Case recommendations
| Volume/principle | BR-tube | fb | fc)/QTC |
| 120 l/closed | - | - | 56 Hz/0.71 |
| 150 l/bass reflex | 6 x BR 25.50 | 37 Hz | - |
| 273 l/bass reflex | 400 cm2 x 27 cm | 30 Hz | - |
Technical data
| Membrane flexibility Cm | 0,16 mm/N |
|---|---|
| Rated load capacity | 700 W |
| Music loading | 1000 W |
| Nominal impedance Z | 8 Ohm |

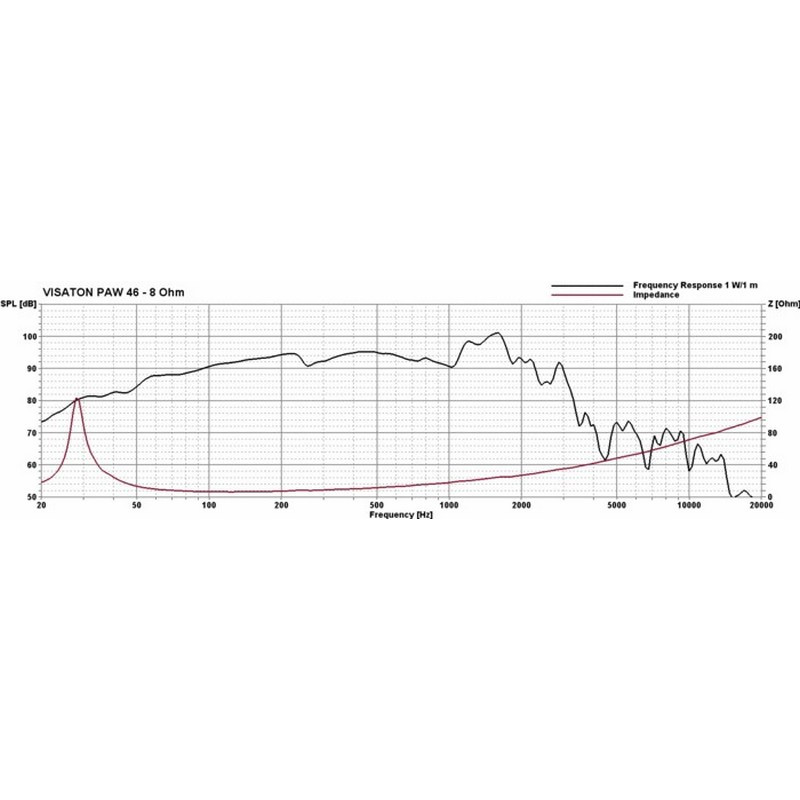

| Transmission range (-10 dB) | fu–3200 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 93 dB (2.83 V/1 m) |
| Maximum linear stroke | +/-4.9 mm |
| Border deflection | +/−10 mm |
| Reaction frequency fs | 29 Hz |
| Upper pole plate height | 12 mm |
| Oscillating coil diameter | 100 mm |
| Winding height | 21.8 mm |

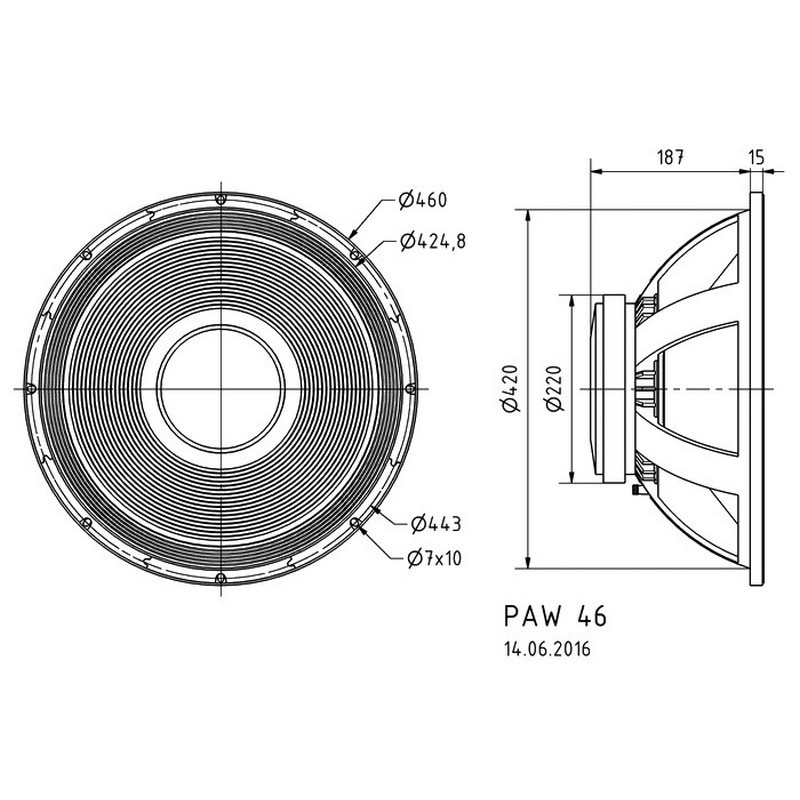

| Sound wall opening | 422 mm |
| Weight net | 11.5 kg |
| DC resistance Rdc | 1 ohm |
| Mechanical Q-factor Qms | 8,97 |
| Electric Q-factor Qes | 0,38 |
| Total Q factor Qts | 0,36 |
| Equivalent air yield volume Vas | 325 l |
| Effective membrane surface Sd | 1210 cm2 |
| Dynamic moving mass Mms | 186 g |
| Drive factor Bxl | 23,6 tonnes |
| Vibration coil inductance L | 1.5 mH |
