Visaton WS 17 E - 8 Ohm HiFi tweeter
17 cm (6.5") HiFi tweeter
Visaton WS 17 E - 8 Ohm HiFi tweeter
17 cm (6.5") HiFi tweeter
€26.57
Our previous price
€37.96
Save 30%
Tax included
Shipping excluded
4-0116
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

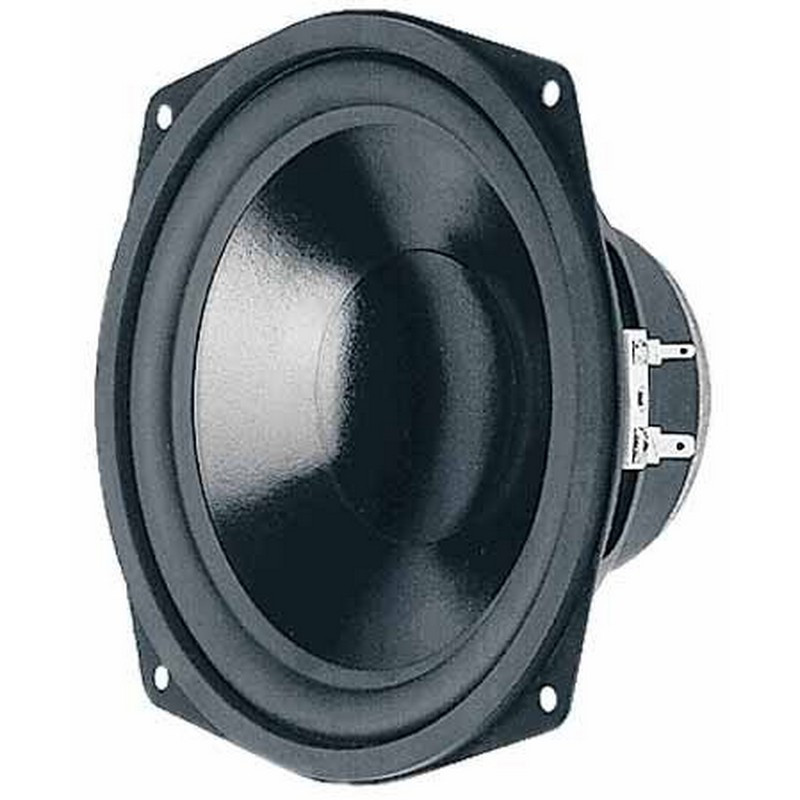

17 cm (6.5") HiFi tweeter with coated paper membrane, elastic rubber bead and inverse dust protection cup.
By balanced frequency response, it can also be used as a bass driver in 4-way boxes.
Because of the special basket shape, it can be used especially as a replacement for many HiFi terminal boxes.
Technical data
| Rated load capacity | 60 W |
|---|---|
| Music loading | 90 W |
| Nominal impedance Z | 8 Ohm |

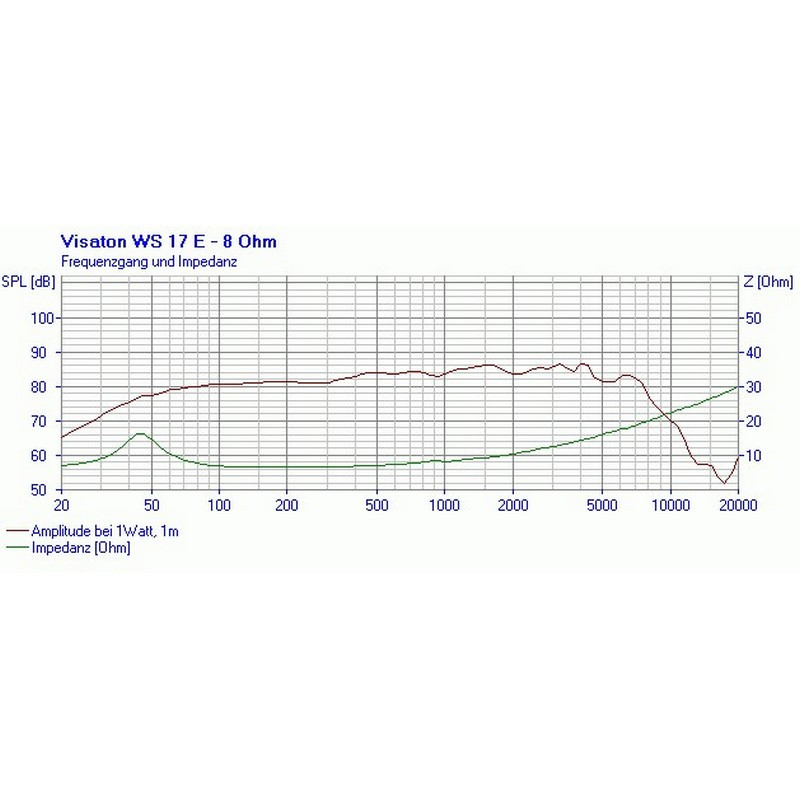

| Transmission range (-10 dB) | fu–7000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 88 dB (1 W/1 m) |

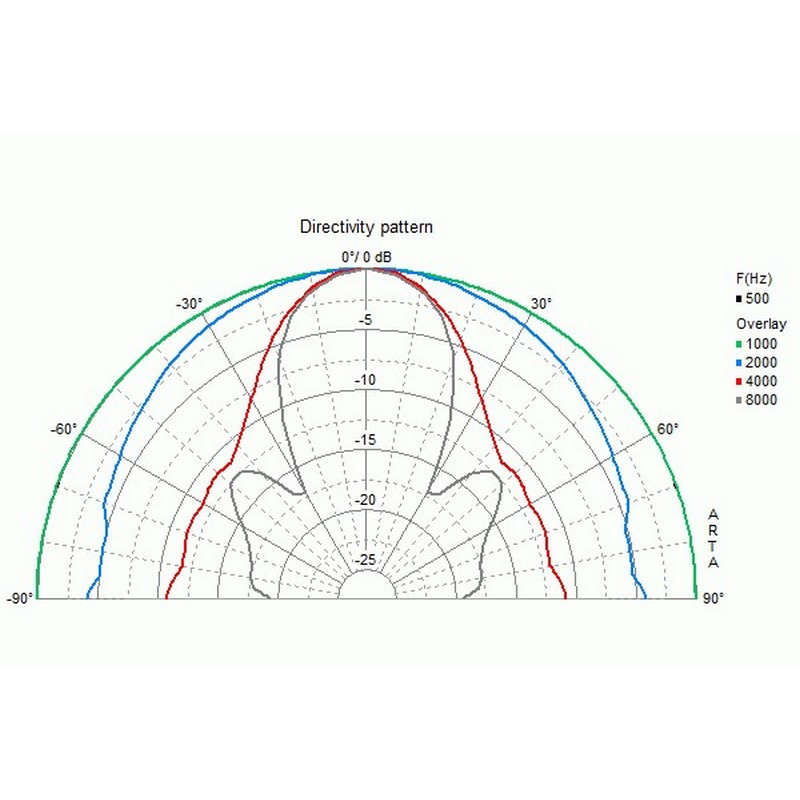

| Beam angle (-6 dB) | 47°/4000 Hz |
| Border deflection | +/-6.5 mm |
| Reaction frequency fs | 45 Hz |
| Magnetic induction | 0,8 T |
| Magnetic flux | 314 μWb |
| Upper pole plate height | 5 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 12 mm |
| Sound wall opening | 150 mm |
| Weight net | 0,97 kg |
| DC resistance Rdc | 5.8 Ohm |
| Mechanical Q-factor Qms | 2,2 |
| Electric Q-factor Qes | 1,28 |
| Total Q factor Qts | 0,81 |
| Equivalent air yield volume Vas | 22 |
| Effective membrane surface Sd | 143 cm2 |
| Dynamic moving mass Mms | 16 g |
| Drive factor Bxl | 3,9 T m |
| Vibration coil inductance L | 0,9 mH |
| Connections | 5,2 x 0.8 mm (+) 2,8 x 0.8 mm (−) |
