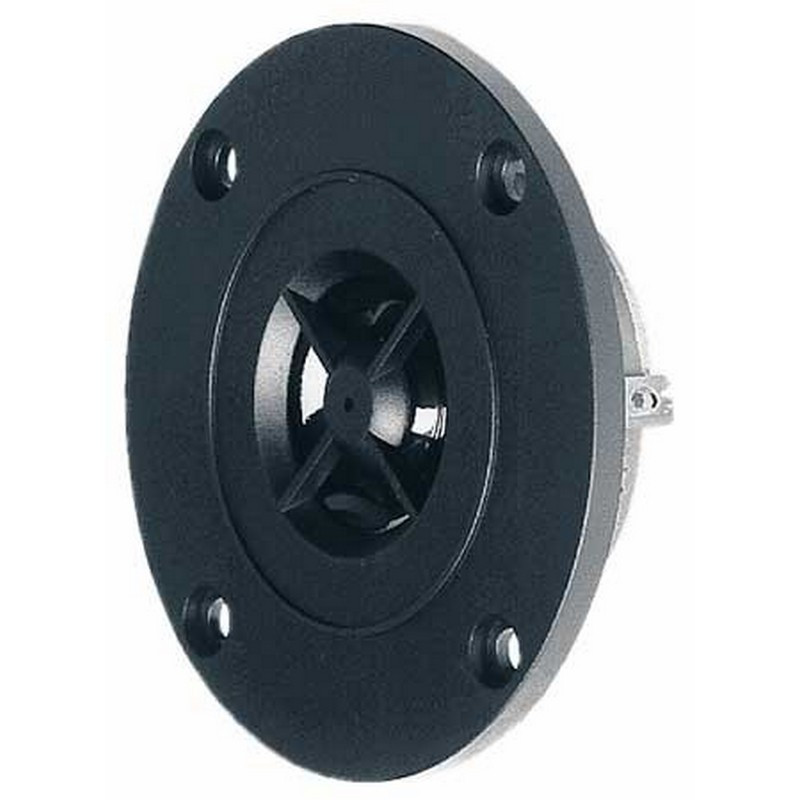

Visaton DTW 72 - 8 Ohm tweeter
14 mm (0.6") Polycarbonate Calotte
Visaton DTW 72 - 8 Ohm tweeter
14 mm (0.6") Polycarbonate Calotte
€16.53
Our previous price
€23.61
Save 30%
Tax included
Shipping excluded
4-0137
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
14 mm (0.6") Polycarbonate Calotte for the high tone range from 4000 Hz.

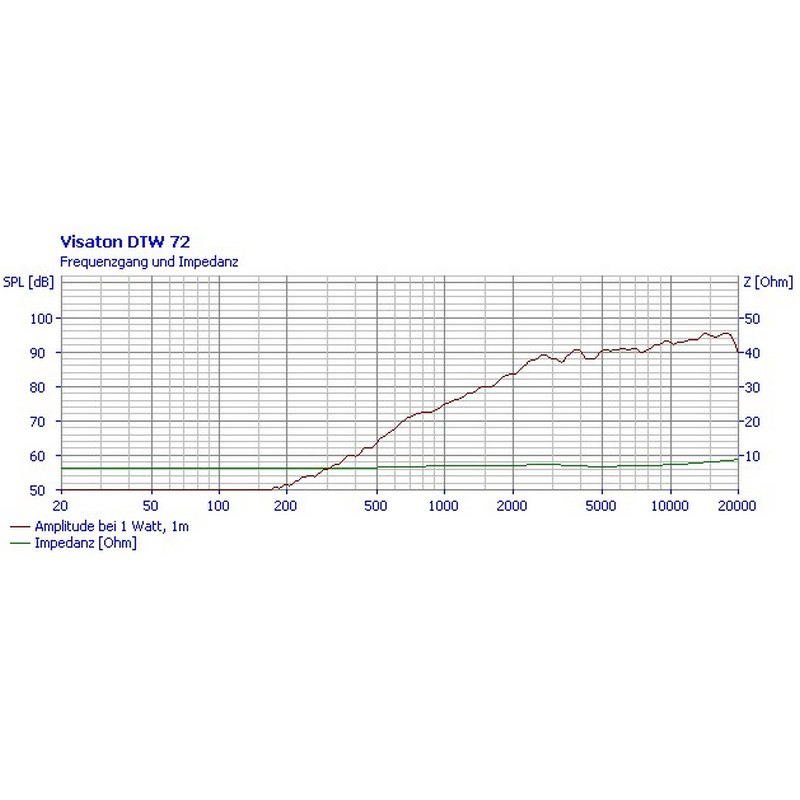

Balanced frequency response and excellent round beam behavior.
Due to the strong magnetic drive and the ultra-light diaphragm with ferrofluid-cooled oscillating coil, a high load capacity with good efficiency can be achieved.
Technical data
| Nominal load capacity with high-pass filter | 70 W (12 dB/oct; 5000 Hz |
|---|---|
| Music loadability with high-pass filter | 110 W (12 dB/oct; 5000 Hz |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 2200–23000 Hz |
| Medium sound pressure level | 91 dB (1 W/1 m) |

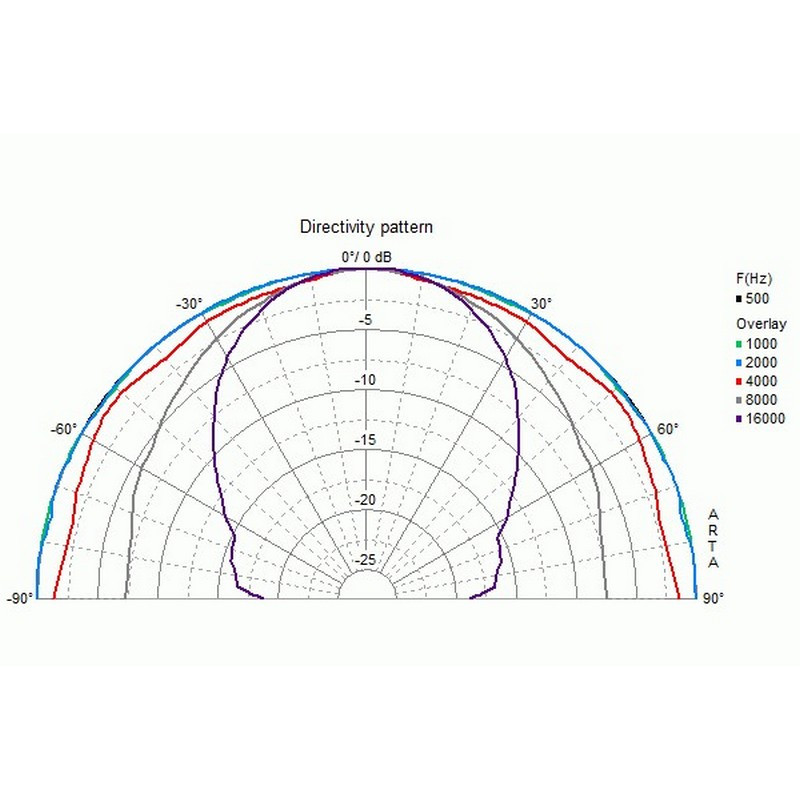

| Beam angle (-6 dB) | 125°/8000 Hz |
| Reaction frequency fs | 3000 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 65 μWb |
| Upper pole plate height | 2 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 2 mm |
| Sound wall opening | 50 mm |
| Weight net | 0,075 kg |
| DC resistance Rdc | 5.7 Ohm |
| Effective membrane surface Sd | 2 cm2 |
| Dynamic moving mass Mms | 0.1 g |
| Vibration coil inductance L | 0,16 mH |
