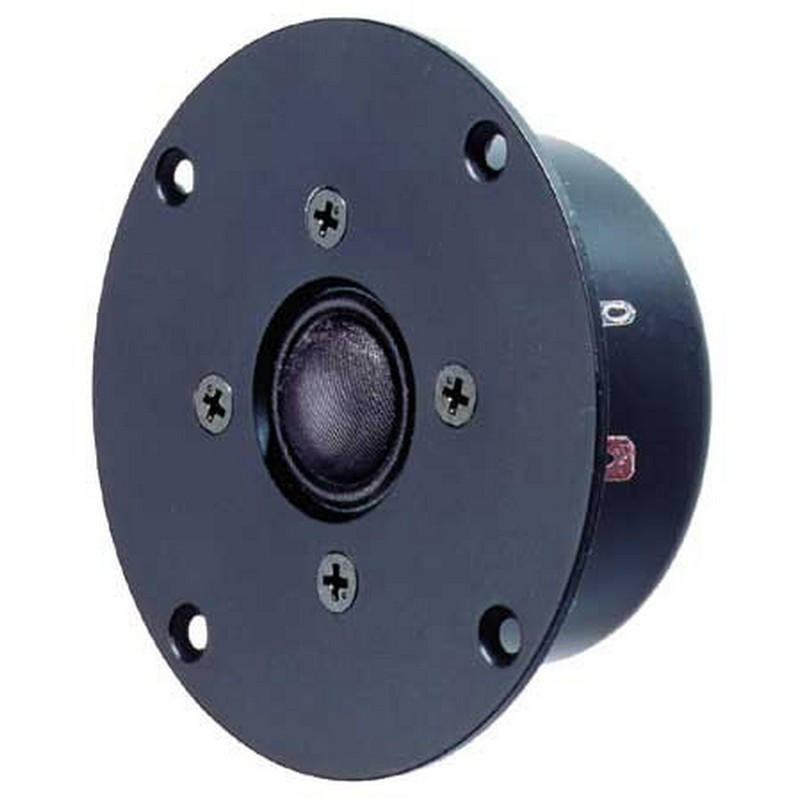

Visaton G 20 SC - 8 Ohm tweeter
Magnetically shielded 20 mm (0.8") high-end fabric cup
Visaton G 20 SC - 8 Ohm tweeter
Magnetically shielded 20 mm (0.8") high-end fabric cup
€58.61
Our previous price
€83.73
Save 30%
Tax included
Shipping excluded
4-0138
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Magnetically shielded 20 mm (0.8") high-end fabric cup for the high tone range from 3,000 Hz.
An extremely linear frequency response without resonances and a very good round beam behavior is achieved by optimal calotte shape and damping felt on the pole core.
The strong magnetic drive and the oscillating coil cooled with ferrofluid guarantee both high efficiency and high load capacity.
Technical data
| Nominal load capacity with high-pass filter | 80 W (12 dB/oct; 2000 Hz 120 W (12 dB/oct; 4000 Hz |
|---|---|
| Music loadability with high-pass filter | 140 W (12 dB/oct; 2000 Hz 180 W (12 dB/oct; 4000 Hz |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 1200–30000 Hz |
| Medium sound pressure level | 88 dB (1 W/1 m) |

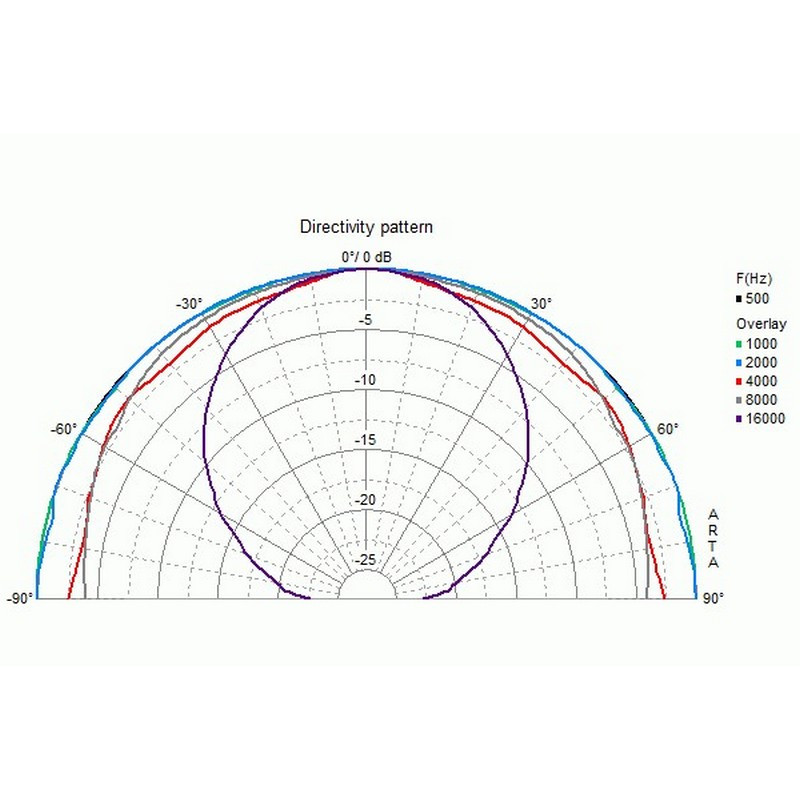

| Beam angle (-6 dB) | 180°/8000 Hz |
| Reaction frequency fs | 1890 Hz |
| Magnetic induction | 1.3 T |
| Magnetic flux | 200 μWb |
| Upper pole plate height | 2,5 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 2 mm |

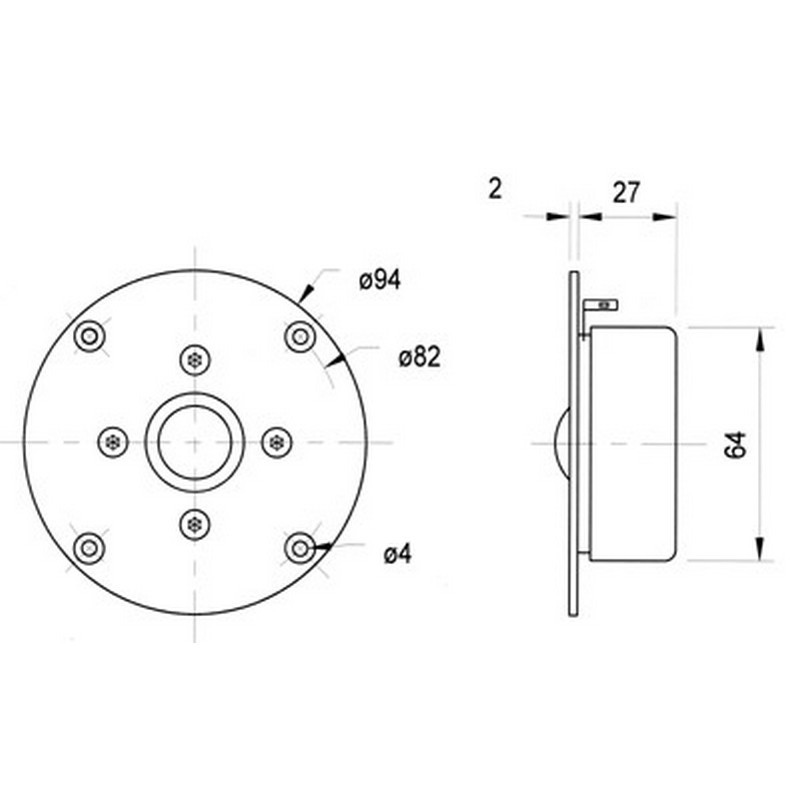

| Sound wall opening | 66 mm |
| Weight net | 0,3 % |
| DC resistance Rdc | 4.8 Ohm |
| Mechanical Q-factor Qms | 0,36 |
| Electric Q-factor Qes | 1,34 |
| Total Q factor Qts | 0,28 |
| Effective membrane surface Sd | 4 cm2 |
| Dynamic moving mass Mms | 0,15 g |
| Vibration coil inductance L | 0,02 mH |
