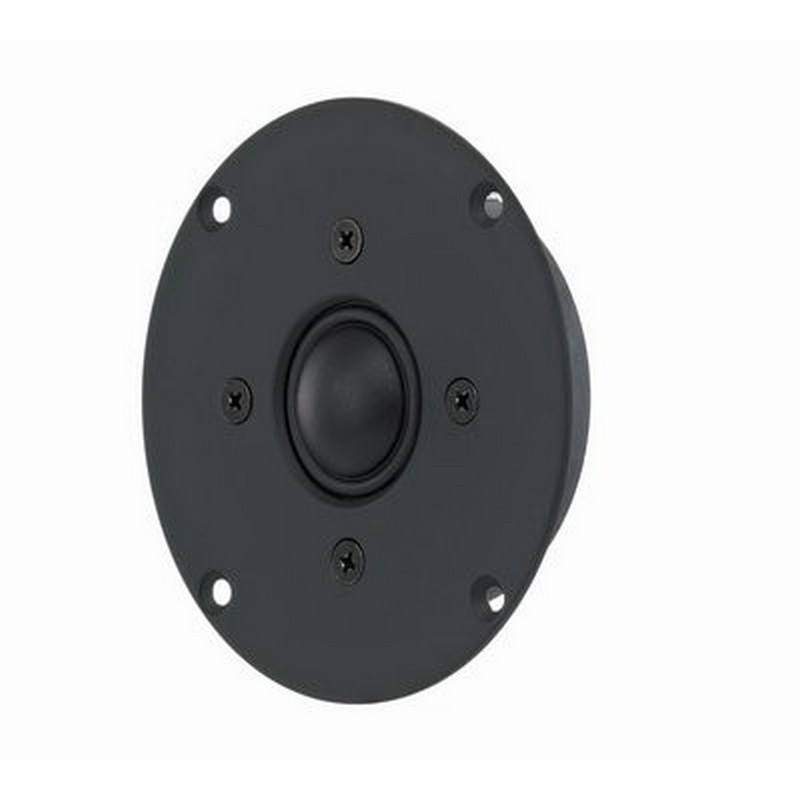

Visaton G 25 FFL - 8 Ohm tweeter
25 mm (1") fabric cup
Visaton G 25 FFL - 8 Ohm tweeter
25 mm (1") fabric cup
€77.29
Our previous price
€110.42
Save 30%
Tax included
Shipping excluded
4-0139
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
25 mm (1") fabric cup for the high tone range from 2000 Hz.
A linear frequency response is achieved by the optimized calotte shape with double coating in conjunction with a bead which has a particularly high attenuation.
The strong magnetic drive and the oscillating coil cooled with ferrofluid guarantee both high efficiency and high load capacity.
Technical data
| Nominal load capacity with high-pass filter | 80 W (12 dB/oct; 2000 Hz 120 W (12 dB/oct; 4000 Hz |
|---|---|
| Music loadability with high-pass filter | 140 W (12 dB/oct; 2000 Hz 180 W (12 dB/oct; 4000 Hz |
| Nominal impedance Z | 8 Ohm |

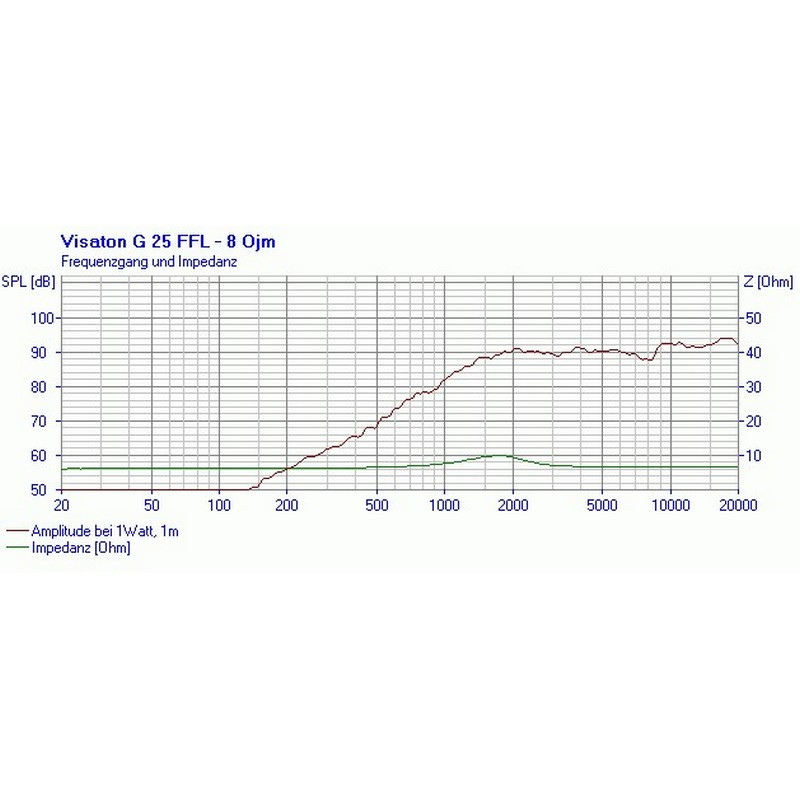

| Transmission range (-10 dB) | 1000–30000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

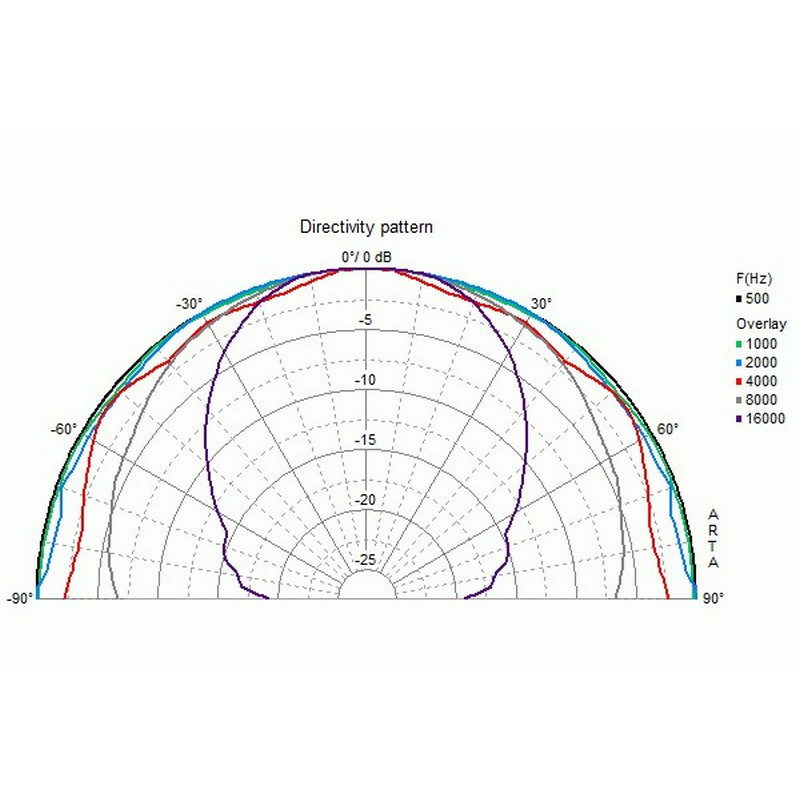

| Beam angle (-6 dB) | 167°/8000 Hz |
| Reaction frequency fs | 1600 Hz |
| Magnetic induction | 1.7 T |
| Magnetic flux | 425 μWb |
| Upper pole plate height | 2,5 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 2 mm |
| Sound wall opening | 80 mm |
| Weight net | 0,56 kg |
| DC resistance Rdc | 5.6 Ohm |
| Mechanical Q-factor Qms | 0,66 |
| Electric Q-factor Qes | 1,11 |
| Total Q factor Qts | 0,41 |
| Effective membrane surface Sd | 4.9 cm2 |
| Dynamic moving mass Mms | 0,3 g |
| Vibration coil inductance L | 0,05 mH |
