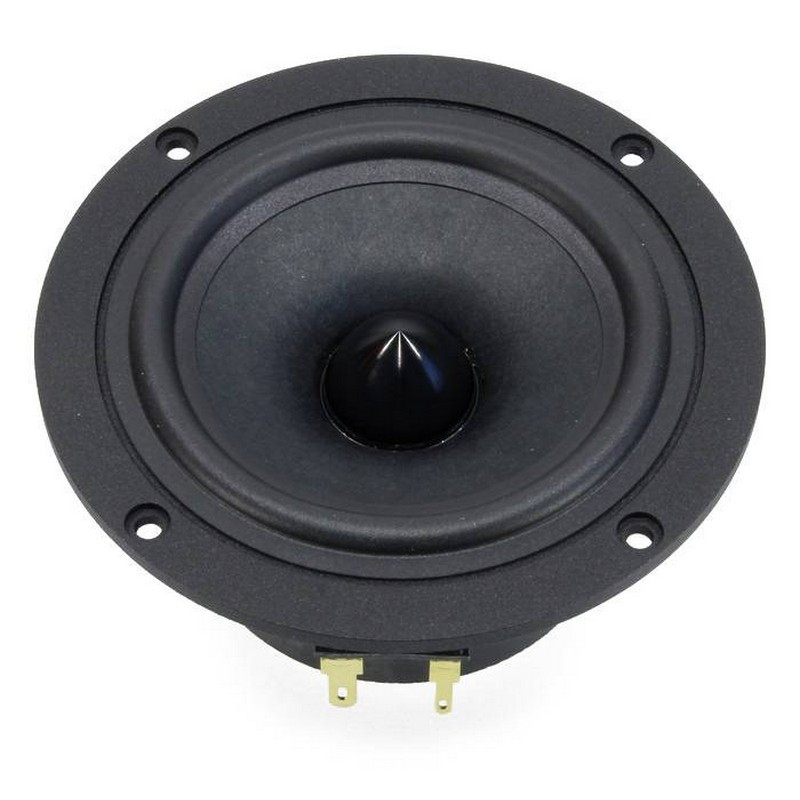

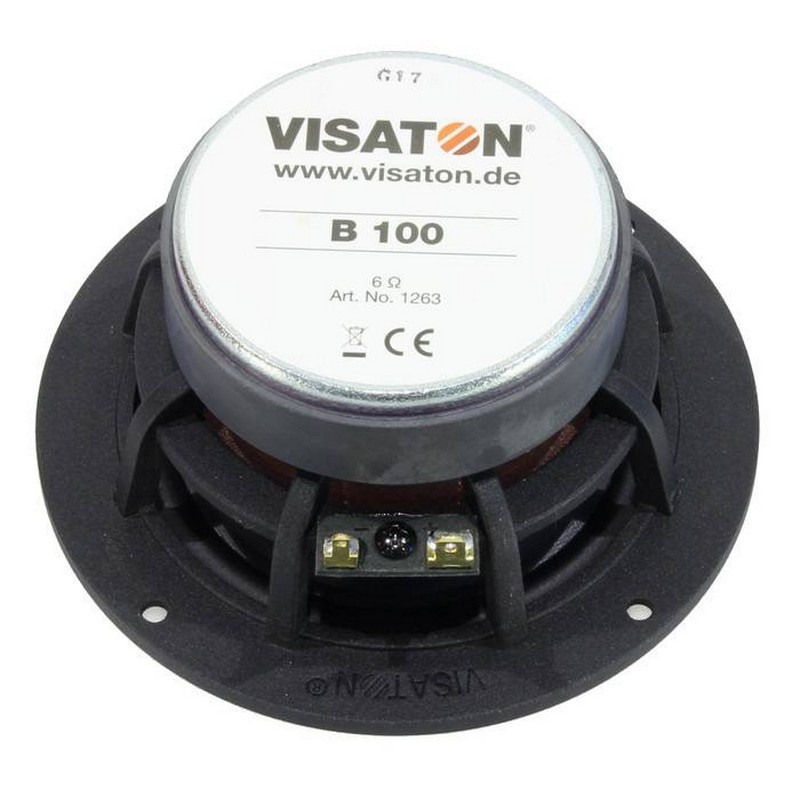

Visaton B 100 - 6 Ohm high-end full-range speaker
10 cm (4") high-end full-range speaker
Visaton B 100 - 6 Ohm high-end full-range speaker
10 cm (4") high-end full-range speaker
€89.62
Our previous price
€128.03
Save 30%
Tax included
Shipping excluded
4-0223
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

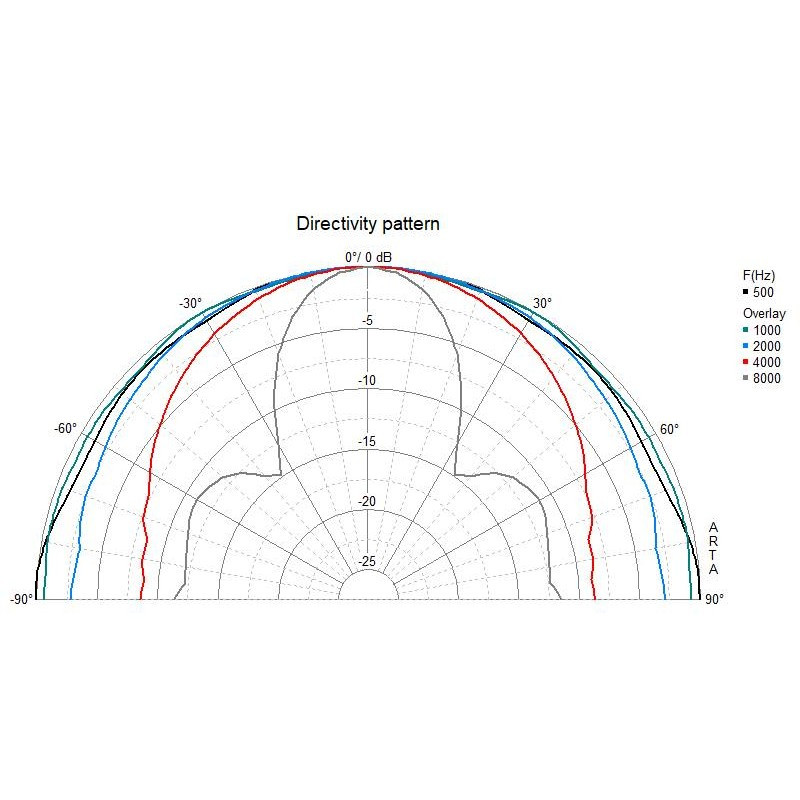

10 cm (4") High-end broadband loudspeaker with very balanced transmission behavior and slight high-tone rise for a pleasant sound image also outside the 0 axis.
High efficiency with low distortions are just some of the qualities of this speaker.
Characteristics
- Paper membrane
- Copper impedance control ring
- Aluminium die casting basket
- Phase plug
Case recommendations
| Volume/principle | BR-tube | f | fc/QTC |
| 5.8 l / closed | - | - | 107 Hz/0.71 |
| 11 l / bass reflex | 1 x BR 19.24 (9 cm long) | 60 Hz | - |
Technical data
| Membrane flexibility Cm | 1,28 mm/N |
| Rated load capacity | 30 W |
| Music loading | 60 W |
| Nominal impedance Z | 6 Ohm |
| Transmission range (-10 dB) | u.20000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 88 dB (1 W/1 m) |
| Maximum linear stroke | +/- 1.6 mm |
| Border deflection | +/- 7.0 mm |
| Reaction frequency fs | 75 Hz |
| Magnetic induction | 1,29 T |
| Magnetic flux | 316 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 26 mm |
| Winding height | 6,3 mm |

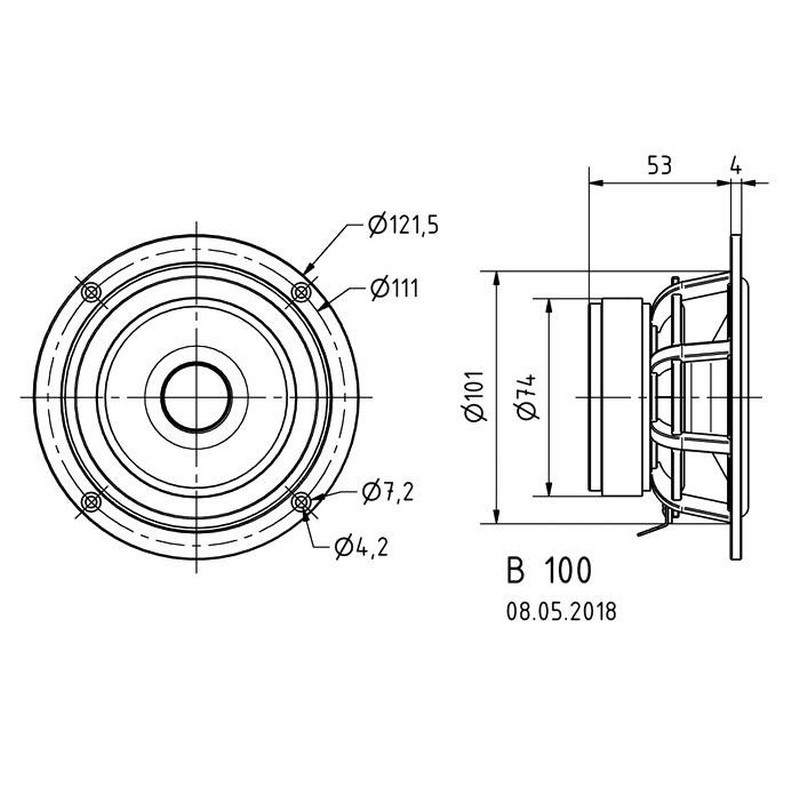

| Sound wall opening | 101 mm |
| Weight net | 0,68 |
| DC resistance Rdc | 5.8 Ohm |
| Mechanical Q-factor Qms | 10,13 |
| Electric Q-factor Qes | 0,54 |
| Total Q factor Qts | 0,52 |
| Equivalent air yield volume Vas | 5.27 l |
| Effective membrane surface Sd | 54,1 cm2 |
| Dynamic moving mass Mms | 3,2 g |
| Drive factor Bxl | 4.1 Tm |
| Vibration coil inductance L | 0,36 mH |
| Connections | 4,8 x 0,8 mm (+) 2,8 x 0,8 mm (-) |
