Visaton FR 8 WP - 4 Ohm (black) broadband speakers

Seawater resistant 8 cm (3.3") broadband loudspeaker

€19.48
Our previous price €27.83
Save 30%
Tax included Shipping excluded
Waterproof chassis
4-0034
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

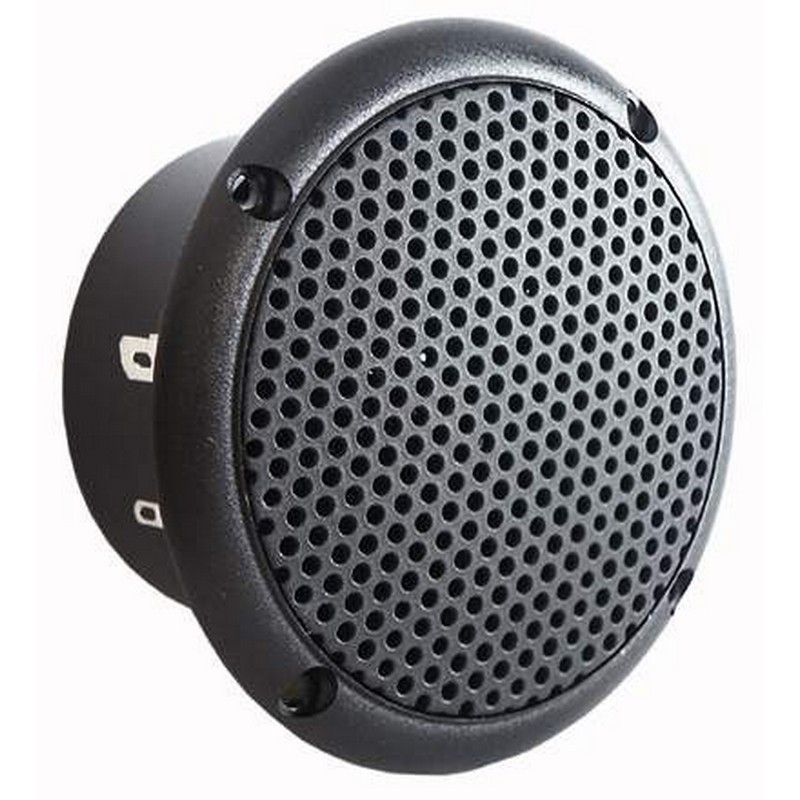

Seawater resistant 8 cm (3.3") broadband loudspeaker with injection molded plastic membrane as well as plastic basket and grid.

Absolutely corrosion-resistant and water-resistant by magnetic cladding and silicone sheathing of the feed line. Clear high-tone reproduction.

*) IP protection class for front side when installed in a sealed housing

Applications

- External sound systems

- Speakers for solar panels and wet rooms

- Boats, ships and open vehicles



Characteristics

- seawater festival

- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)

- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)

- Plastic: ASA (UL 94:HB; UV/weather resistant)

- ball throw-proof



Technical data

Rated load capacity 15 W
Music loading 25 W
Nominal impedance Z 4 Ohms

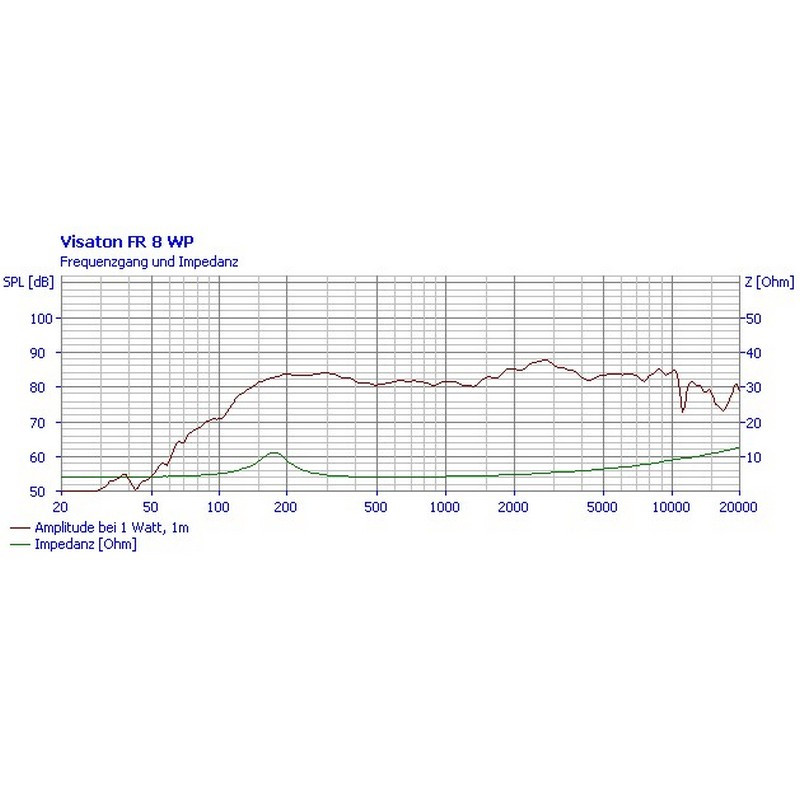

Transmission range (-10 dB) 100–20000 Hz
Medium sound pressure level 84 dB (1 W/1 m)

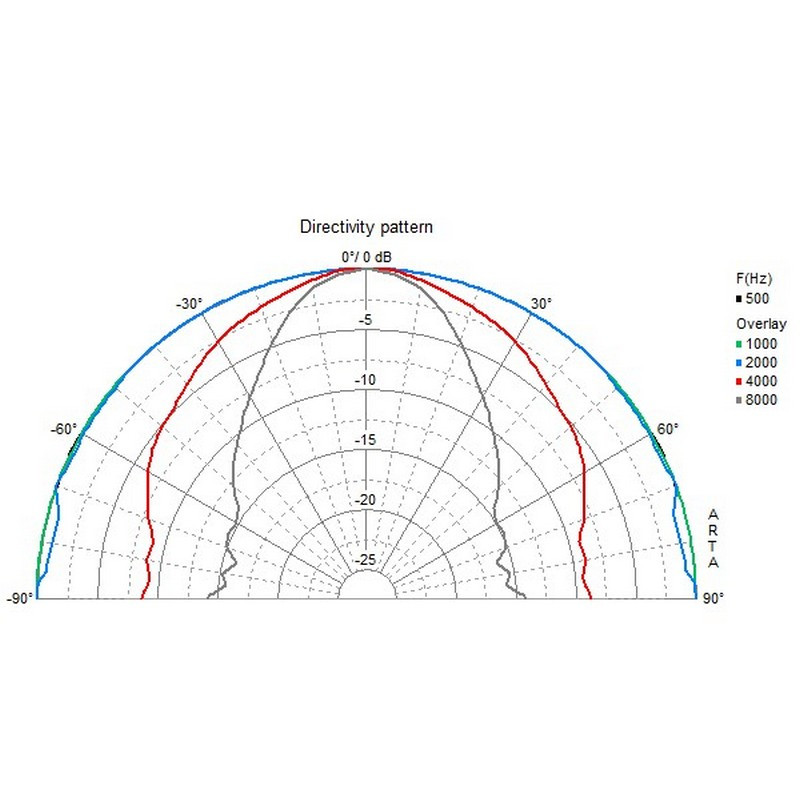

Beam angle (-6 dB) 114°/4000 Hz
Border deflection +/-3 mm
Reaction frequency fs 158 Hz
Magnetic induction 1 T
Magnetic flux 190 μWb
Upper pole plate height 3 mm
Oscillating coil diameter 20 mm
Winding height 4 mm
Sound wall opening 74 mm
Weight net 0,23 %
DC resistance Rdc 4,1 Ohm
Mechanical Q-factor Qms 2,62
Electric Q-factor Qes 1,33
Total Q factor Qts 0,88
Equivalent air yield volume Vas 0.4 l
Effective membrane surface Sd 30 cm2
Dynamic moving mass Mms 2,9 g
Drive factor Bxl 2.8 T m
Vibration coil inductance L 0,3 mH
Connections 5.2 x 0.5 mm (+)
2.8 x 0.5 mm (−)
Protection class IP 65 *)
Temperature range −40 – 80 °C
Colour black / black
