Visaton B 200 - 6 Ohm broadband speakers
20 cm (8") High-end broadband loudspeaker
Visaton B 200 - 6 Ohm broadband speakers
20 cm (8") High-end broadband loudspeaker
€198.93
Our previous price
€284.18
Save 30%
Tax included
Shipping excluded
4-0001
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

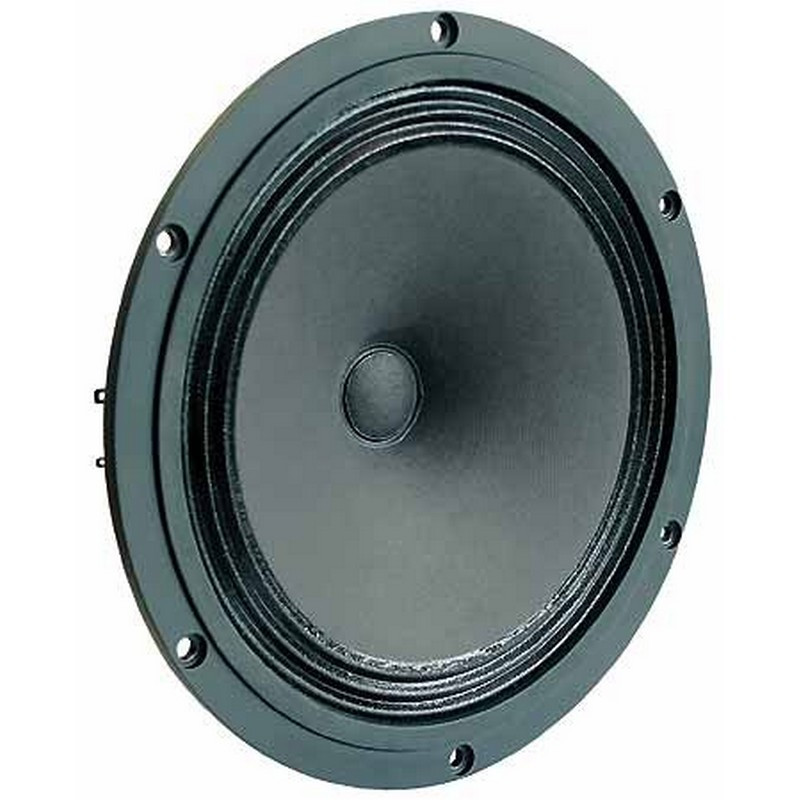

20 cm (8") High-end broadband loudspeaker.

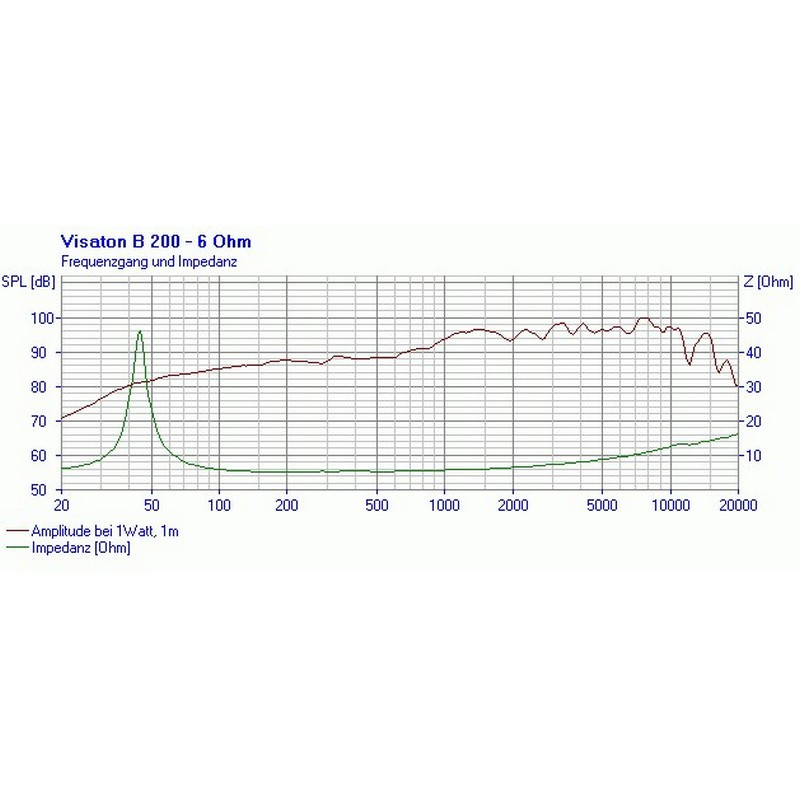

A high efficiency and a very balanced frequency response without great fluctuations characterize this high-end loudspeaker.
This is achieved by the very light paper membrane, the tissue bead and the optimized drive with a 25 mm vibration coil (aluminum wire), which optimally utilizes the magnetic field in the air gap (swing coil underhang).
The Kapton coil carrier is ventilated. The stable aluminum die casting basket not only visually makes a good figure, but also contributes with its openings to the back ventilation of the centering to the fact that the mechanical losses are extremely low.
Distortions remain evenly at an extremely low level.
The B 200 is excellently suited for use in high-quality and high-performance 1-way boxes, whereby in addition to classic closed or ventilated housings, striking results can be achieved with more exotic concepts such as horns or open sound walls.
Case recommendations
| Volume/principle | fc)/QTC |
| 70 l/c | 62 Hz/1,18 |
| 100 l/closed | 58 Hz/1,10 |
Technical data
| Rated load capacity | 40 W |
|---|---|
| Music loading | 70 W |
| Nominal impedance Z | 6 Ohm |
| Transmission range (-10 dB) | fu–18000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 96 dB (2.83 V/1 m) |

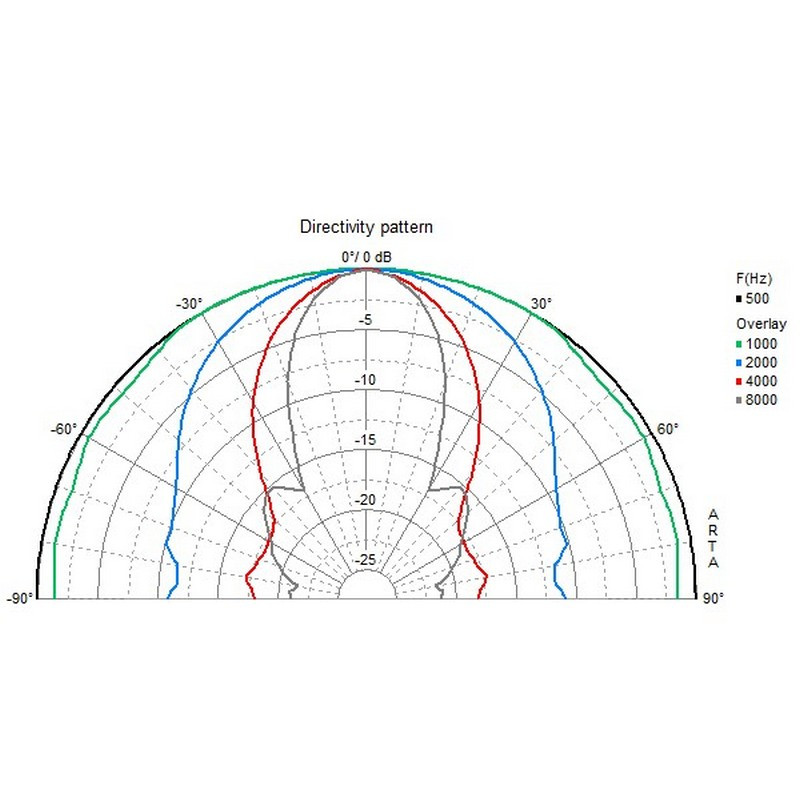

| Beam angle (-6 dB) | 48°/4000 Hz |
| Maximum linear stroke | +/-3,5 mm |
| Reaction frequency fs | 40 Hz |
| Magnetic induction | 1,2 T |
| Magnetic flux | 755 μWb |
| Upper pole plate height | 8 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 4 mm |

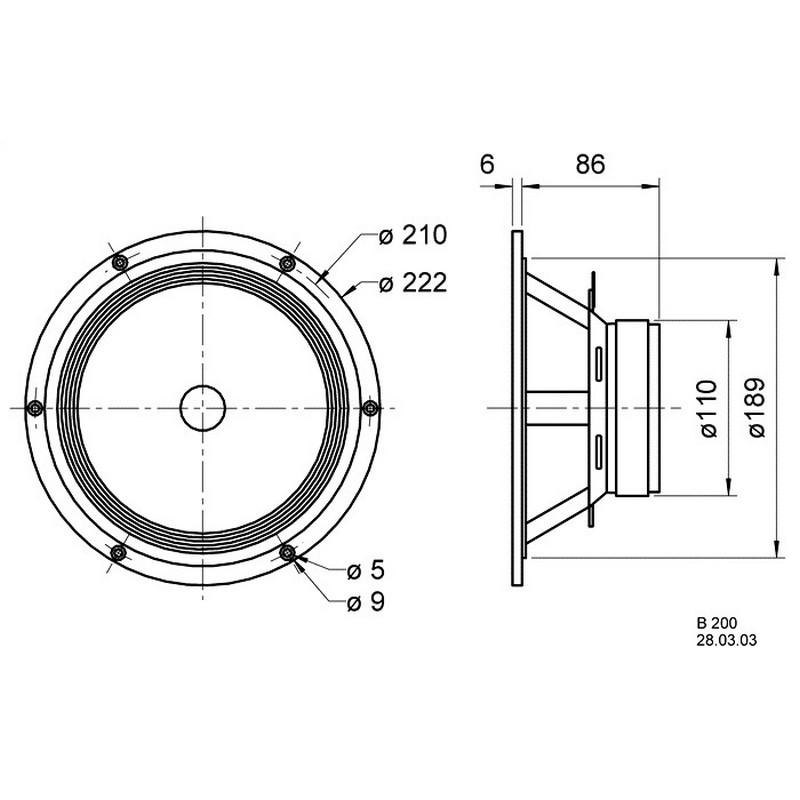

| Sound wall opening | 190 mm |
| Weight net | 2,16 kg |
| DC resistance Rdc | 5,0 Ohm |
| Mechanical Q-factor Qms | 8,39 |
| Electric Q-factor Qes | 0,83 |
| Total Q factor Qts | 0,75 |
| Equivalent air yield volume Vas | 102 l |
| Effective membrane surface Sd | 214 cm2 |
| Dynamic moving mass Mms | 9.7 g |
| Drive factor Bxl | 3,9 Tm |
| Vibration coil inductance L | 0,5 mH |
