Visaton FR 13 WP - 4 Ohm (white) Visaton FR 13 WP - 4 Ohm (white) Visaton FR 13 WP - 4 Ohm (white) Visaton FR 13 WP - 4 Ohm (white)
Visaton FR 13 WP - 4 Ohm (white)
Visaton FR 13 WP - 4 Ohm (white)
Visaton FR 13 WP - 4 Ohm (white)
Visaton FR 13 WP - 4 Ohm (white)

Visaton FR 13 WP - 4 Ohm (white) broadband speakers

Seawater resistant 13 cm (5") broadband speakers

€20.17
Our previous price €28.82
Save 30%
Tax included Shipping excluded
Waterproof chassis
4-0021
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Seawater resistant 13 cm (5") broadband speakers with injection molded plastic membrane as well as plastic basket and grid.

Absolutely corrosion-resistant and water-resistant by magnetic cladding and silicone sheathing of the feed line.

Color: White.

*) IP protection class for front side when installed in a sealed housing

Applications

- External sound systems

- Speakers for solar panels and wet rooms

- Boats, ships and open vehicles



Characteristics

- suitable for outdoor applications, seawaterproof

- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)

- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)

- Plastic: ASA (UL 94:HB; UV/weather resistant)

- ball throw-proof



Technical data

Rated load capacity 40 W
Music loading 60 W
Nominal impedance Z 4 Ohms

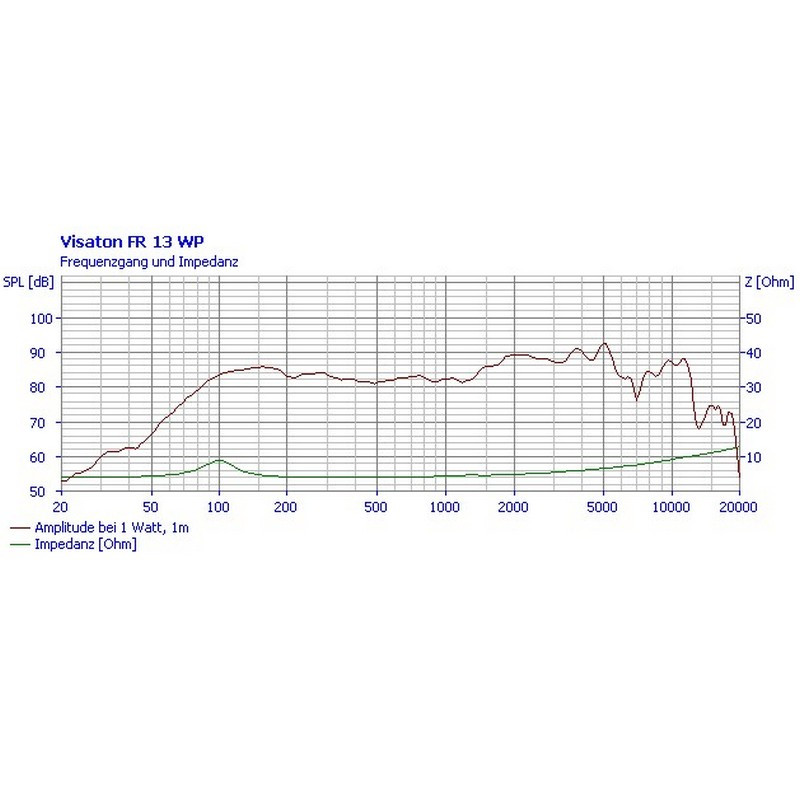

Transmission range (-10 dB) 70–16000 Hz
Medium sound pressure level 85 dB (1 W/1 m)

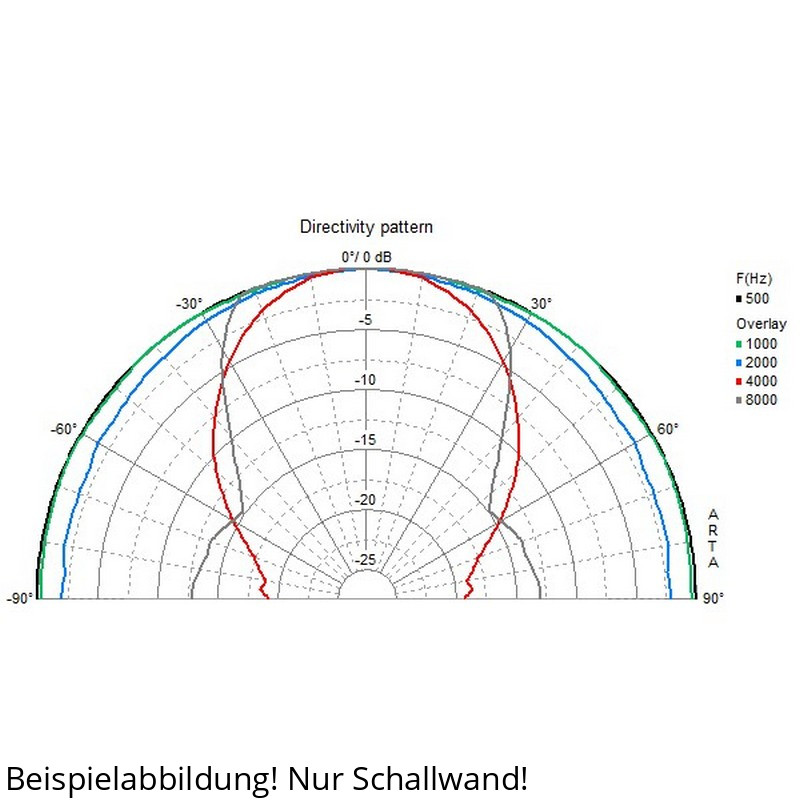

Beam angle (-6 dB) 69°/4000 Hz
Border deflection +/-2.5 mm
Reaction frequency fs 100 Hz
Magnetic induction 0,85
Magnetic flux 210 μWb
Upper pole plate height 4 mm
Oscillating coil diameter 20 mm
Winding height 5 mm
Sound wall opening 112 mm
Weight net 0,2 %
DC resistance Rdc 3.8 Ohm
Mechanical Q-factor Qms 2,49
Electric Q-factor Qes 2,19
Total Q factor Qts 1,17
Equivalent air yield volume Vas 4.4 l
Effective membrane surface Sd 78 cm2
Dynamic moving mass Mms 4.8 g
Drive factor Bxl 2.3 Tm
Vibration coil inductance L 0.4 mH
Connections 4.8 x 0.8 mm (+)
2.8 x 0.8 mm (-)
Protection class IP 65 *)
Temperature range −40 – 80 °C
Colour white / white
4-0021
