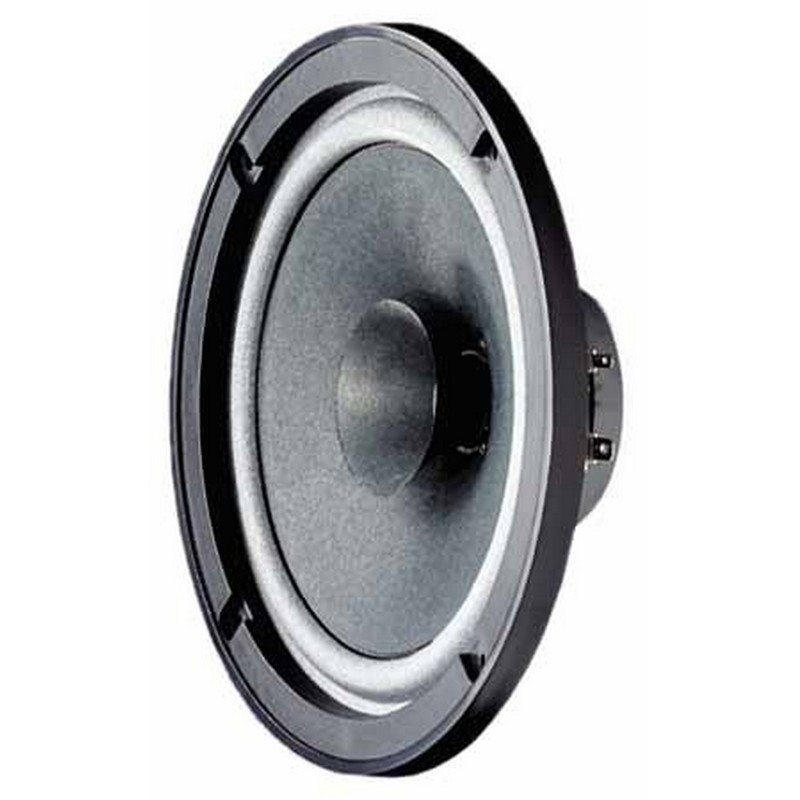

Visaton FR 6.5" - 8 Ohm broadband speakers
16 cm (6.5") broadband loudspeaker with high-tone cone
Visaton FR 6.5" - 8 Ohm broadband speakers
16 cm (6.5") broadband loudspeaker with high-tone cone
€20.50
Our previous price
€29.29
Save 30%
Tax included
Shipping excluded
4-0028
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
16 cm (6.5") broadband loudspeaker with high-tone cone.
Through frequency response with high-tone rise, particularly suitable for use in sound systems.
Water repellent membrane by impregnation. Removable decorative ring.
Applications
- Ceiling speakers
- ELA applications
- Electronic musical instruments
Â

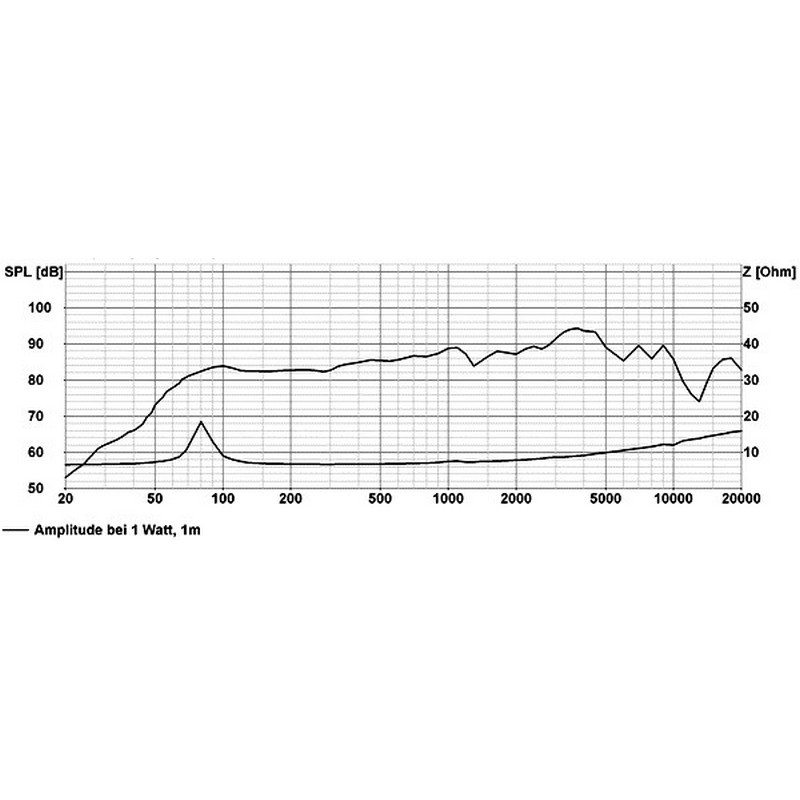

Technical data
| Rated load capacity | 40 W |
|---|---|
| Music loading | 60 W |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 70–20000 Hz |
| Medium sound pressure level | 87 dB (1 W/1 m) |

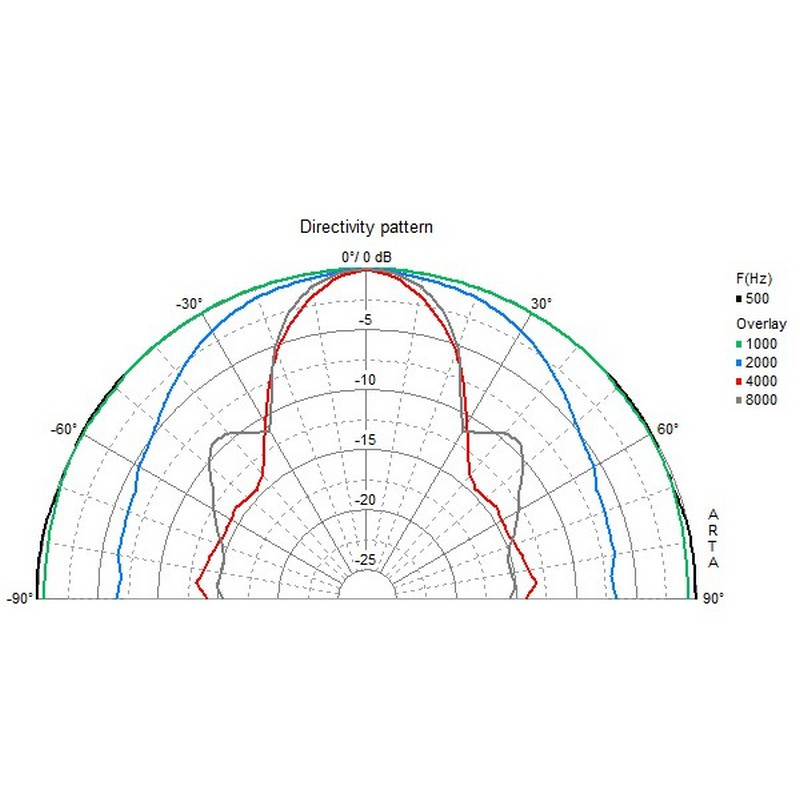

| Beam angle (-6 dB) | 41°/4000 Hz |
| Border deflection | +/-3 mm |
| Reaction frequency fs | 75 Hz |
| Magnetic induction | 0,75 TONNES |
| Magnetic flux | 190 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 4 mm |

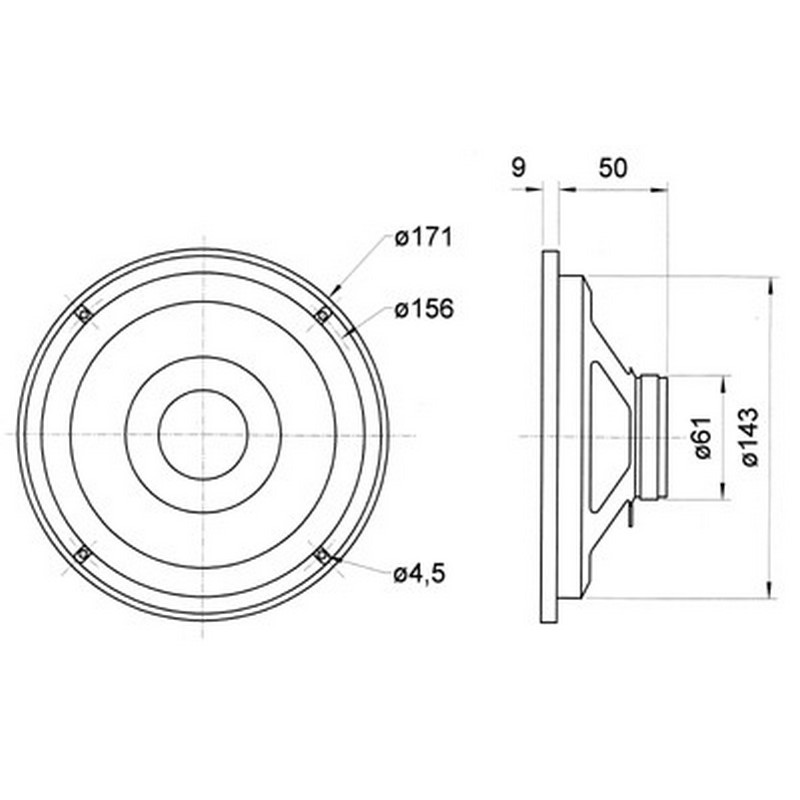

| Sound wall opening | 143 mm |
| Weight net | 0.47 |
| DC resistance Rdc | 6.8 Ohm |
| Mechanical Q-factor Qms | 4,94 |
| Electric Q-factor Qes | 3,26 |
| Total Q factor Qts | 1,96 |
| Equivalent air yield volume Vas | 16 l |
| Effective membrane surface Sd | 129 cm2 |
| Dynamic moving mass Mms | 5.9 g |
| Drive factor Bxl | 2.5 t m |
| Vibration coil inductance L | 0,8 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
