Visaton FR 8 WP - 8 Ohm (white) broadband speakers

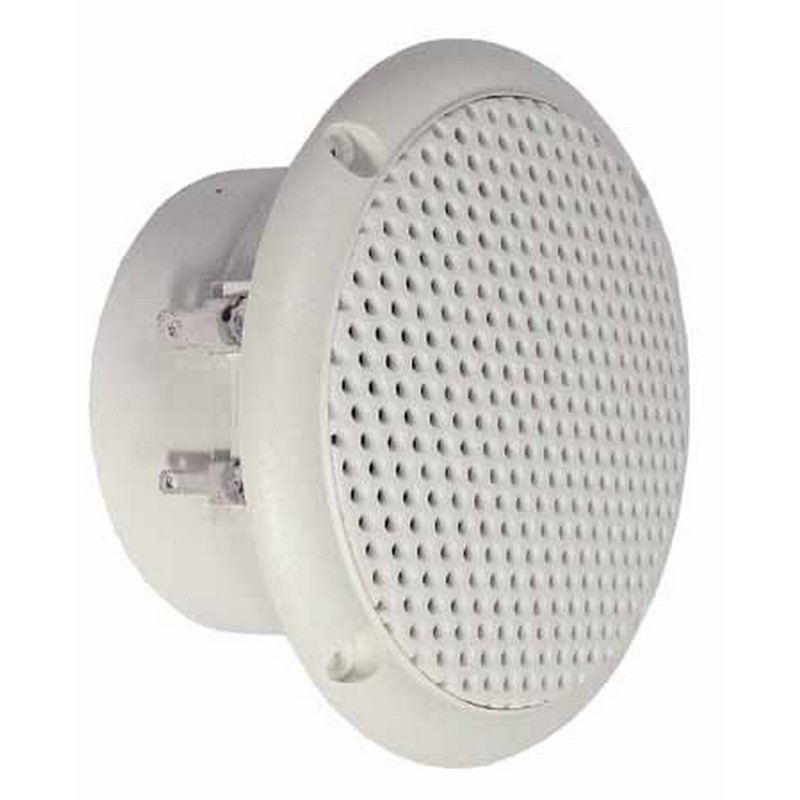

Seawater resistant 8 cm (3.3") broadband loudspeaker
Visaton FR 8 WP - 8 Ohm (white) broadband speakers
Seawater resistant 8 cm (3.3") broadband loudspeaker
€19.48
Our previous price
€27.83
Save 30%
Tax included
Shipping excluded
4-0037
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Seawater resistant 8 cm (3.3") broadband loudspeaker with injection molded plastic membrane as well as plastic basket and grid.
Absolutely corrosion-resistant and water-resistant by magnetic cladding and silicone sheathing of the feed line.
Clear high-tone reproduction.
*) IP protection class for front side when installed in a sealed housing
Applications
- External sound systems
- Speakers for solar panels and wet rooms
- Boats, ships and open vehicles
Characteristics
- seawater festival
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- Plastic: ASA (UL 94: HB; UV/weather resistant)
- ball throw-proof
Technical data
| Rated load capacity | 15 W |
|---|---|
| Music loading | 25 W |
| Nominal impedance Z | 8 Ohm |

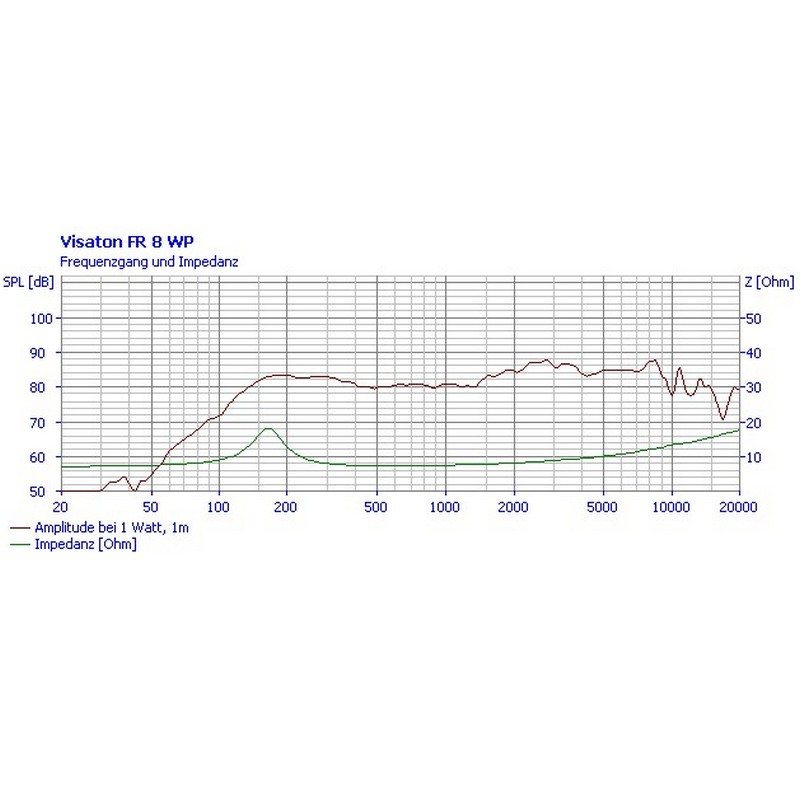

| Transmission range (-10 dB) | 100–20000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

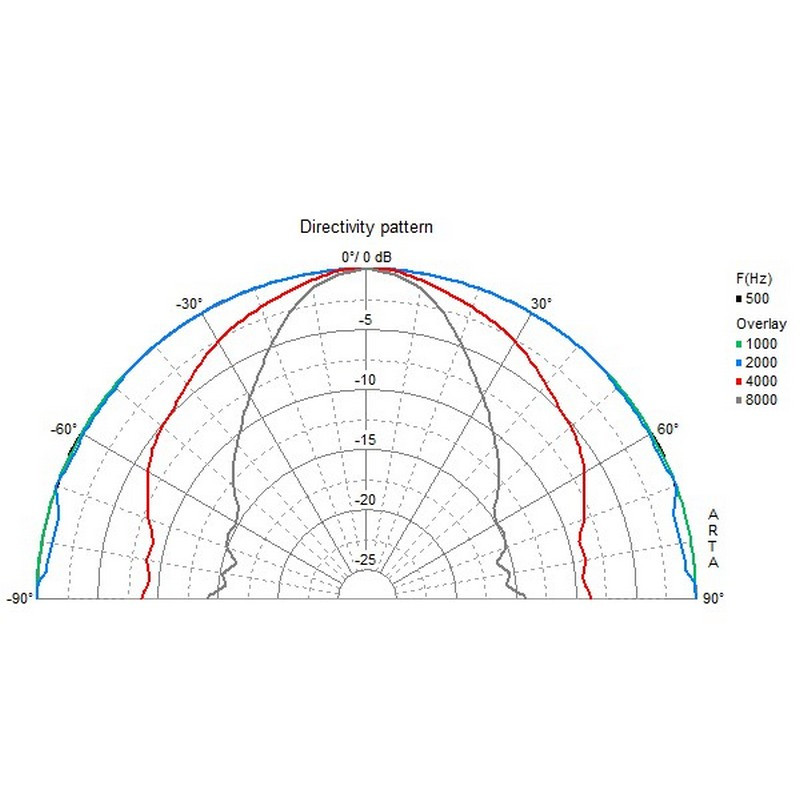

| Beam angle (-6 dB) | 114°/4000 Hz |
| Border deflection | +/-3 mm |
| Reaction frequency fs | 158 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 190 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 4 mm |
| Sound wall opening | 74 mm |
| Weight net | 0,23 % |
| Connections | 5.2 x 0.5 mm (+) 2.8 x 0.5 mm (−) |
| Protection class | IP 65 *) |
| Temperature range | −40 – 80 °C |
| Colour | white / white |
