Visaton FRS 5 - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
Visaton FRS 5 - 8 Ohm broadband speakers
5 cm (2") broadband loudspeaker
€10.89
Our previous price
€15.55
Save 30%
Tax included
Shipping excluded
4-0043
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

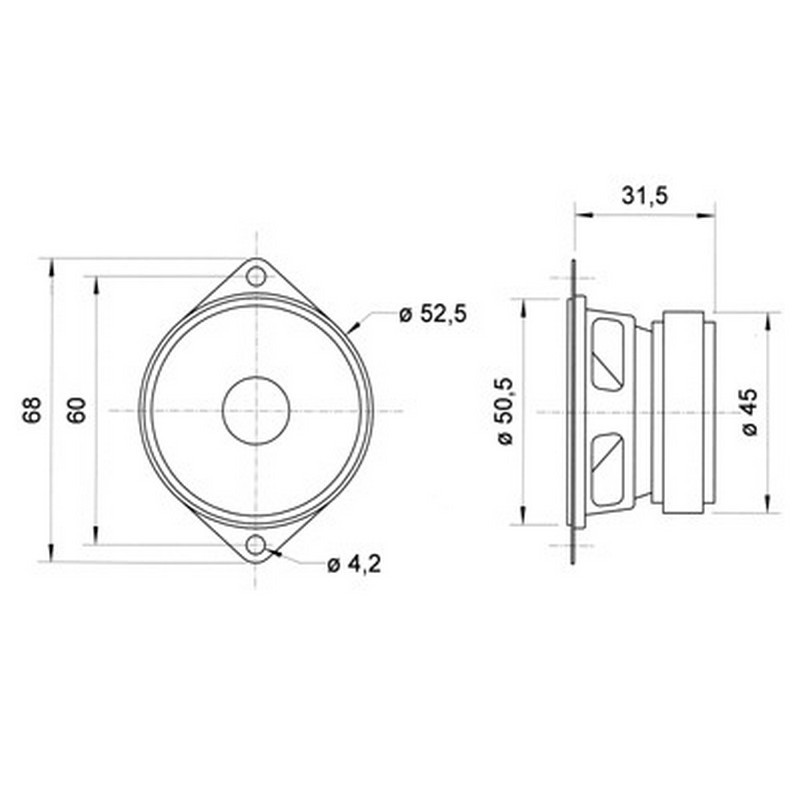

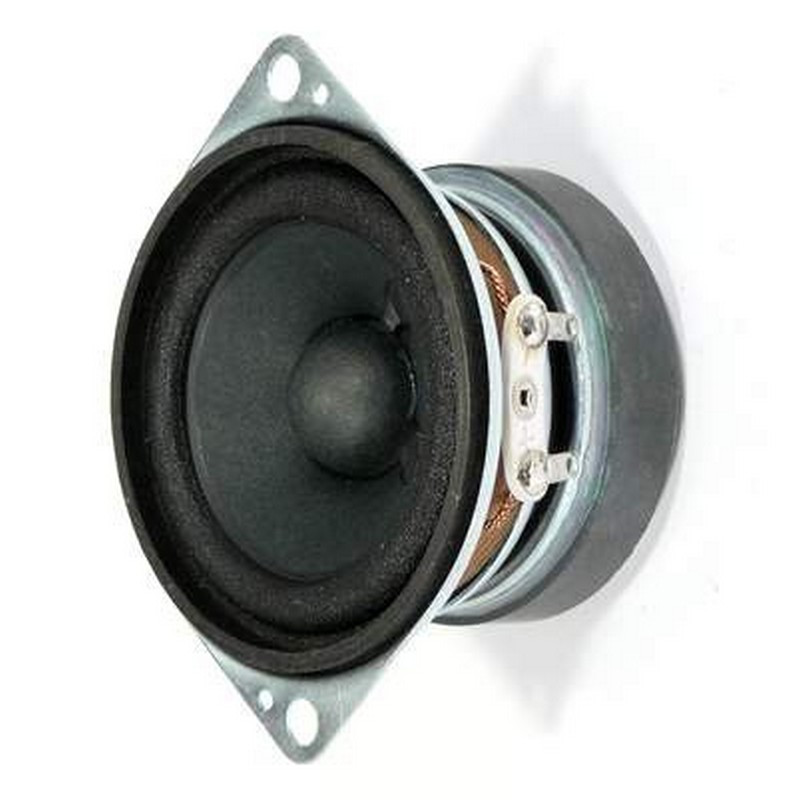

5 cm (2") broadband loudspeaker with special basket shape with two fastening straps.
Suitable as a midrange driver in speaker lines for hi-fi and sound systems as well as for ELA systems in 100-V technology.
Due to the small dimensions also very well suited as control speakers in electronic devices.
Applications
- Very narrow ELA lines
- Control loudspeaker for electronic devices
- Model construction
- Electronic musical instruments
Â
Characteristics
- Moisture-impregnated membrane
- Metal design
Â
Technical data
| Rated load capacity | 5 W |
|---|---|
| Music loading | 8 W |
| Nominal impedance Z | 8 Ohm |

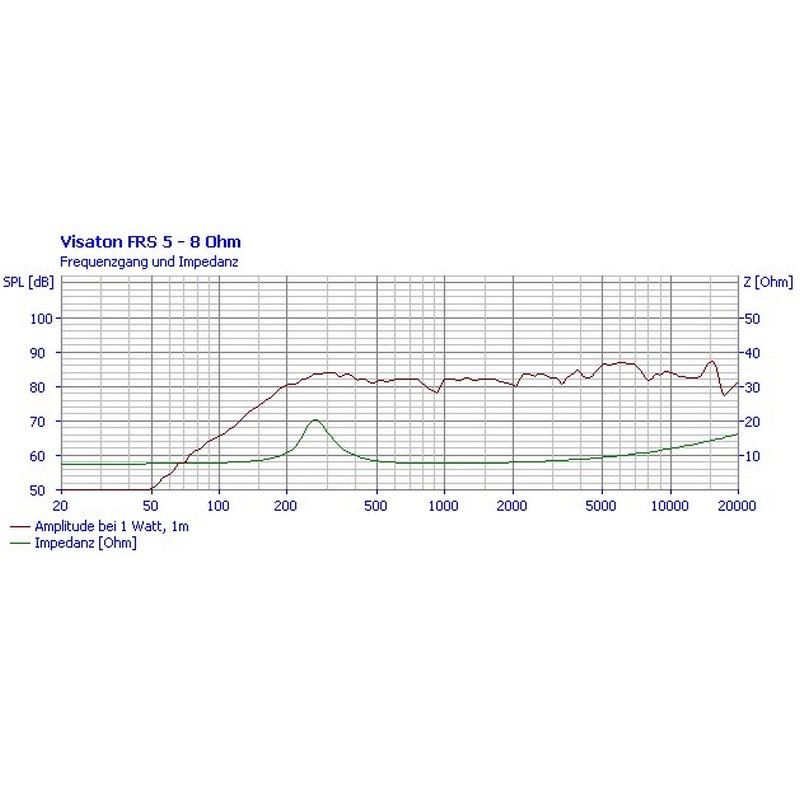

| Transmission range (-10 dB) | 150–20000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

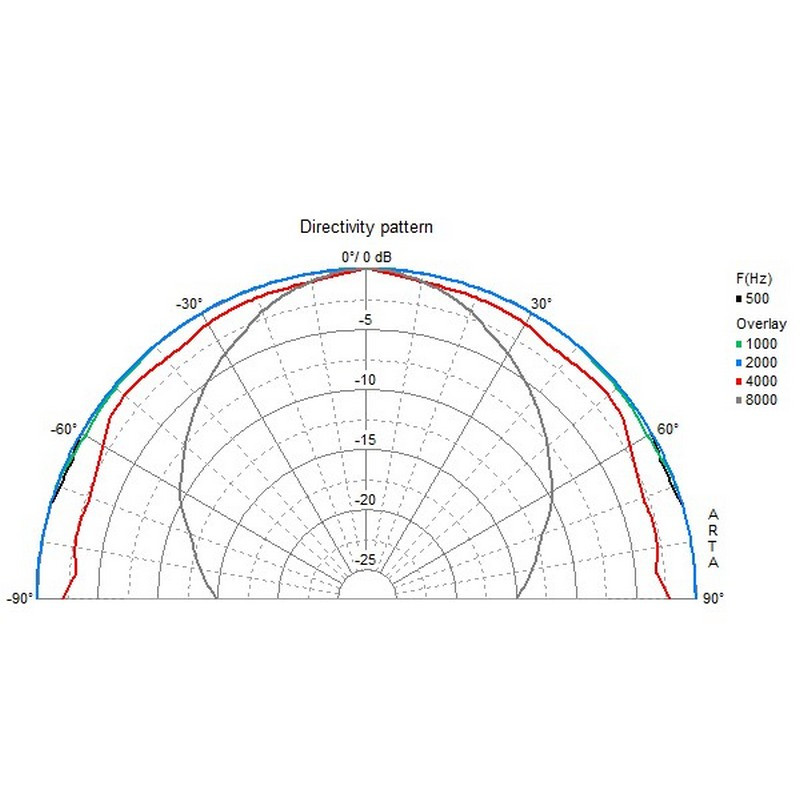

| Beam angle (-6 dB) | 180°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 270 Hz |
| Magnetic induction | 0,95 |
| Magnetic flux | 105 μWb |
| Upper pole plate height | 2,5 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 3.7 mm |
| Sound wall opening | 46 mm |
| Weight net | 0,126 kg |
| DC resistance Rdc | 7.2 Ohm |
| Mechanical Q-factor Qms | 3,19 |
| Electric Q-factor Qes | 1,81 |
| Total Q factor Qts | 1,15 |
| Equivalent air yield volume Vas | 0,16 |
| Effective membrane surface Sd | 12 cm2 |
| Dynamic moving mass Mms | 0,5 g |
| Drive factor Bxl | 1.6 m |
| Vibration coil inductance L | 0,2 m |
| Temperature range | −25 ... 70 °C |
