Visaton FR 16 WP - 4 Ohm (black) broadband speakers
Seawater resistant 16 cm (6.5") broadband loudspeaker
Visaton FR 16 WP - 4 Ohm (black) broadband speakers
Seawater resistant 16 cm (6.5") broadband loudspeaker
€24.75
Our previous price
€35.35
Save 30%
Tax included
Shipping excluded
4-0022
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

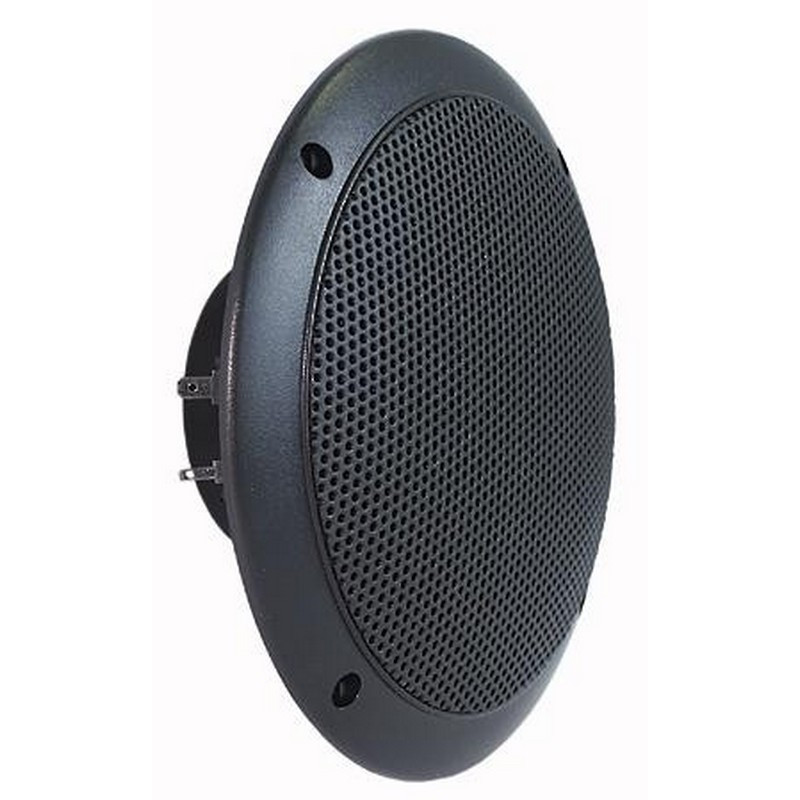

Seawater resistant 16 cm (6.5") broadband loudspeaker with injection molded plastic membrane as well as plastic basket and grid.
Absolutely corrosion-resistant and water-resistant by magnetic cladding and silicone sheathing of the feed line.
Color: Black.
*) IP protection class for front side when installed in a sealed housing
Applications
- External sound systems
- Speakers for solar panels and wet rooms
- Boats, ships and open vehicles
Â
Characteristics
- seawater festival
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- Plastic: ASA (UL 94:HB; UV/weather resistant)
- ball throw-proof
Â
Technical data
| Rated load capacity | 60 W |
|---|---|
| Music loading | 80 W |
| Nominal impedance Z | 4 Ohms |

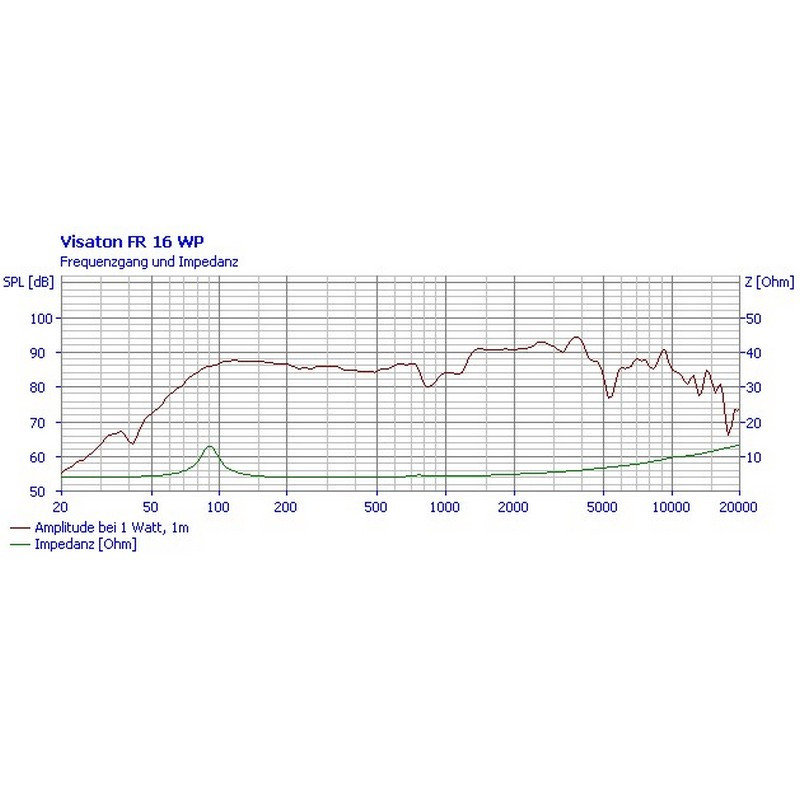

| Transmission range (-10 dB) | 60–15000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

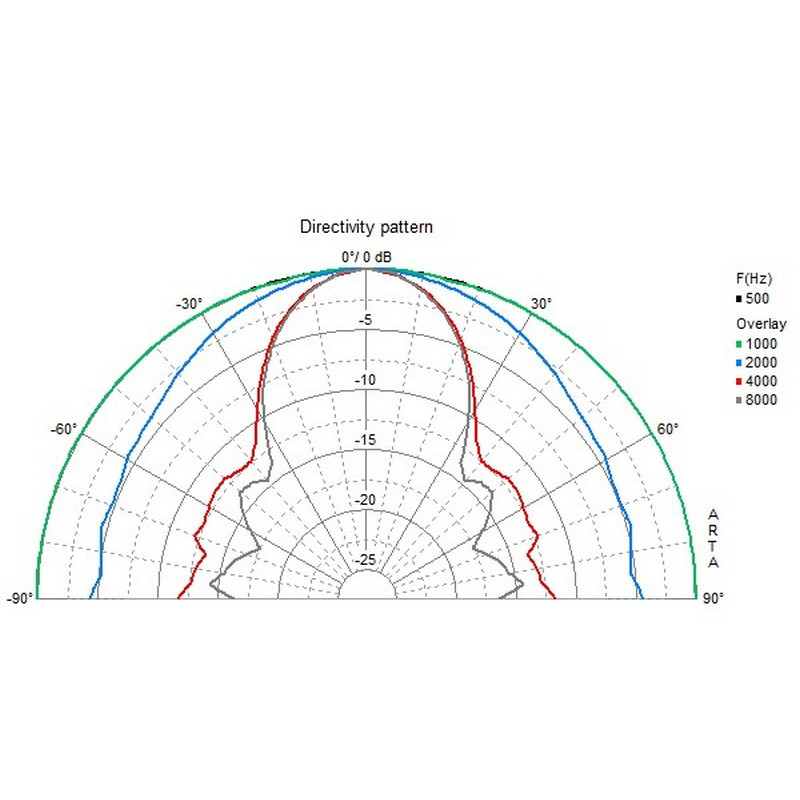

| Beam angle (-6 dB) | 46°/4000 Hz |
| Reaction frequency fs | 85 Hz |
| Magnetic induction | 1.0 |
| Magnetic flux | 250 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 6 mm |

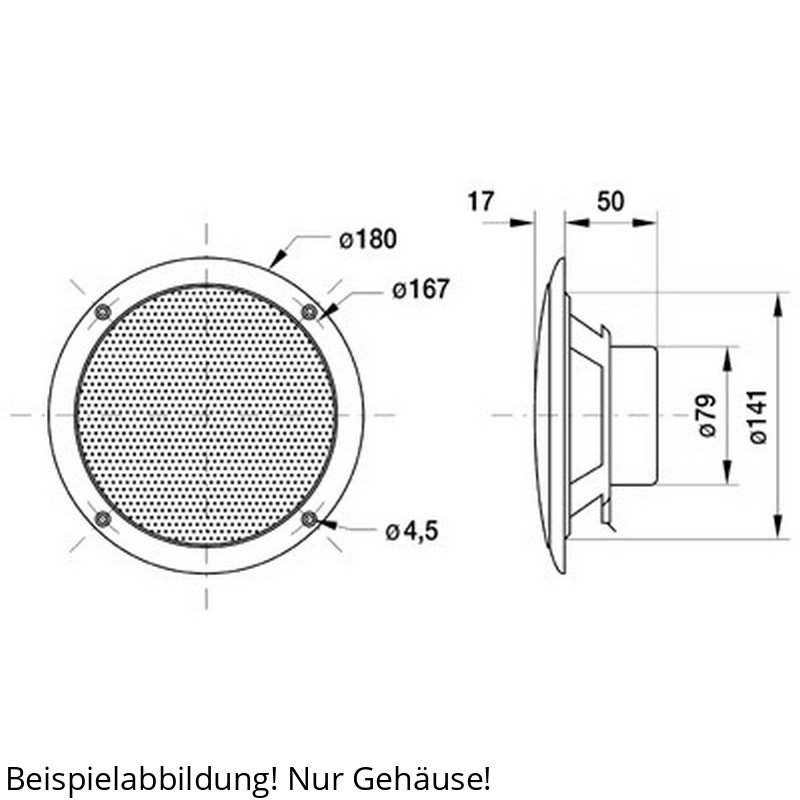

| Sound wall opening | 142 mm |
| Weight net | 0.4 kg |
| DC resistance Rdc | 3,7 Ohm |
| Mechanical Q-factor Qms | 2,99 |
| Electric Q-factor Qes | 1,55 |
| Total Q factor Qts | 1,02 |
| Equivalent air yield volume Vas | 10 l |
| Effective membrane surface Sd | 130 cm2 |
| Dynamic moving mass Mms | 8.4 g |
| Drive factor Bxl | 3,2 Tm |
| Vibration coil inductance L | 0.4 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Protection class | IP 65 *) |
| Temperature range | −40 – 80 °C |
| Colour | black/black |
