Visaton R 10 SC - 4 Ohm broadband speakers

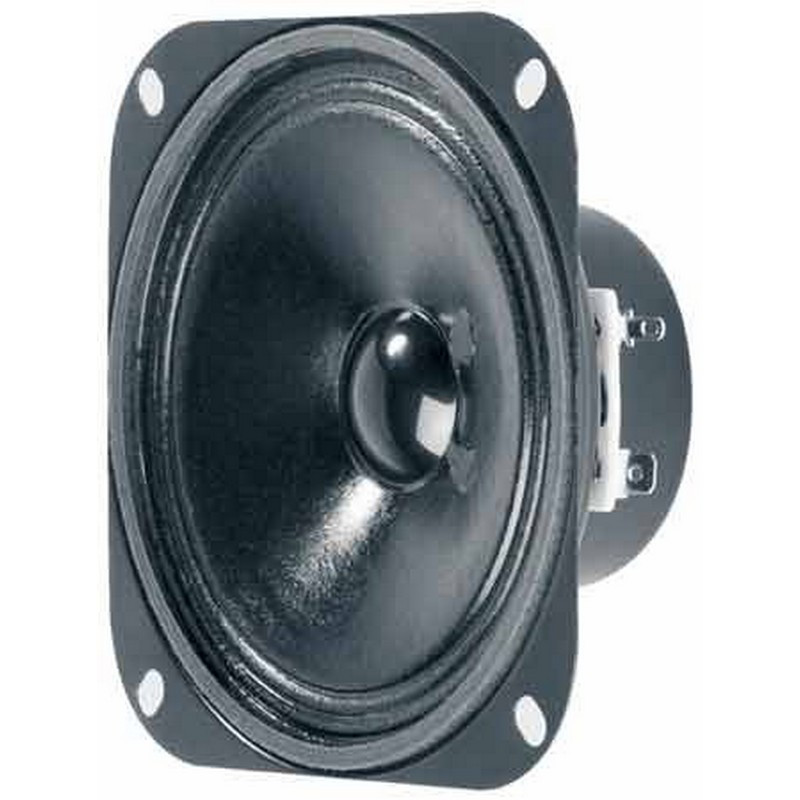

Magnetically shielded 10 cm (4") broadband loudspeaker
Visaton R 10 SC - 4 Ohm broadband speakers
Magnetically shielded 10 cm (4") broadband loudspeaker
€11.01
Our previous price
€15.73
Save 30%
Tax included
Shipping excluded
4-0072
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Magnetically shielded 10 cm (4") broadband loudspeaker with high efficiency and balanced frequency response with high tone increase.
This makes very good speech comprehensibility. Water repellent membrane and rubber seal.
Particularly suitable as a control loudspeaker for electronic devices and as a built-in loudspeaker for public transport and facilities.
*) IP protection class for front side when installed in a sealed housing
Applications
- Video monitors
- Control loudspeaker for electronic devices
- Ceiling loudspeakers in rail vehicles and buses
Characteristics
- working in cold according to EN 60068-2-1/EN 50155
- Storage up to -40 °C according to EN 60068-2-1/EN 50155
- working with moist heat (cyclic) according to EN 60068-2-3/EN 50155
- working in dry heat according to EN 60068-2-2/EN 50155
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |

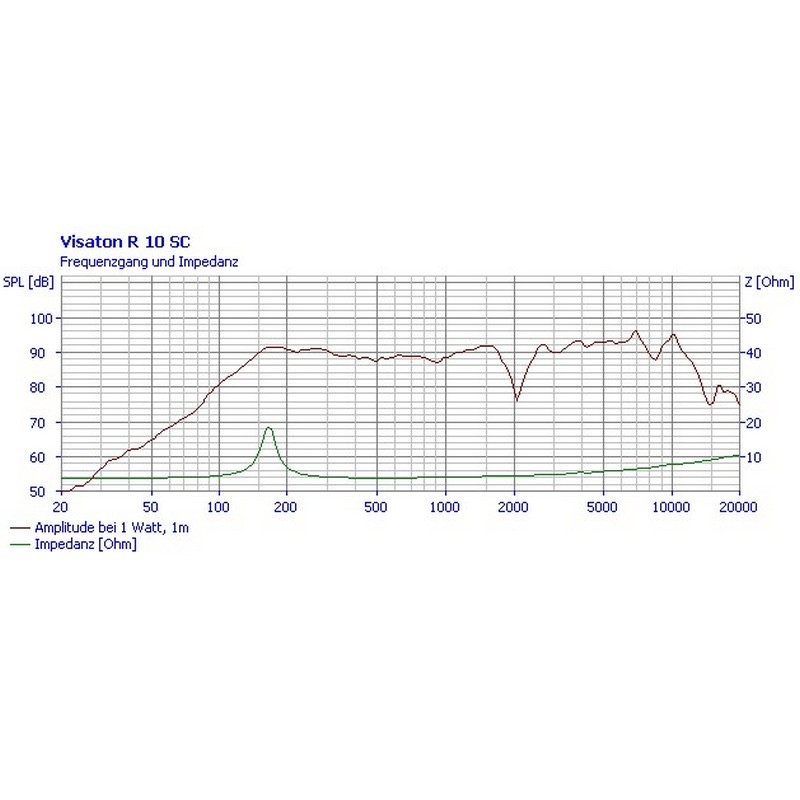

| Transmission range (-10 dB) | 100–13000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

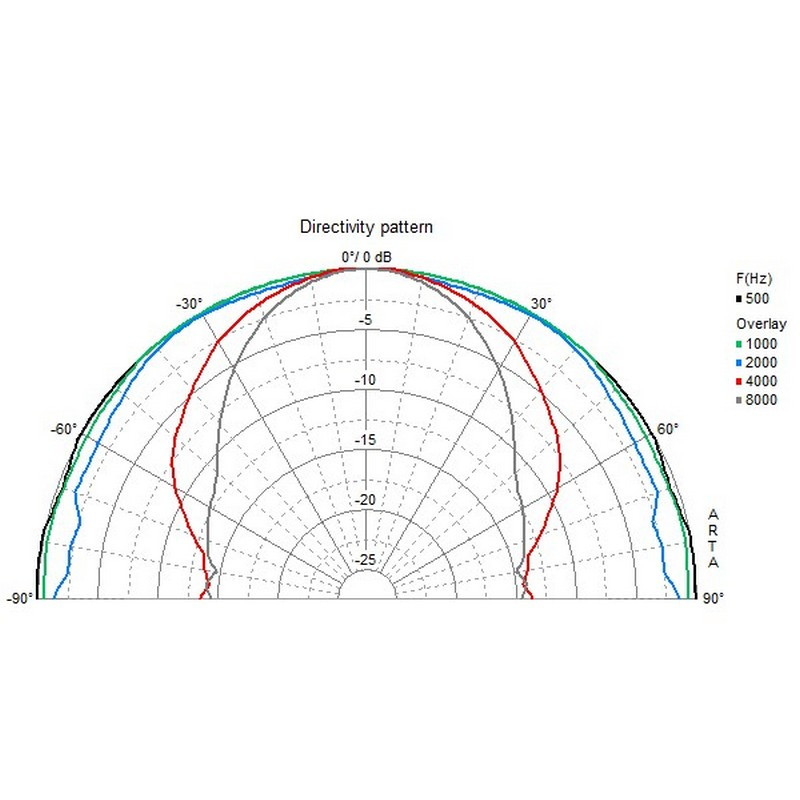

| Beam angle (-6 dB) | 92°/4000 Hz |
| Border deflection | +/-1.5 mm |
| Reaction frequency fs | 165 Hz |
| Magnetic induction | 0,95 |
| Magnetic flux | 135 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 15 mm |
| Winding height | 4 mm |

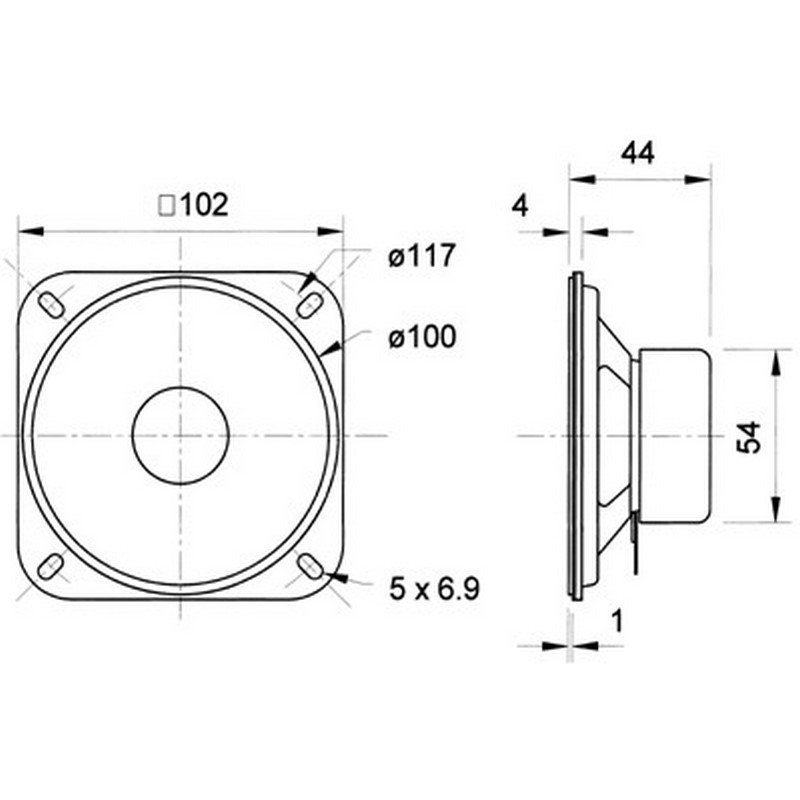

| Sound wall opening | 93 mm |
| Weight net | 0,24 |
| DC resistance Rdc | 3.6 Ohm |
| Mechanical Q-factor Qms | 6,4 |
| Electric Q-factor Qes | 1,67 |
| Total Q factor Qts | 1,32 |
| Equivalent air yield volume Vas | 2.6 l |
| Effective membrane surface Sd | 56 cm2 |
| Dynamic moving mass Mms | 1.9 g |
| Drive factor Bxl | 2 T m |
| Vibration coil inductance L | 0,2 m |
| Connections | 5.2 x 0.5 mm (+) 2.8 x 0.5 mm (−) |
| Protection class | IP 64, IP 67 *) |
| Temperature range | −40 – 70 °C |
