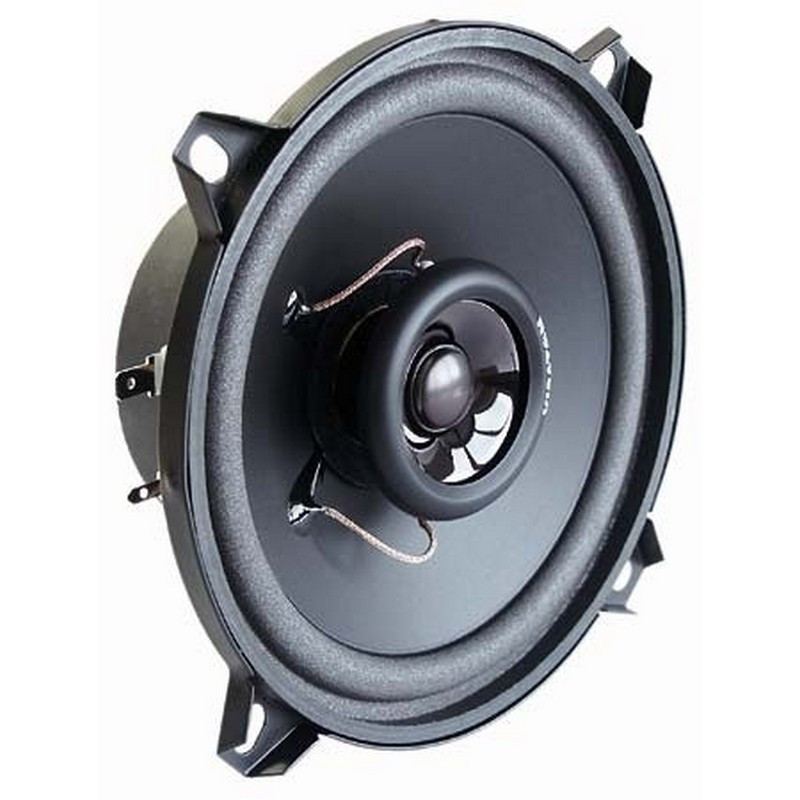

Visaton DX 13 - 4 Ohm coaxial loudspeaker

13 cm (5") 2-way coaxial loudspeaker

€65.60
Our previous price €93.72
Save 30%

€32.80 pro Stück

Tax included Shipping excluded
Coaxial loudspeaker
4-0148
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Couple price!

13 cm (5") 2-way coaxial loudspeaker with Euro standard basket, polypropylene membrane and polycarbonate tweeter.

Integrated frequency switch (condenser) for the tweeter.

Very balanced sound.

Unproblematic assembly in vehicles with installation openings for 13 cm loudspeakers.

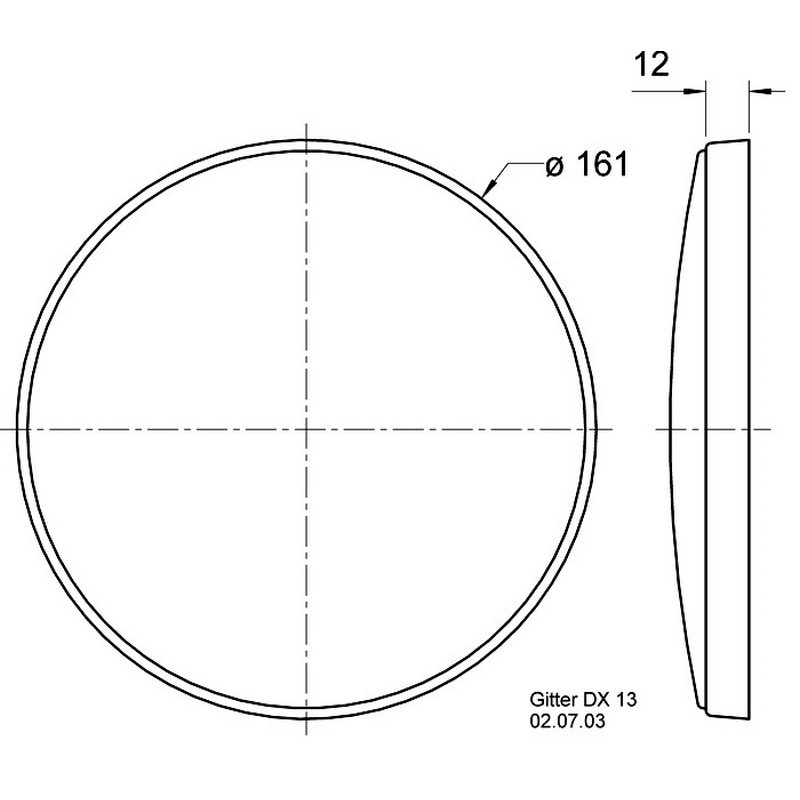

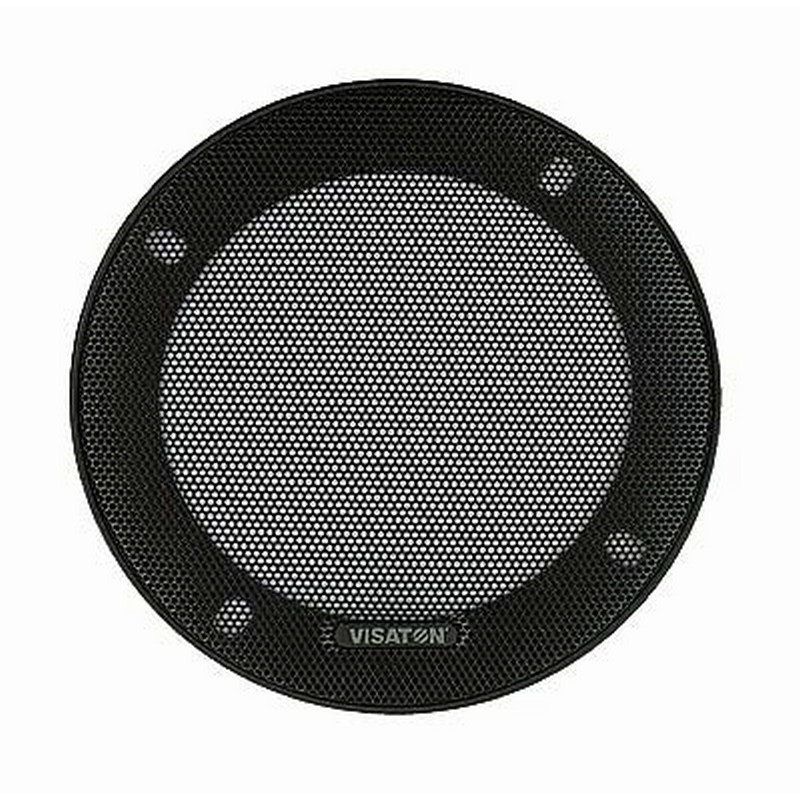

With mounting ring and grid.

Installation on door panels and rear racks possible.

Packed in pairs, including mounting material and protective grid.

Applications

- Vehicles

- motorhome

Technical data

Rated load capacity 60 W
Music loading 80 W
Nominal impedance Z 4 Ohms

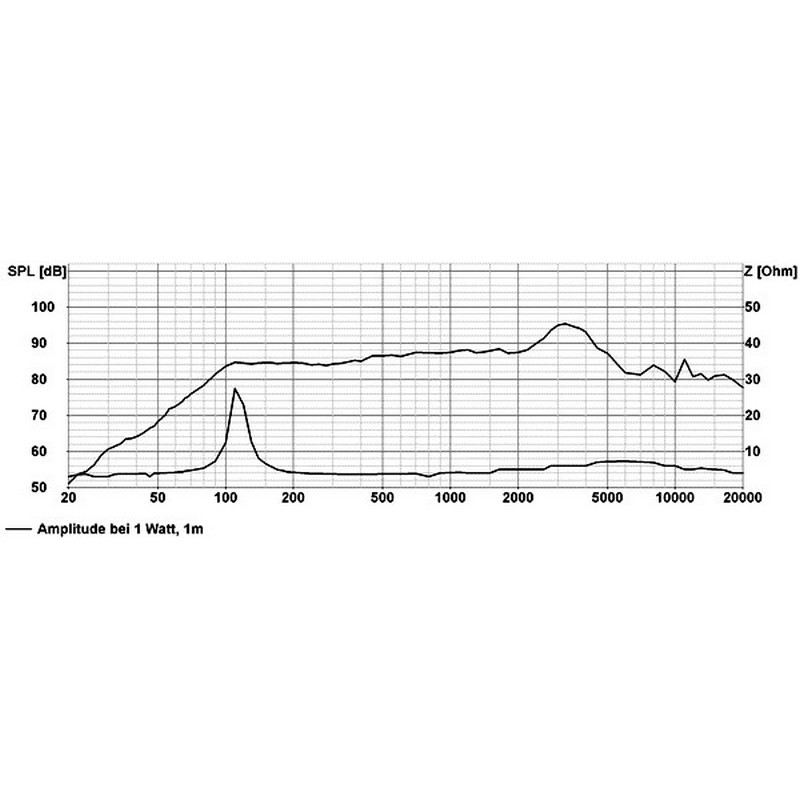

Transmission range (-10 dB) 70–20000 Hz
Medium sound pressure level 86 dB (1 W/1 m)

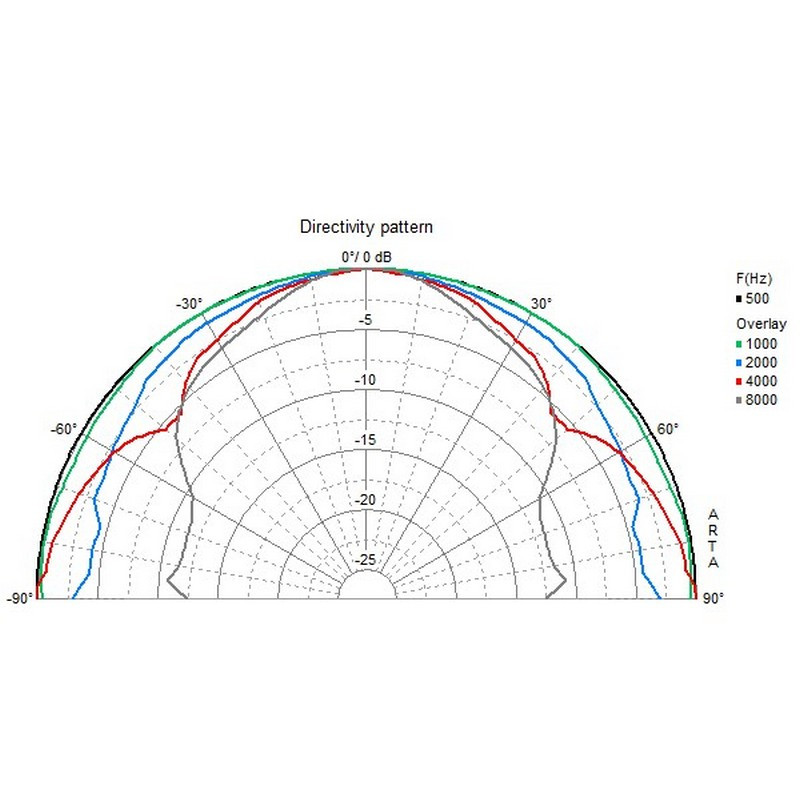

Beam angle (-6 dB) 180°/4000 Hz
Border deflection +/-2.5 mm
Reaction frequency fs 90 Hz
Magnetic induction 1,1 T
Magnetic flux 345 μWb
Upper pole plate height 4 mm
Oscillating coil diameter 25 mm/14 mm
Winding height 7 mm

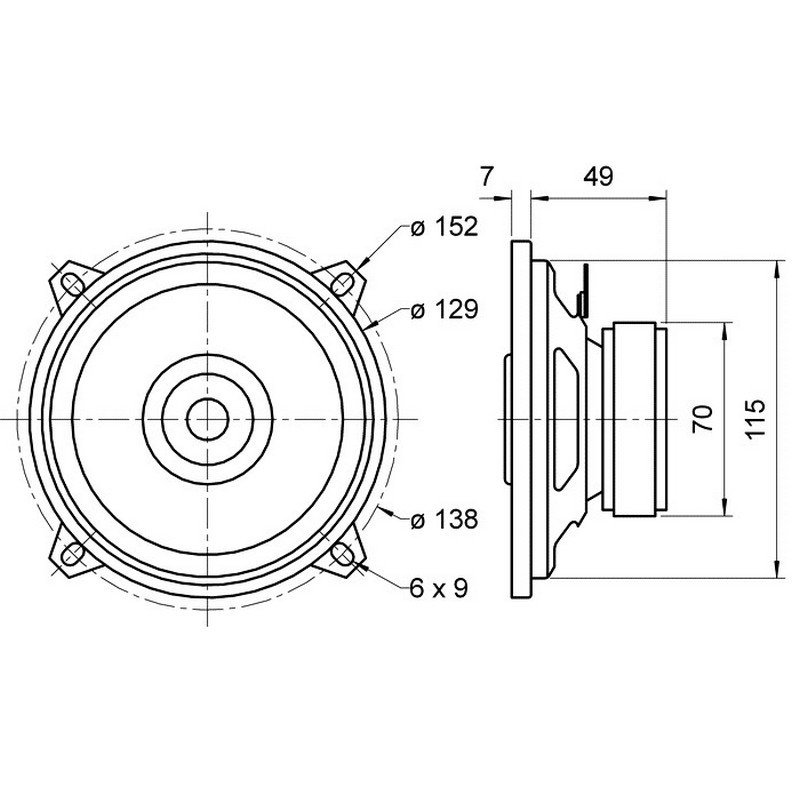

Sound wall opening 116 mm
Weight net 0,6 %
DC resistance Rdc 3,3 ohm
Mechanical Q-factor Qms 8,51
Electric Q-factor Qes 1,07
Total Q factor Qts 0,95
Effective membrane surface Sd 88 cm2
Vibration coil inductance L 0,39 mH
Temperature range −25 ... 70 °C
