Visaton FX 16 WP - 4 Ohm coaxial speaker
Seawater resistant 16 cm (6.5") 2-way coaxial loudspeaker
Visaton FX 16 WP - 4 Ohm coaxial speaker
Seawater resistant 16 cm (6.5") 2-way coaxial loudspeaker
€96.78
Our previous price
€138.25
Save 30%
€48.39 pro Stück
Tax included
Shipping excluded
4-0153
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Couple price!

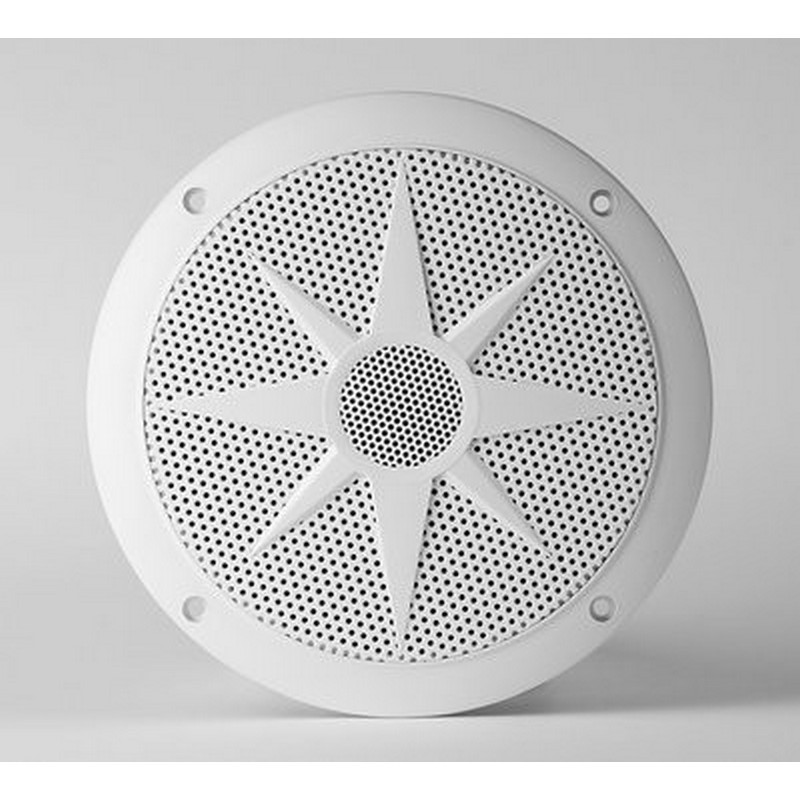

Seawater resistant 16 cm (6.5") 2-way coaxial loudspeaker with injection molded plastic membrane as well as plastic basket and grid.
Absolutely corrosion-resistant and water-resistant by magnetic cladding and silicone sheathing of the feed line.
Additional tweeter at the centre of the windscreen design.
Color: White.
Includes sealing ring and installation template.
*) IP protection class for front side when installed in a sealed housing
Applications
- External sound systems
- Speakers for boats and ships
Characteristics
- seawater festival
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- Plastic: ASA (UL 94:HB; UV/weather resistant)
- ball throw-proof
Technical data
| Rated load capacity | 80 W |
|---|---|
| Music loading | 100 W |
| Nominal impedance Z | 4 Ohms |

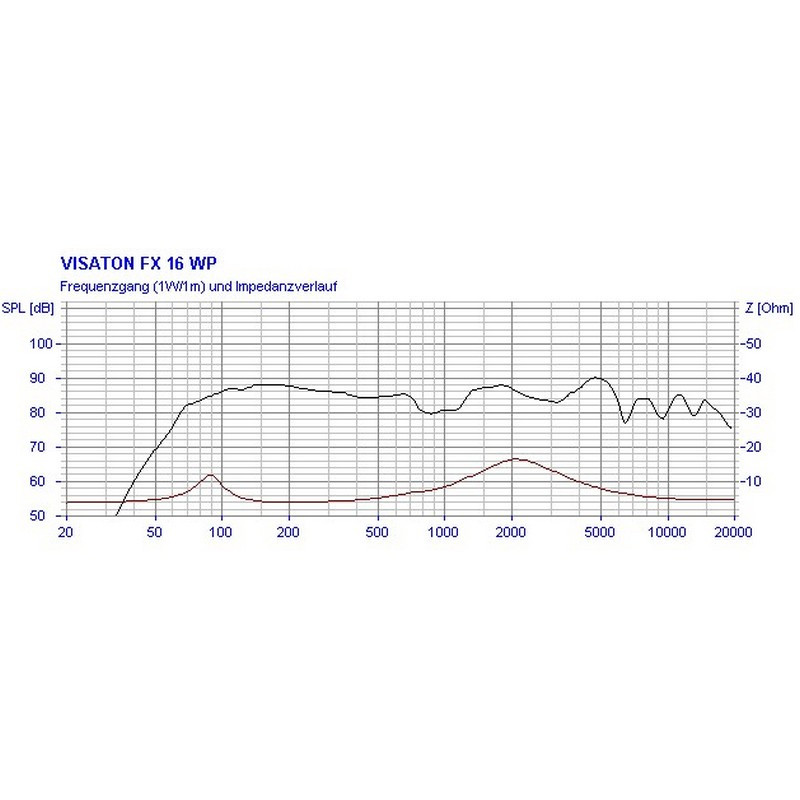

| Transmission range (-10 dB) | 60–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |
| Reaction frequency fs | 85 Hz |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 7 mm |

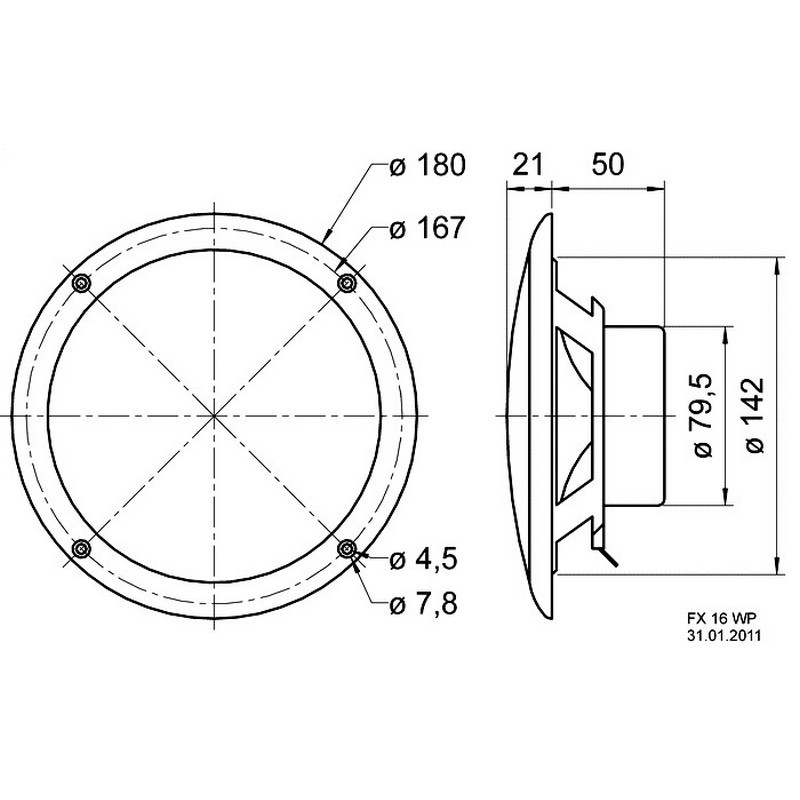

| Sound wall opening | 142 mm |
| Weight net | 0,46 % |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Protection class | IP 65 *) |
| Temperature range | −40 – 80 °C |
| Colour | white |
