Visaton DX 4x6 - 4 Ohm coaxial loudspeaker
9 x 15 cm (4" x 6") 2-way coaxial speaker
Visaton DX 4x6 - 4 Ohm coaxial loudspeaker
9 x 15 cm (4" x 6") 2-way coaxial speaker
€24.65
Our previous price
€35.21
Save 30%
Tax included
Shipping excluded
4-0149
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

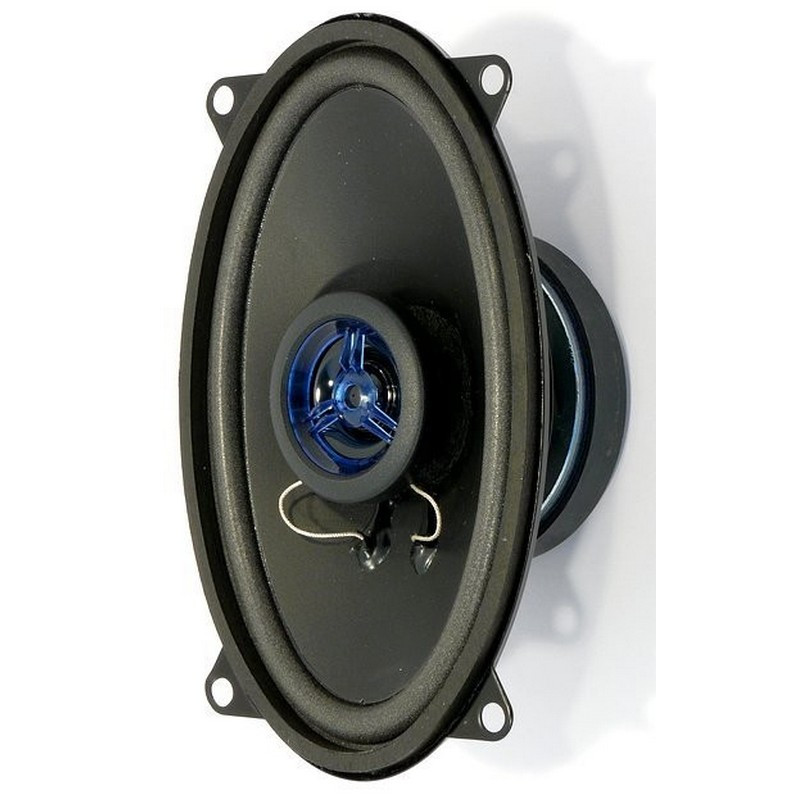

9 x 15 cm (4" x 6") 2-way coaxial speaker with polypropylene membrane and Euro standard basket.
Integrated frequency switch (condenser) for the tweeter.
Easy installation in vehicles with installation locations for 9 x 15-cm speakers.
including mounting material
Applications
- Vehicles
- motorhome
Characteristics
- Moisture-impregnated membrane
- Metal basket
- coaxial speakers
Technical data
| Rated load capacity | 30 W |
|---|---|
| Music loading | 50 W |
| Nominal impedance Z | 4 Ohms |

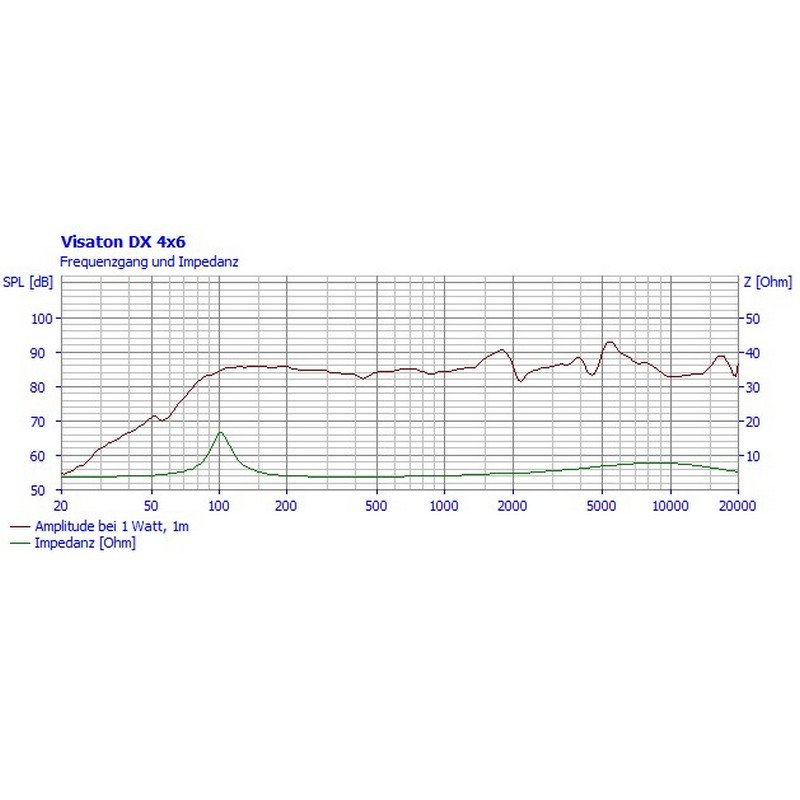

| Transmission range (-10 dB) | 65–22000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

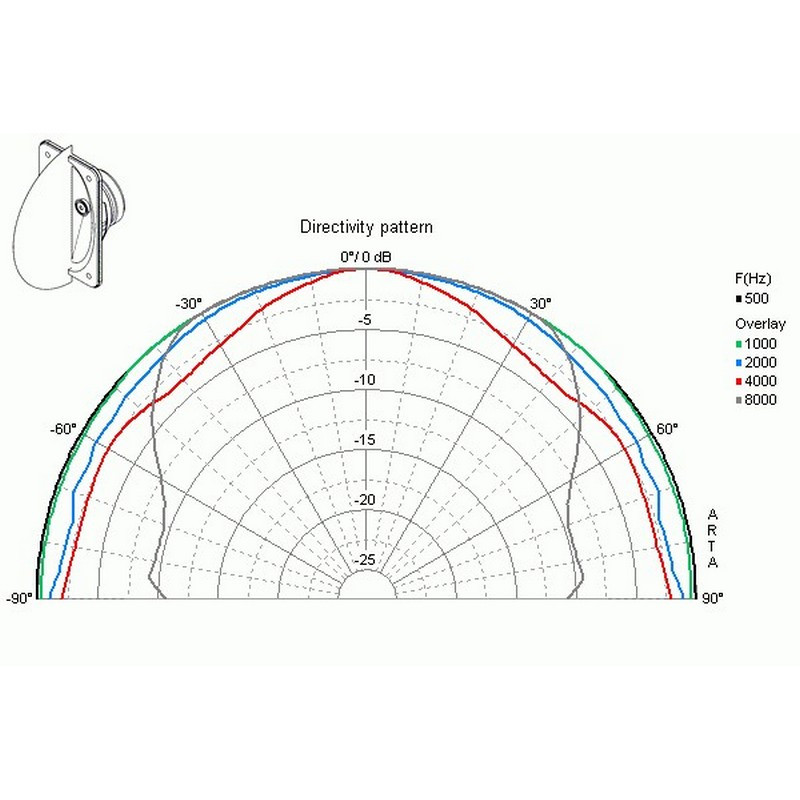

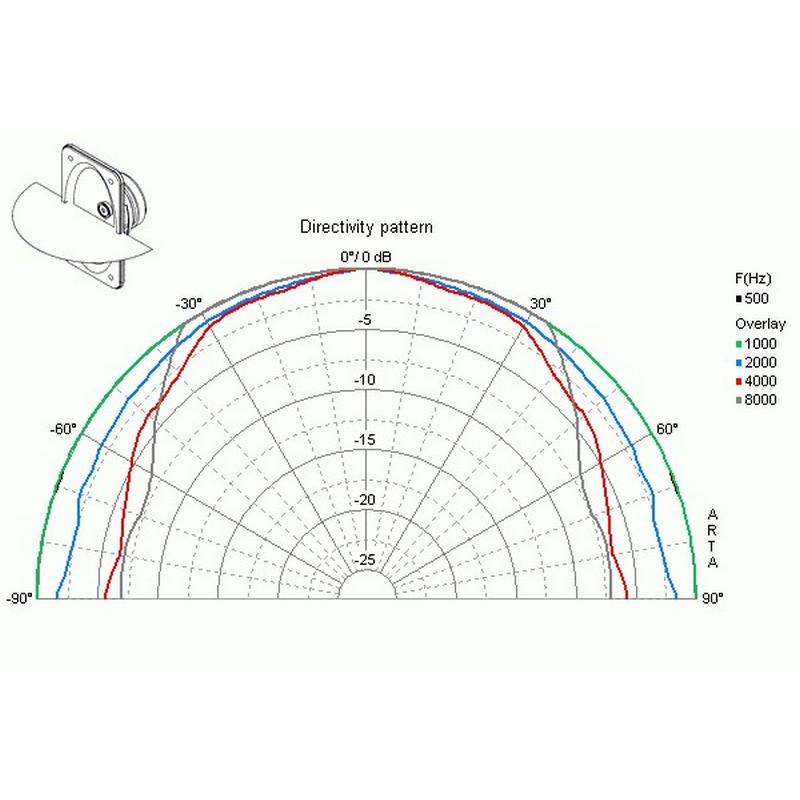

| Beam angle (-6 dB) | 140°/4000 Hz. 180°/4000 Hz. |
| Border deflection | +/-1.5 mm |
| Reaction frequency fs | 90 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 190 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm / 14 mm |
| Winding height | 5 mm |

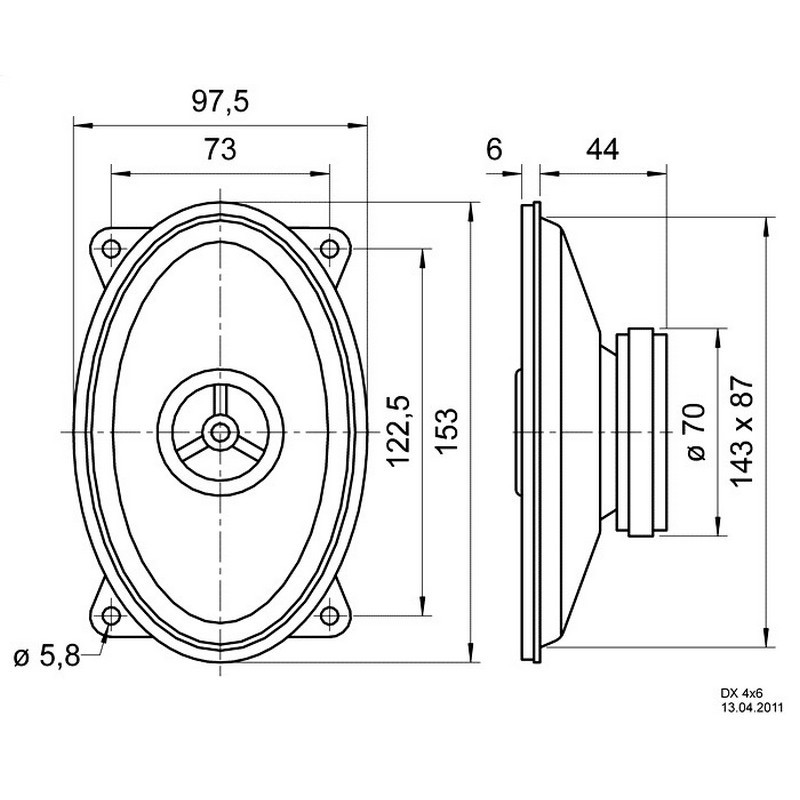

| Sound wall opening | 88 x 144 mm (oval) |
| Weight net | 0,423 kg |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
