Visaton FX 13 - 4 Ohm coaxial loudspeaker
13 cm (5") 2-way coaxial loudspeaker
Visaton FX 13 - 4 Ohm coaxial loudspeaker
13 cm (5") 2-way coaxial loudspeaker
€23.88
Our previous price
€34.11
Save 30%
Tax included
Shipping excluded
4-0151
2 Items
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

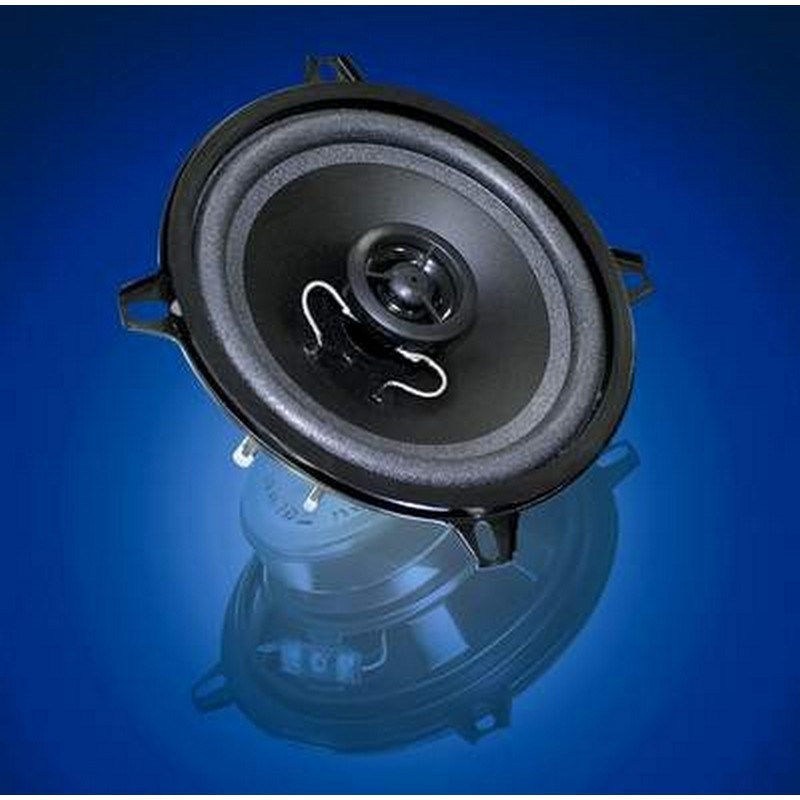

13 cm (5") 2-way coaxial loudspeaker with Euro standard basket.
Integrated frequency switch (condenser) for the tweeter.
Easy installation in vehicles with installation locations for 13 cm loudspeakers.
Waterproof polypropylene membrane.
Applications
- Vehicles
- motorhome
Characteristics
- Waterproof membrane
- Metal basket
- coaxial speakers
Technical data
| Rated load capacity | 30 W |
|---|---|
| Music loading | 50 W |
| Nominal impedance Z | 4 Ohms |

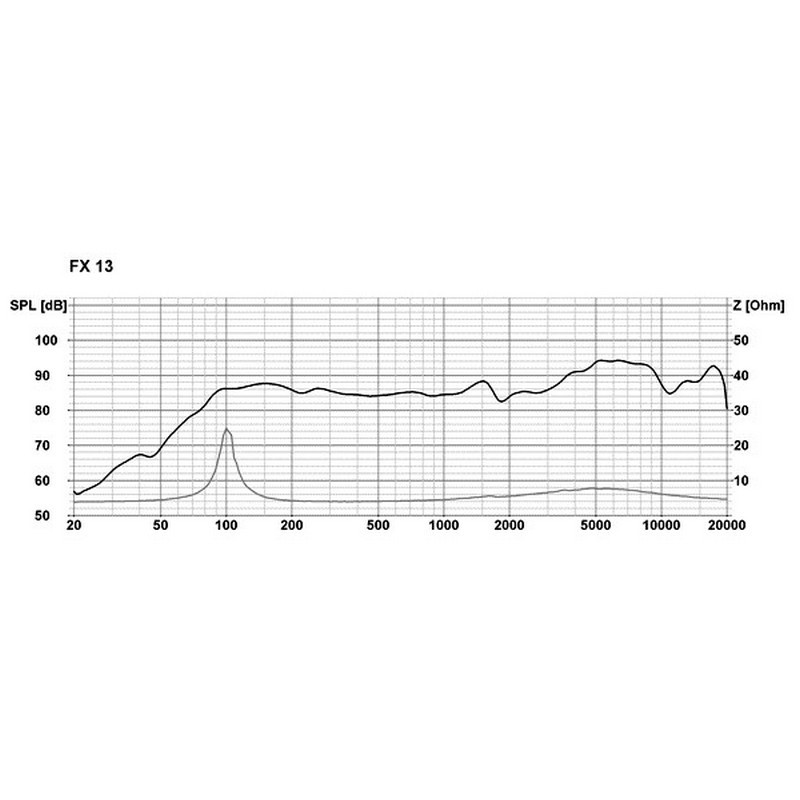

| Transmission range (-10 dB) | 60–20000 Hz |
| Medium sound pressure level | 85 dB (1 W/1 m) |

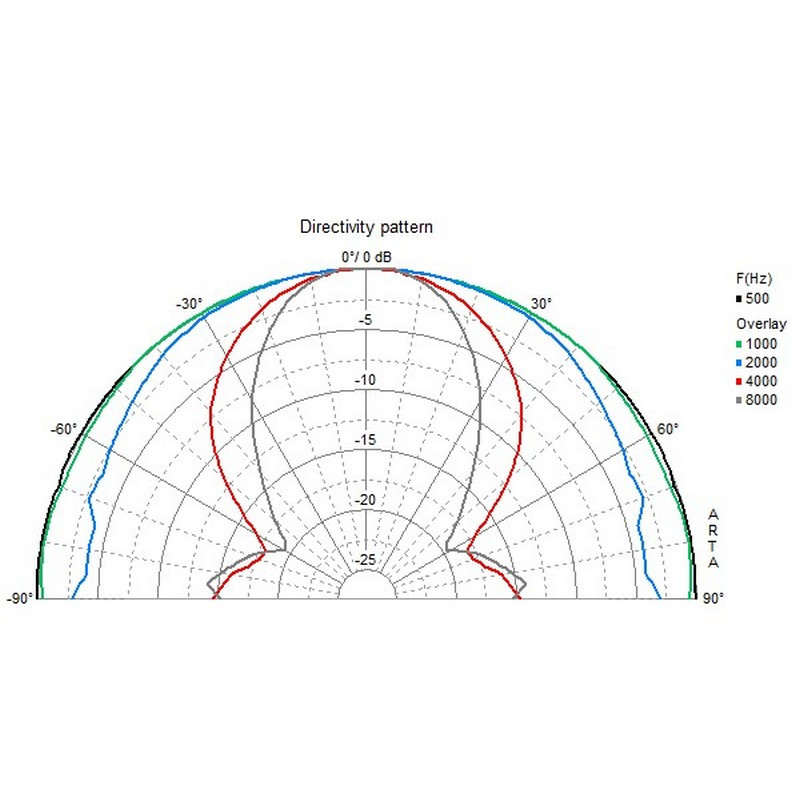

| Beam angle (-6 dB) | 72°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 100 Hz |
| Magnetic induction | 1.0 |
| Magnetic flux | 250 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 6 mm |

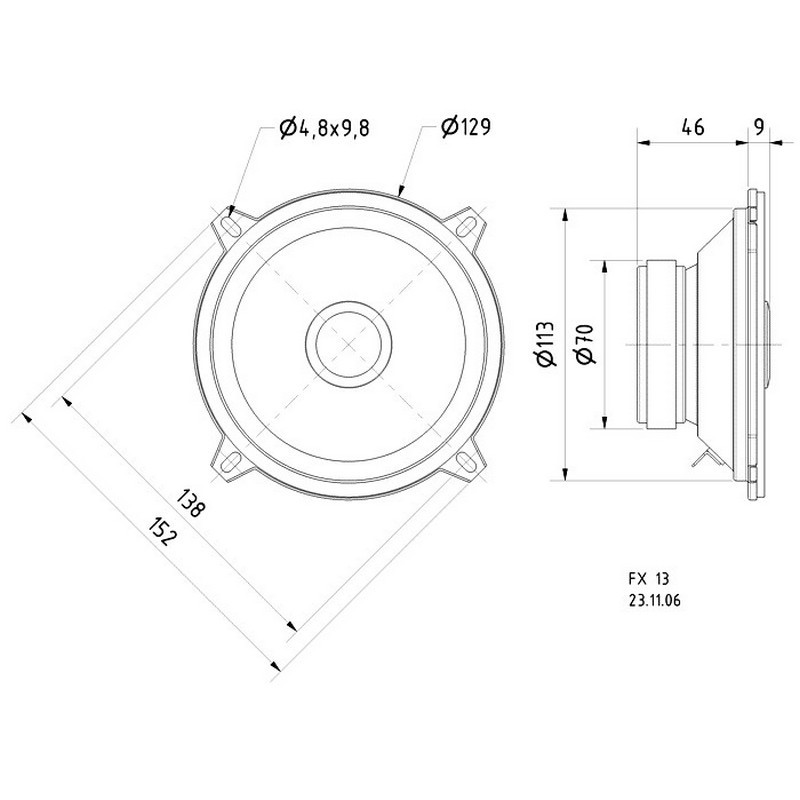

| Sound wall opening | 115 mm |
| Weight net | 0,51 % |
| Connections | 4,8 x 0,8 mm (+) 2,8 x 0,8 mm (-) |
| Temperature range | −25 ... 70 °C |
