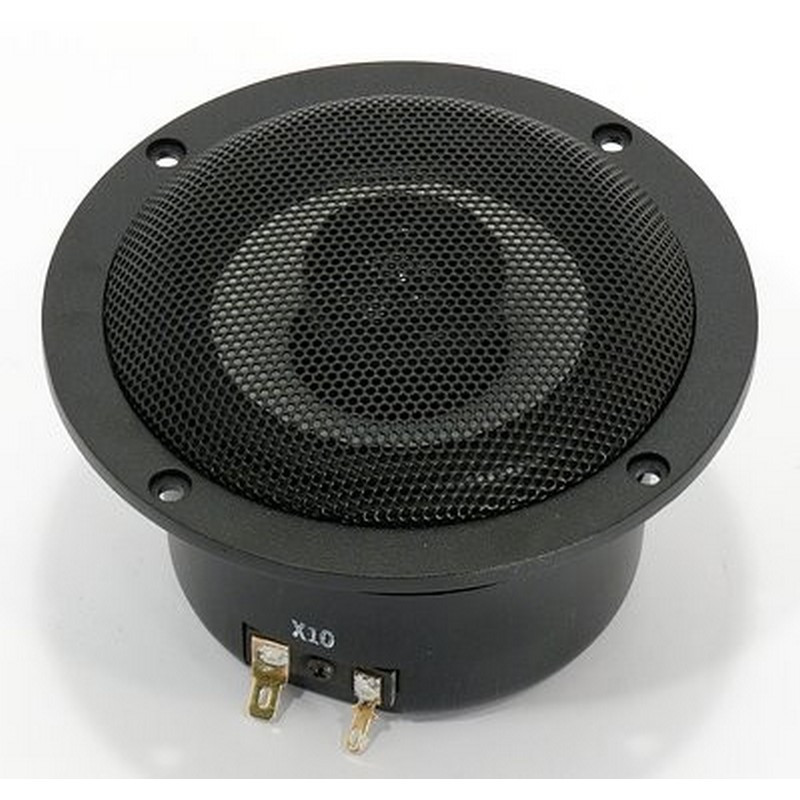

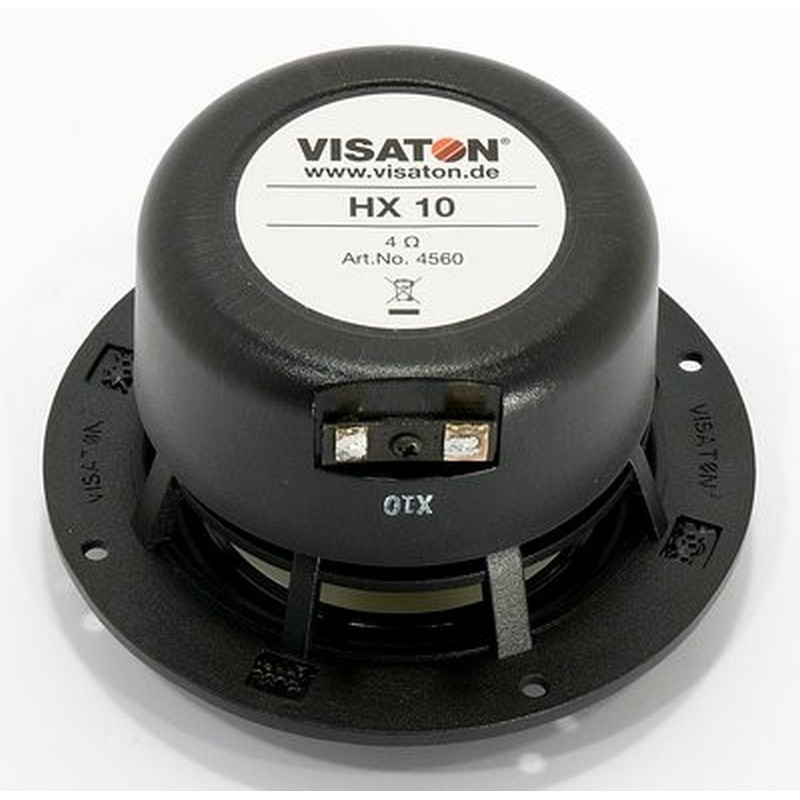

Visaton HX 10 - 4 Ohm coaxial loudspeaker

10 cm (4") High-end 2-way coaxial loudspeaker

€97.55
Our previous price €139.35
Save 30%
Tax included Shipping excluded
Coaxial loudspeaker
4-0154
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

10 cm (4") High-end 2-way coaxial loudspeaker with very wide transmission range and particularly balanced frequency response.

The main characteristics of the HX 10:

- extremely light and stable aluminum membrane

- high quality tweeter; integrated grid; Neodymium drive

- space-saving on the back under a plastic cap

- connection via flat plug 4,8 x 0,8 mm (+) and 2,8 x 0,8 mm (-)

- 25mm coil for high load capacity

Technical data

Rated load capacity 40 W
Music loading 60 W
Nominal impedance Z 4 Ohms

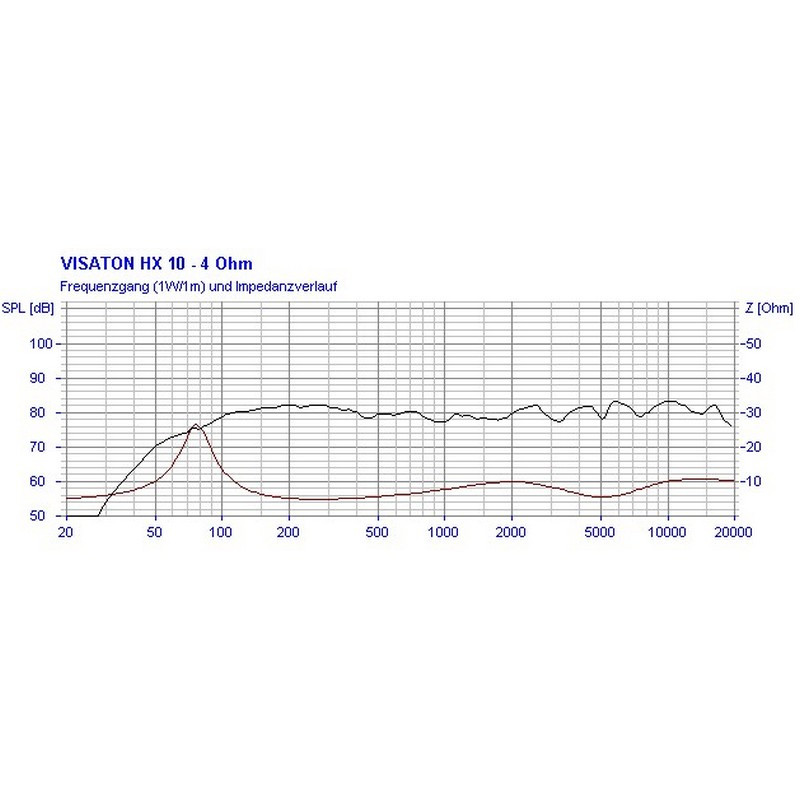

Transmission range (-10 dB) 50–22000 Hz
(fu: lower limit frequency depending on the housing) .
Medium sound pressure level 81 dB (1 W/1 m)
Maximum linear stroke +/-1.5 mm
Reaction frequency fs 70 Hz
Magnetic induction 1,1 T
Magnetic flux 346 μWb
Upper pole plate height 4 mm
Oscillating coil diameter 25 mm
Winding height 7 mm

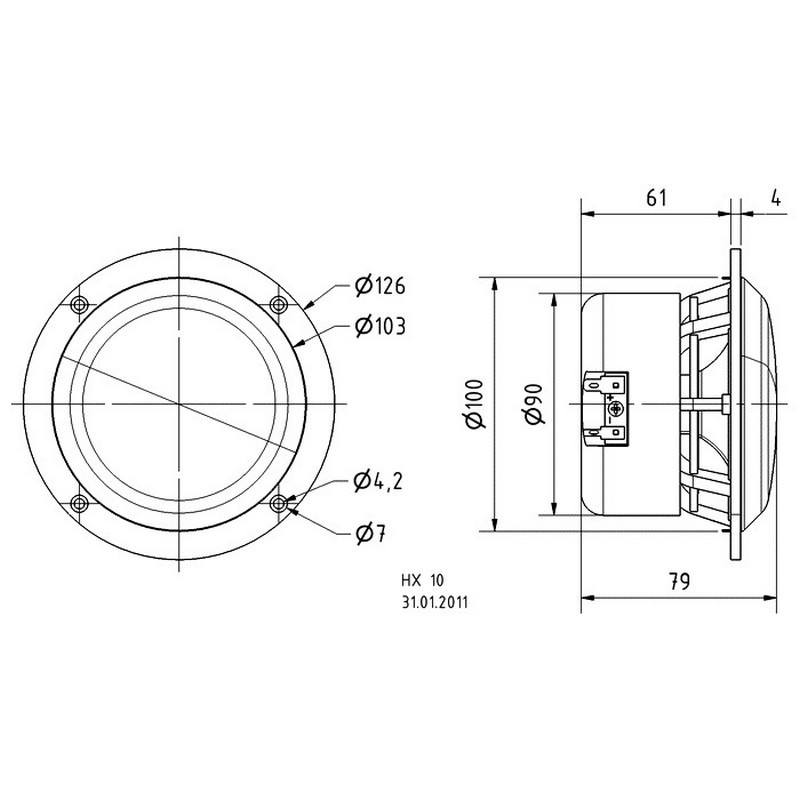

Sound wall opening 101 mm
Weight net 0,52 kg
DC resistance Rdc 4.3 Ohm
Mechanical Q-factor Qms 2,87
Electric Q-factor Qes 0,61
Total Q factor Qts 0,50
Equivalent air yield volume Vas 5.1 l
Effective membrane surface Sd 55 cm2
Dynamic moving mass Mms 4.3 g
Drive factor Bxl 3,9 Tm
Takeover frequency 4300 Hz
Connections 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-)
Temperature range −25 ... 70 °C
