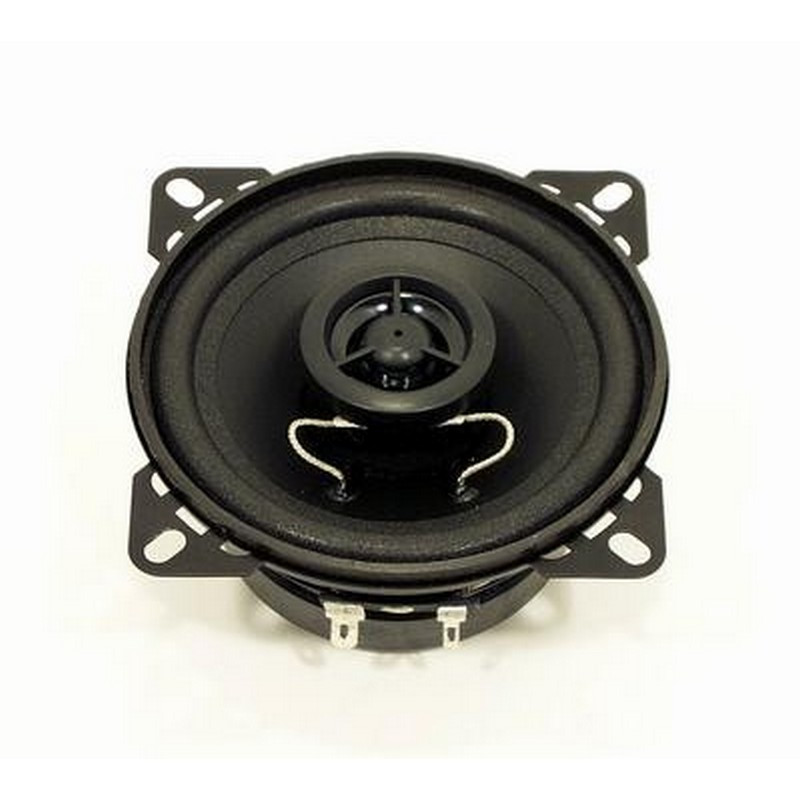

Visaton PX 10 - 4 Ohm coaxial loudspeaker
10 cm (4") 2-way coaxial loudspeaker
Visaton PX 10 - 4 Ohm coaxial loudspeaker
10 cm (4") 2-way coaxial loudspeaker
€14.60
Our previous price
€20.86
Save 30%
Tax included
Shipping excluded
4-0155
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
10 cm (4") 2-way coaxial loudspeaker with Euro standard basket and piezo tweeter.
Easy installation in vehicles with installation locations for 10-cm speakers.
Waterproof polypropylene membrane.
Applications
- Vehicles
- motorhome
Characteristics
-polypropylene membrane
- Metal basket
- coaxial speakers
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |

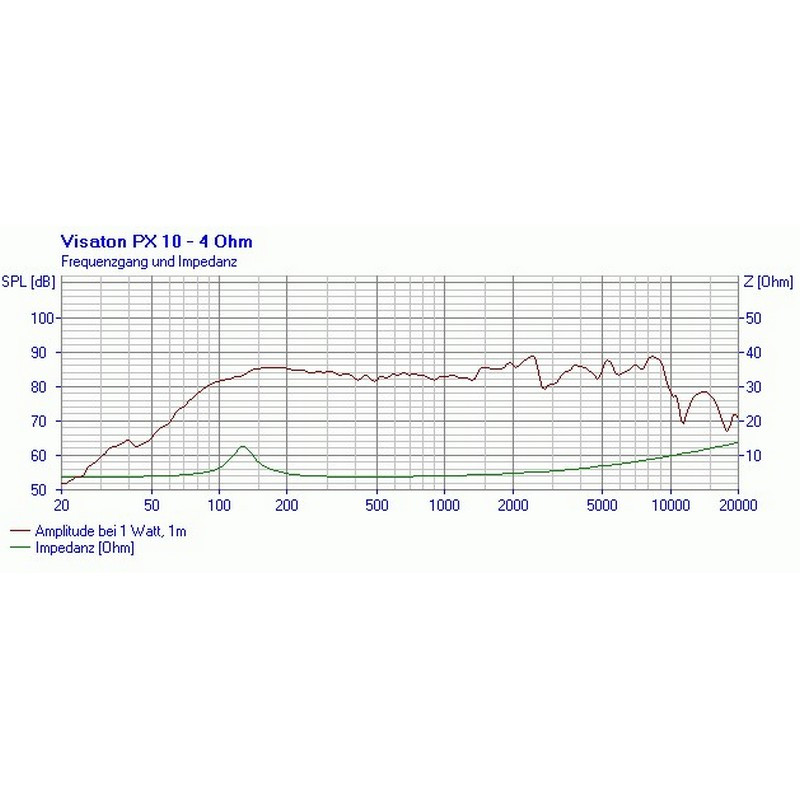

| Transmission range (-10 dB) | 70–18000 Hz |
| Medium sound pressure level | 83 dB (1 W/1 m) |

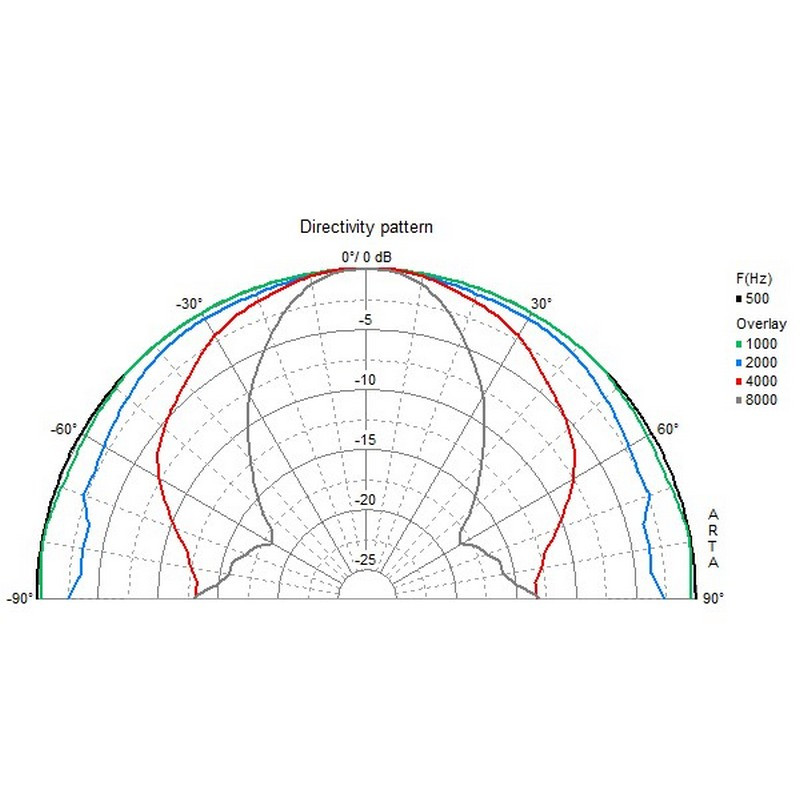

| Beam angle (-6 dB) | 107°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 110 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5.2 mm |

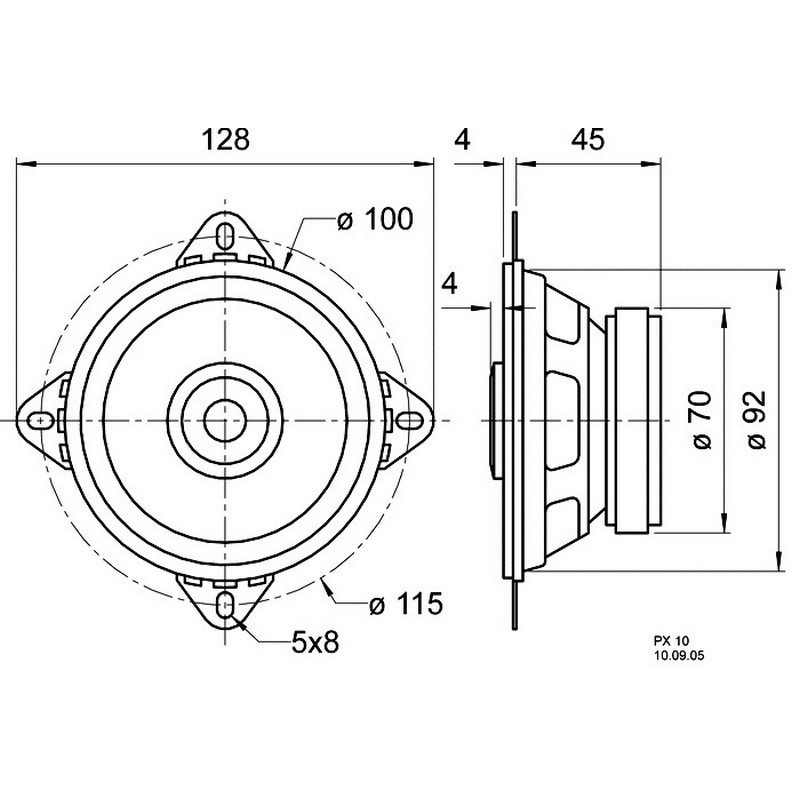

| Sound wall opening | 93 mm |
| Weight net | 0,385 % |
| Temperature range | −25 ... 70 °C |
