Visaton PX 13 - 4 Ohm coaxial loudspeaker
13 cm (4") 2-way coaxial loudspeaker
Visaton PX 13 - 4 Ohm coaxial loudspeaker
13 cm (4") 2-way coaxial loudspeaker
€22.01
Our previous price
€31.44
Save 30%
Tax included
Shipping excluded
4-0156
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

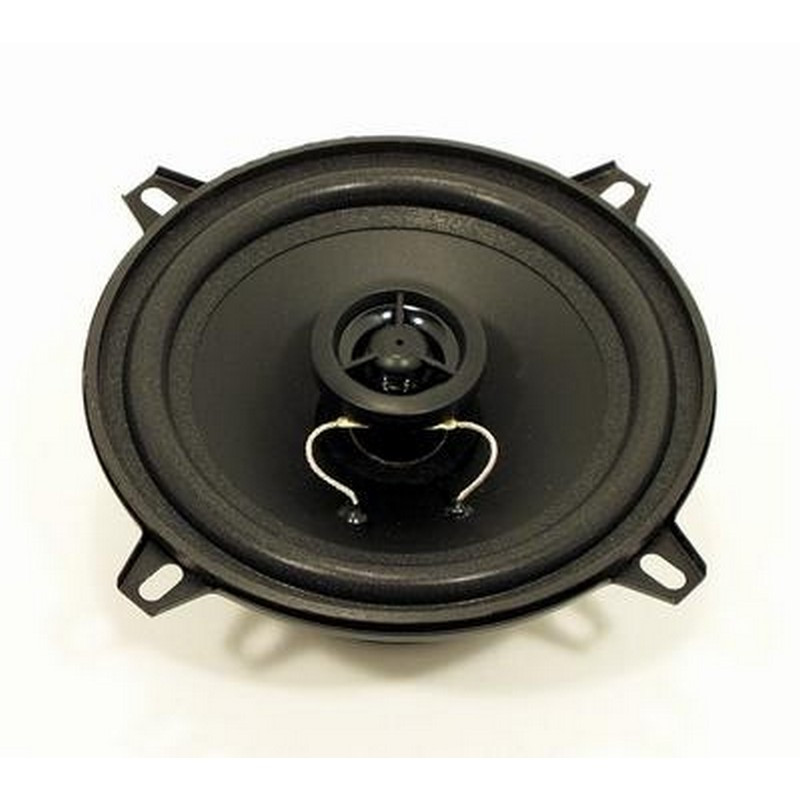

13 cm (5") 2-way coaxial loudspeaker with Euro standard basket and piezo tweeter.
Easy installation in vehicles with installation locations for 13 cm loudspeakers.
Applications
- Vehicles
- motorhome
Characteristics
-polypropylene membrane
- Metal basket
- coaxial speakers
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |
| Transmission range (-10 dB) | 60–15000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

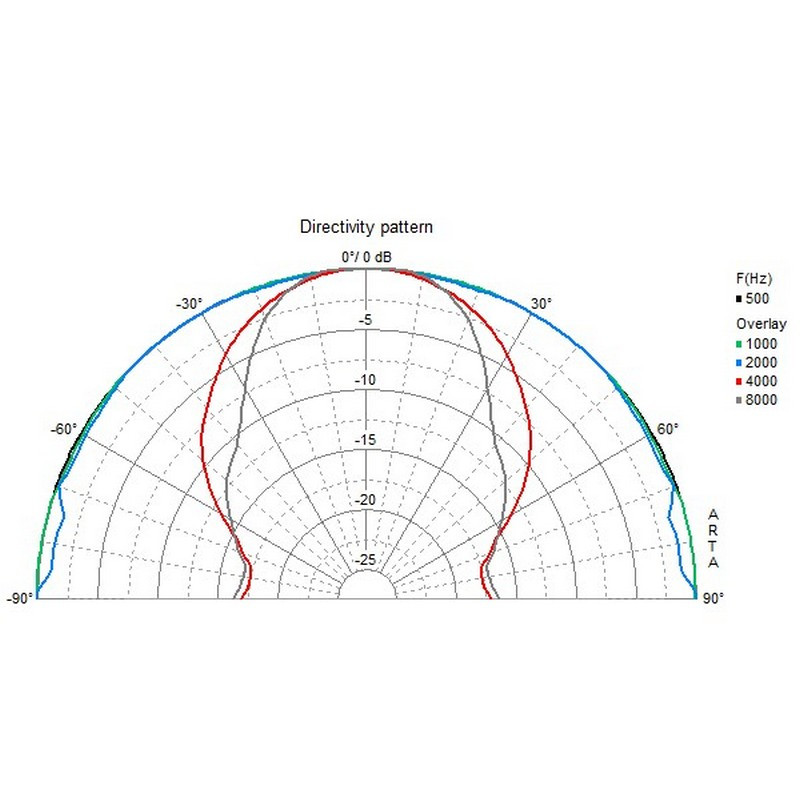

| Beam angle (-6 dB) | 75°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 95 Hz |
| Magnetic induction | 1.0 |
| Magnetic flux | 190 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5.5 mm |
| Sound wall opening | 116 mm |
| Weight net | 0.4% |
| Temperature range | −25 ... 70 °C |
