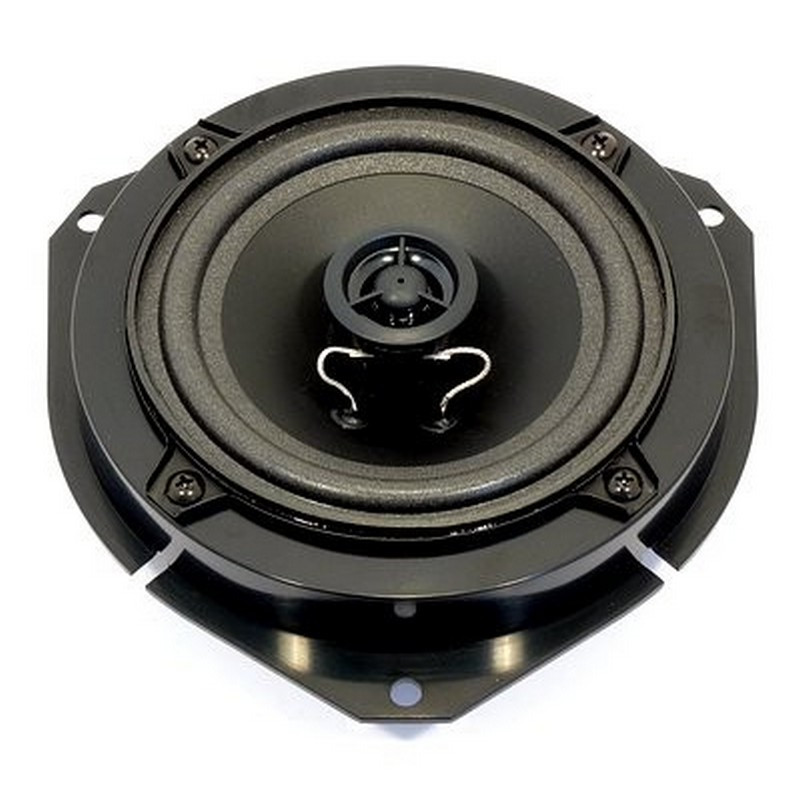

Visaton PX 13 B - 4 Ohm coaxial loudspeaker
13 cm (5") 2-way coaxial loudspeaker
Visaton PX 13 B - 4 Ohm coaxial loudspeaker
13 cm (5") 2-way coaxial loudspeaker
€25.17
Our previous price
€35.95
Save 30%
Tax included
Shipping excluded
4-0157
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
13 cm (5") 2-way coaxial loudspeaker with piezo tweeter and adapter ring for installation in the doors of the Fiat Ducato (models from 2006).
Applications
- Vehicles
- motorhome
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |

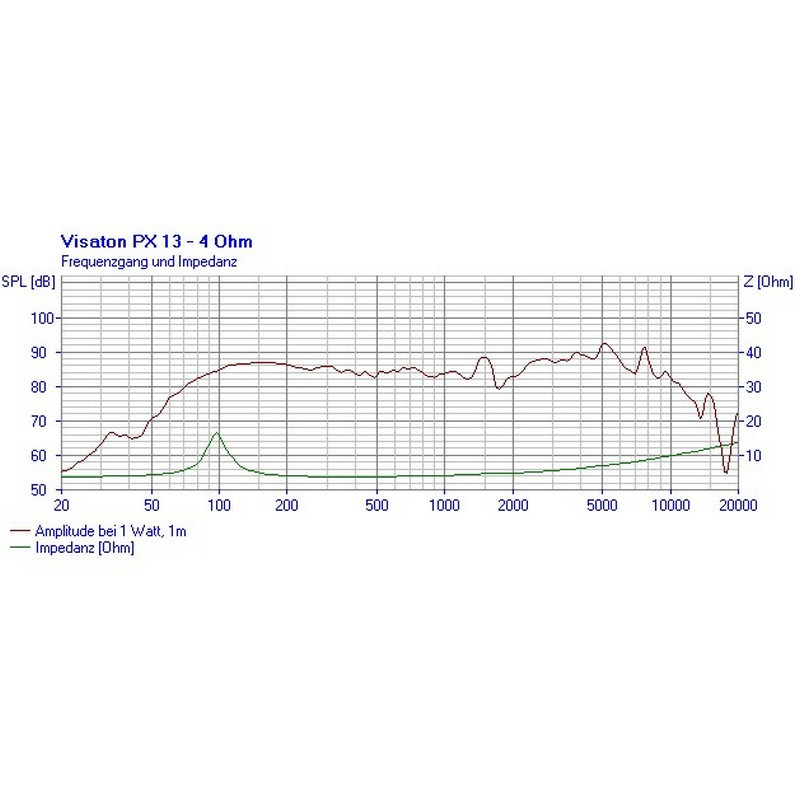

| Transmission range (-10 dB) | 60–15000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

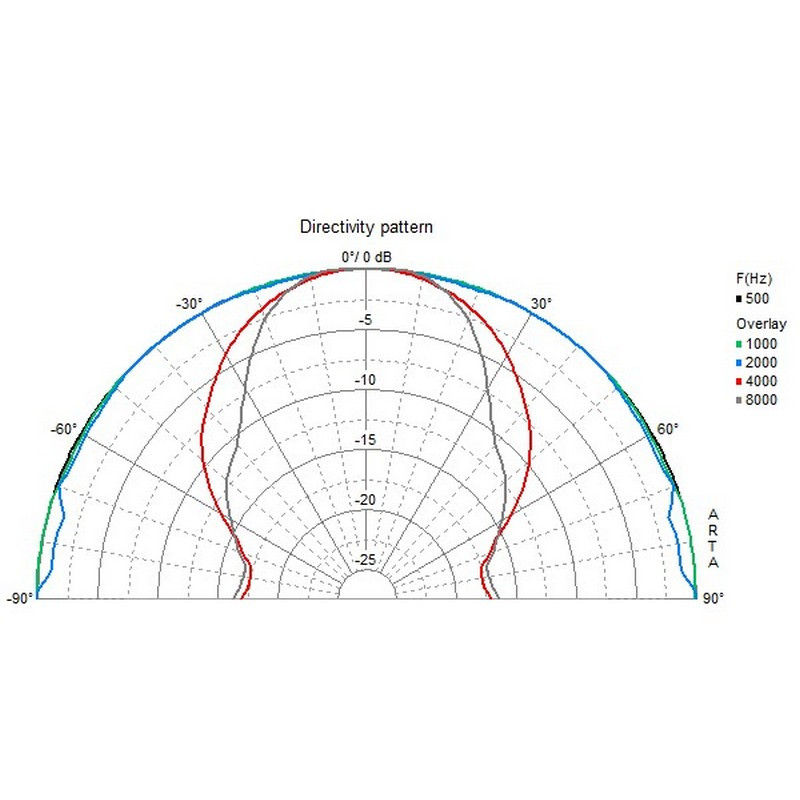

| Beam angle (-6 dB) | 75°/4000 Hz |
| Border deflection | +/-2 dB |
| Reaction frequency fs | 95 Hz |
| Magnetic induction | 1.0 |
| Magnetic flux | 190 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5.5 mm |
| Weight net | 0,53 kg |
| Temperature range | −25 ... 70 °C |
