• -30%
Visaton AMP 2.2 Visaton AMP 2.2
Visaton AMP 2.2
Visaton AMP 2.2

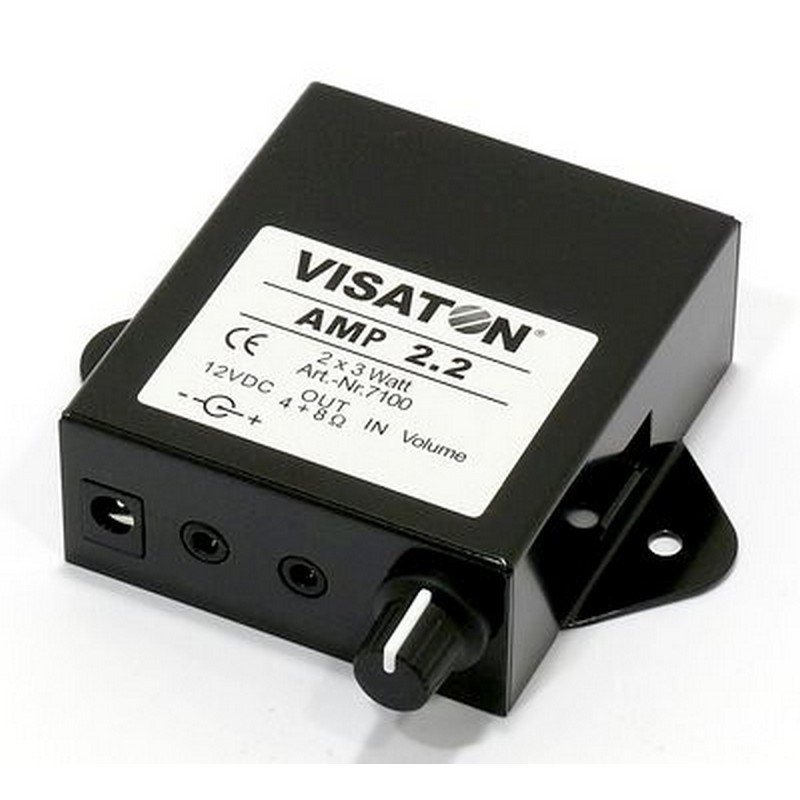

Visaton AMP 2.2 Stereo amplifier

Stereo amplifier

€37.12
Our previous price €53.03
Save 30%
Tax included Shipping excluded 7 working days
Full amplifier
6-0004
Quantity
Wishlist
Compare
available from the manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Stereo amplifier with level adjuster, z.B. for multimedia applications. Suitable for operation of small speakers with 4 to 8 ohm impedance. Robust metal housing with two fastening straps. Can be connected directly to the line or headphone output of a computer sound card, the input sensitivity is adjusted via the level controller. The voltage supply (12 V) is possible via a power supply (not supplied) or the supply voltage of the computer. Short circuit.

Differences between AMP 2.2 and AMP 2.2 LN:

- Different signal-to-noise distance

- Different input sensitivities for full control


For mobile audio applications (phones, MP3 player etc.) we recommend the AMP 2.2, for stationary (CD player, PC) the AMP 2.2 LN.

Applications

- Info terminals

- Computer monitors

- sales directors



Technical data

Supply voltage 12 V DC
Current 46 mA
Input impedance 10 kOhm
Max. power consumption 1.1 A
Output power (sinus, 1% / 5% / 10% THD) 2 x 2,1 / 3,1 / 3,3 W (4 Ohm)
2 x 1,6 / 1.9 / 2.1 W (8 Ohm)
Input voltage (full control) 60 mV
Output impedance 1.1 Ohm
Signal-to-noise ratio 61 dB (A) / 59 dB (frequency)
Transmission range (-3 dB) 40 Hz–40 kHz
Connection on/off Key socket 3.5 mm Stereo
DC 5.4 mm Ø outside (-)
2.1 mm Ø inside (+)
Weight net 0,178 kg
Temperature range −10 – 50 °C
6-0004
