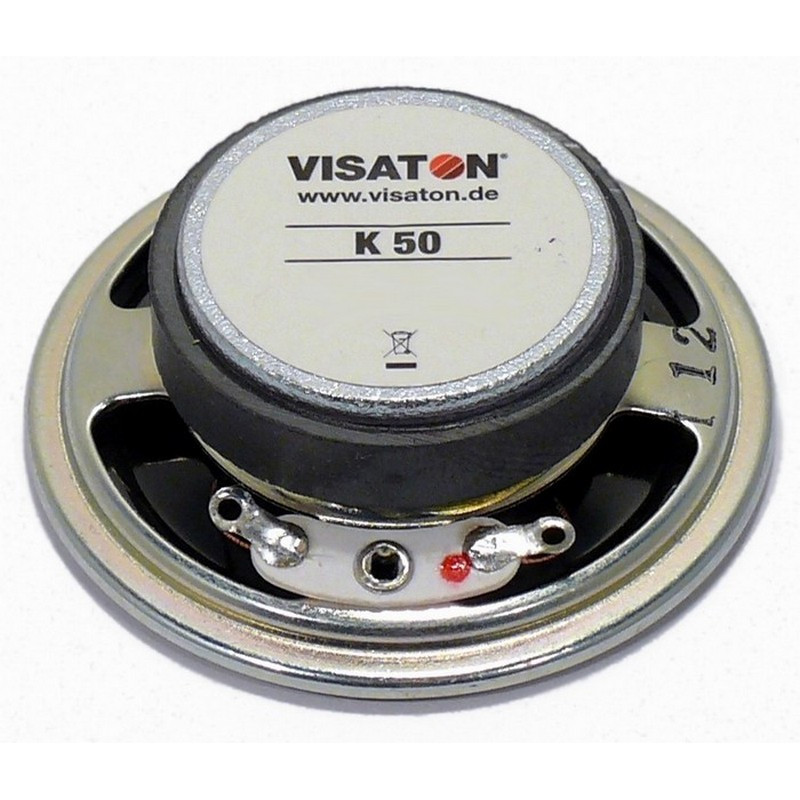

Visaton K 50 - 50 Ohm small speaker
5 cm (2") small speaker
Visaton K 50 - 50 Ohm small speaker
5 cm (2") small speaker
€2.46
Our previous price
€3.51
Save 30%
Tax included
Shipping excluded
4-0059
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

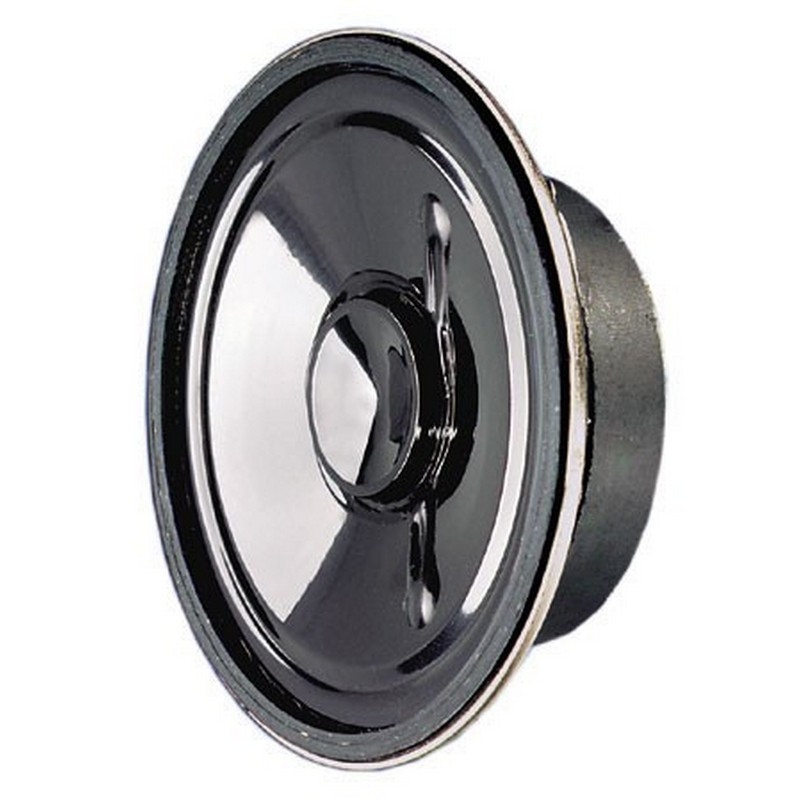

5 cm (2") small speaker with plastic membrane and metal basket.
Low size, therefore suitable for signal output in devices and installations where little space is available.
*) IP protection class for front side when installed in a sealed housing
Applications
- voice and signal output in internal and external devices
Characteristics
- Plastic: Mylar (Membran)
- Functional in cold according to EN 60068-2-1/EN 50155
- Metal design
- UV-resistant

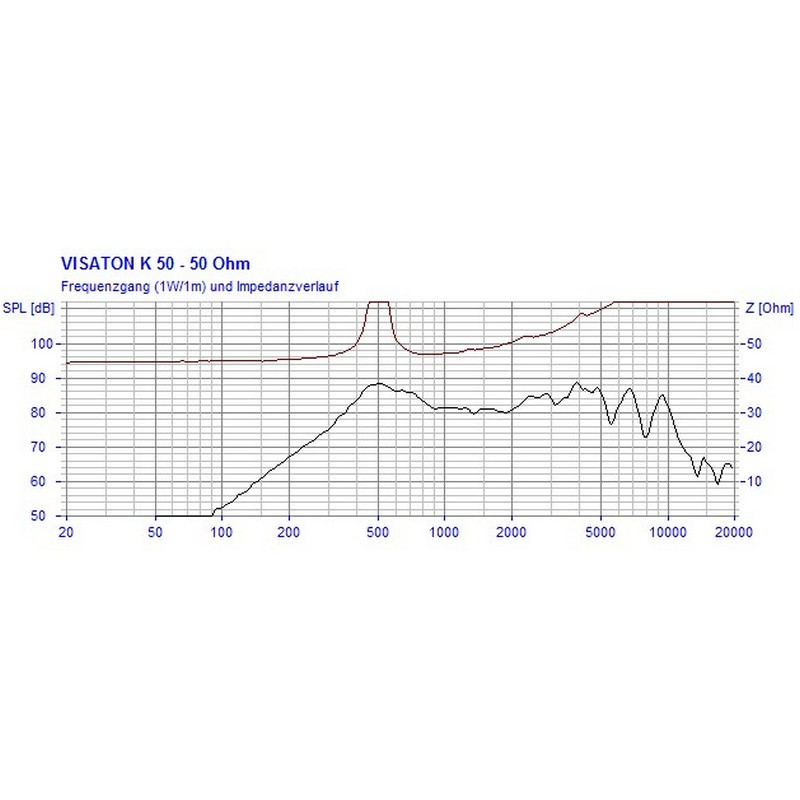

Technical data
| Rated load capacity | 2 W |
|---|---|
| Music loading | 3 W |
| Nominal impedance Z | 50 Ohm |
| Transmission range (-10 dB) | 250–12000 Hz |
| Medium sound pressure level | 83 dB (1 W/1 m) |

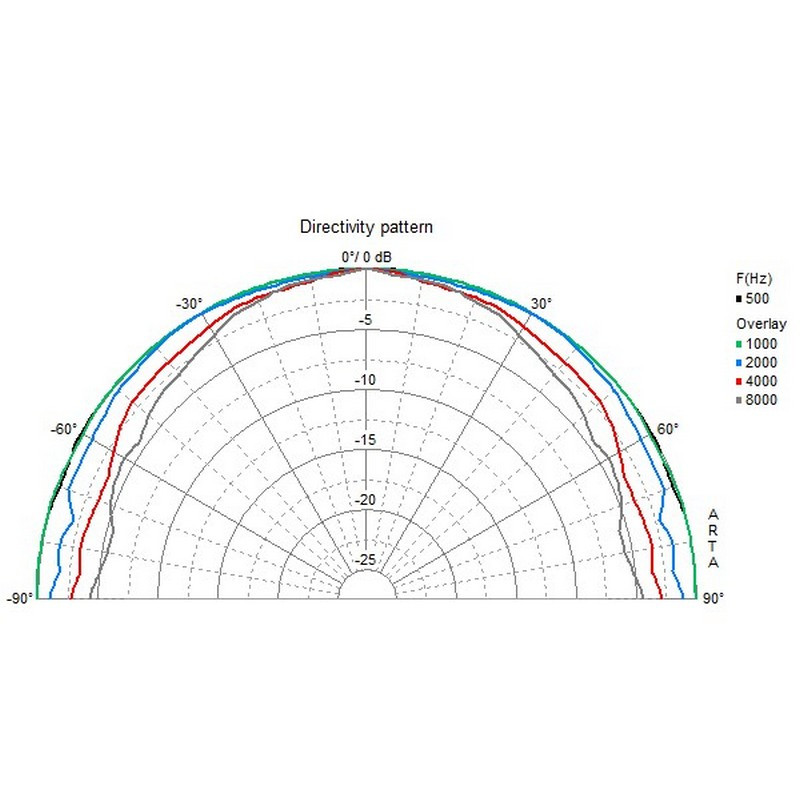

| Beam angle (-6 dB) | 180°/4000 Hz |
| Border deflection | +/-0.5 mm |
| Reaction frequency fs | 500 Hz |
| Upper pole plate height | 2 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 3 mm |

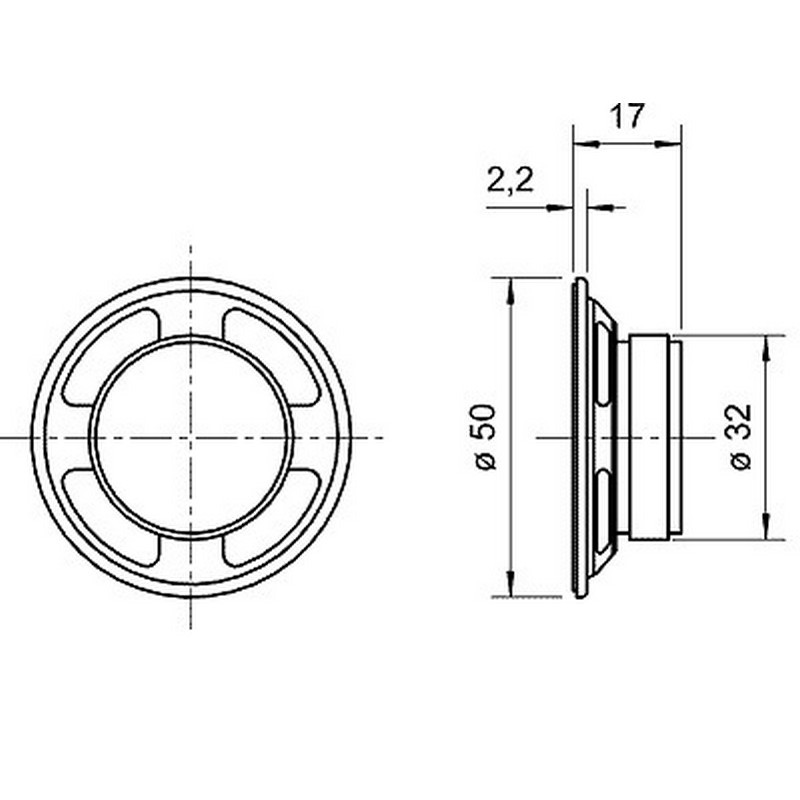

| Sound wall opening | 45 mm |
| Weight net | 0,05 kg |
| Protection class | IP 65 *) |
| Temperature range | −40 – 80 °C |
