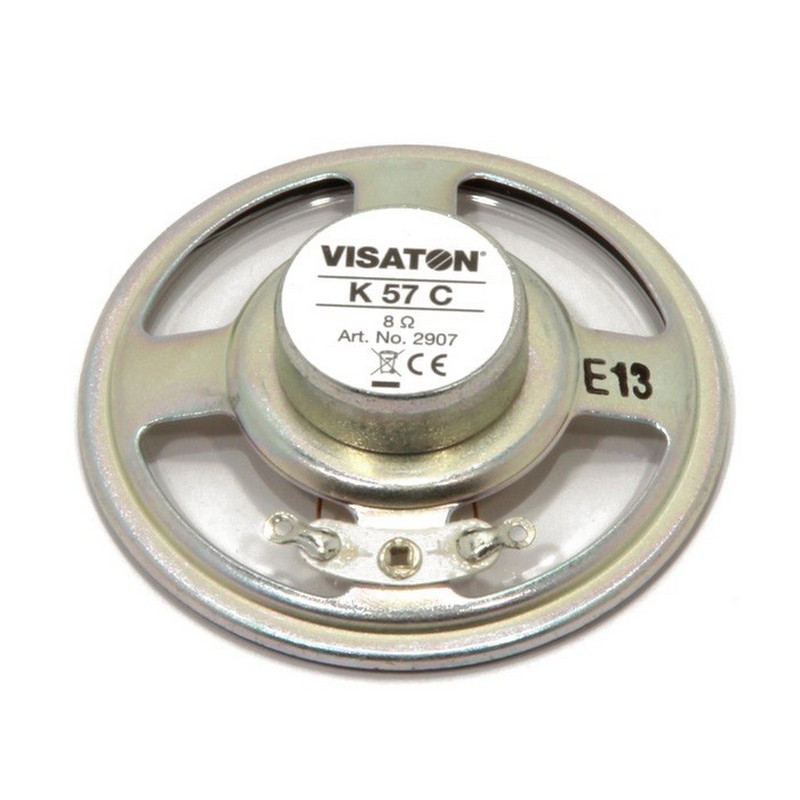

Visaton K 57 C - 8 Ohm small speaker
5.7 cm (2.2") small speaker
Visaton K 57 C - 8 Ohm small speaker
5.7 cm (2.2") small speaker
€3.91
Our previous price
€5.59
Save 30%
Tax included
Shipping excluded
4-0066
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

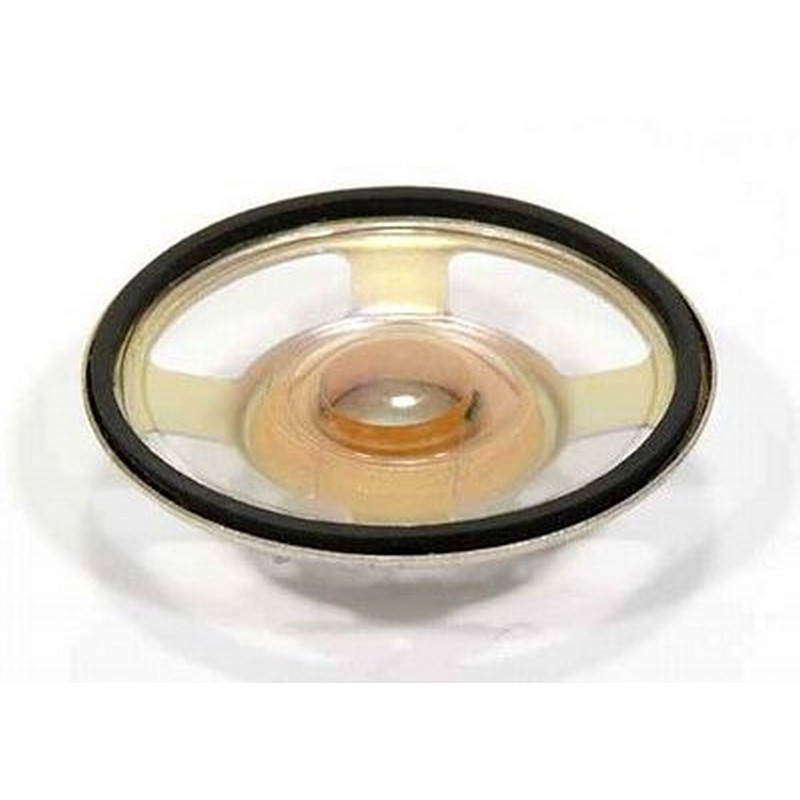

5.7 cm (2.2") small speaker with water-resistant, transparent mylar membrane and neodymium magnet.
Very easy.
Low height.
Applications in the outdoor area and under critical environmental influences are possible.
Suitable as a control loudspeaker in electrical devices.
Good language.
*) IP protection class for front side when installed in a sealed housing
Applications
- voice and signal output in devices where little space is available
Â
Technical data
| Rated load capacity | 2 W |
|---|---|
| Music loading | 3 W |
| Nominal impedance Z | 8 Ohm |

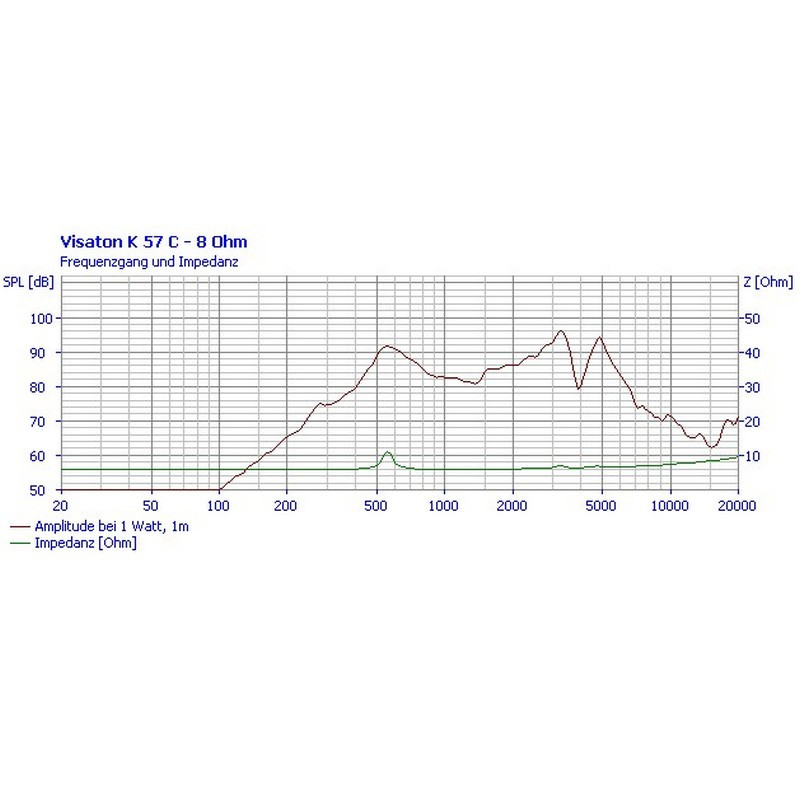

| Transmission range (-10 dB) | 350–6800 Hz |
| Medium sound pressure level | 87 dB (1 W/1 m) |
| Reaction frequency fs | 550 Hz |
| Weight net | 0,031 kg |
| Connections | 2.8 x 0.3 mm (solder lugs) |
| Protection class | IP 65 *) |
| Temperature range | −25 ... 70 °C |
