Visaton FR 8 JS - 8 Ohm broadband speakers
8 cm (3,3") broadband loudspeaker
Visaton FR 8 JS - 8 Ohm broadband speakers
8 cm (3,3") broadband loudspeaker
€10.38
Our previous price
€14.83
Save 30%
Tax included
Shipping excluded
4-0033
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

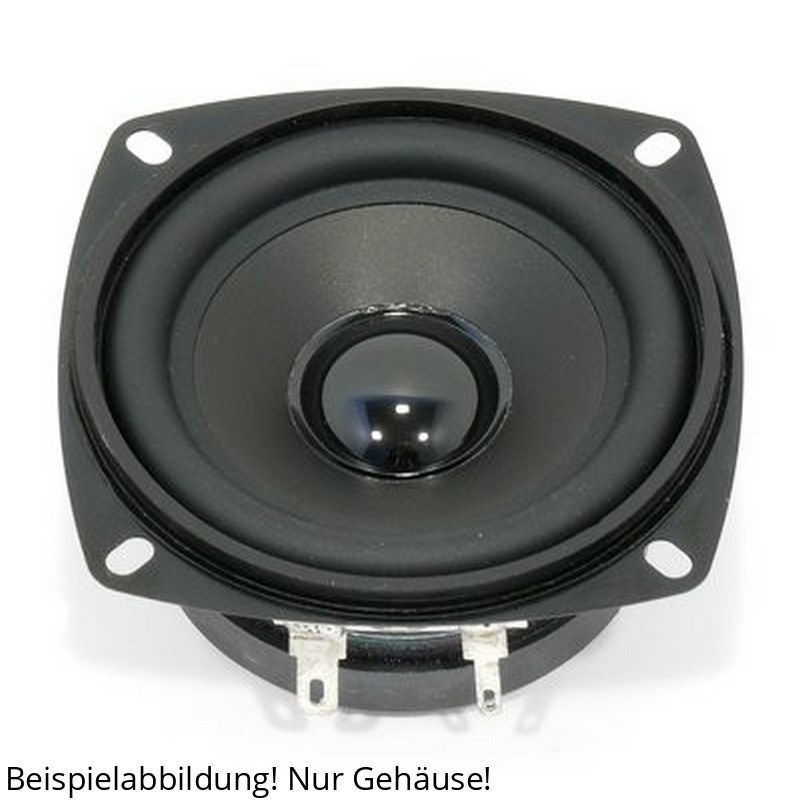

8 cm (3,3") broadband loudspeaker with water-resistant polypropylene membrane, good low-tone properties and balanced frequency response.
Particularly suitable as a built-in loudspeaker for music reproduction and for equipping ELA lines.
*) IP protection class for front side when installed in a sealed housing
Applications
- Narrow ELA lines
- Control loudspeaker
- Ceiling loudspeakers in rail vehicles and buses
- Electronic musical instruments
Â
Characteristics
- polypropylene membrane
- Metal design
Â
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 8 Ohm |

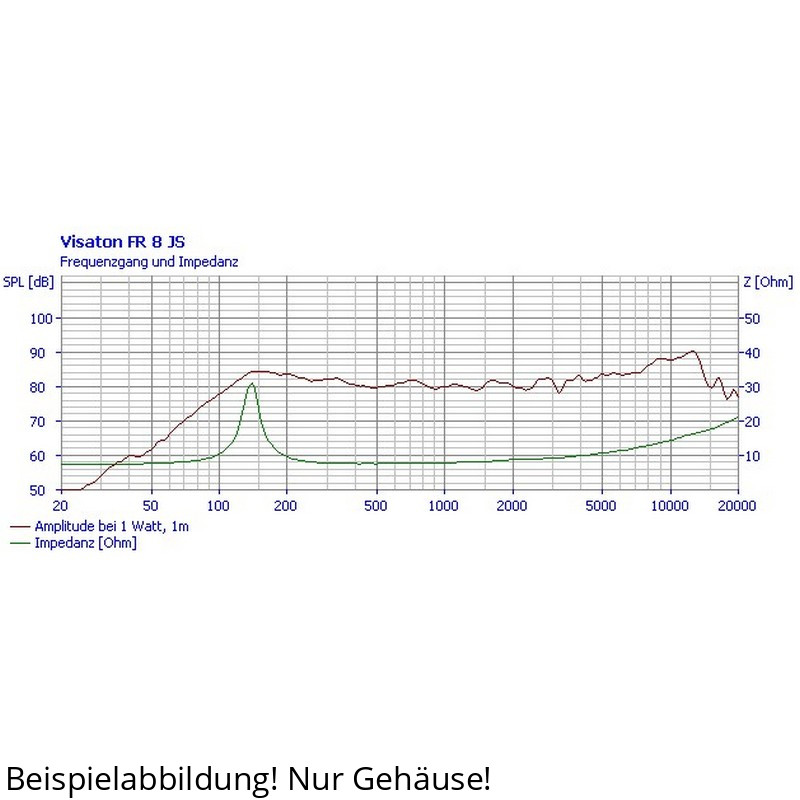

| Transmission range (-10 dB) | 80–20000 Hz |
| Medium sound pressure level | 83 dB (1 W/1 m) |

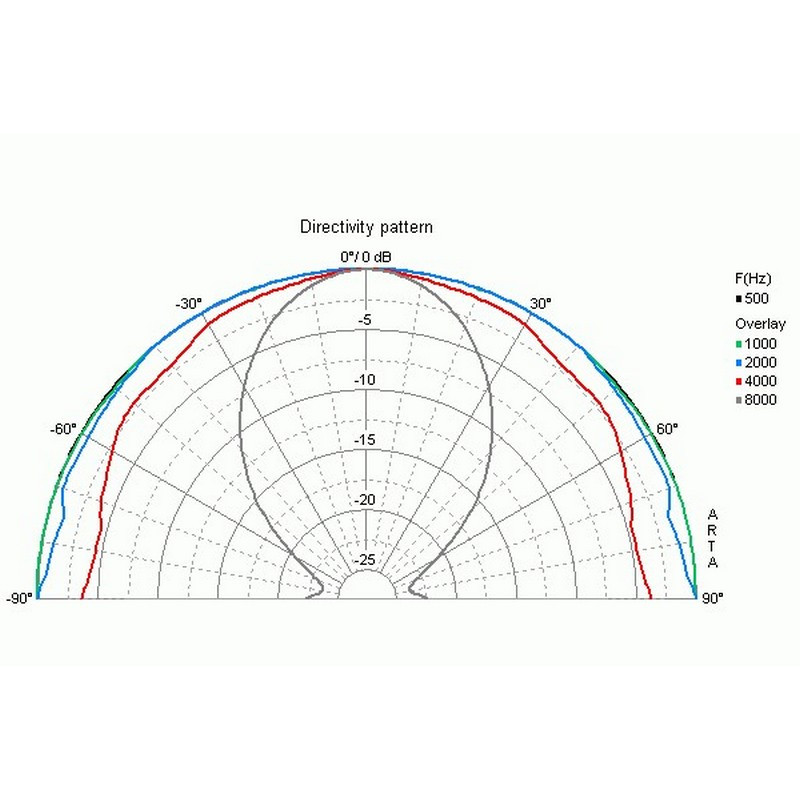

| Beam angle (-6 dB) | 180°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 130 Hz |
| Magnetic induction | 1.4 T |
| Magnetic flux | 200 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 15 mm |
| Winding height | 5 mm |
| Sound wall opening | 75 mm |
| Weight net | 0,24 |
| DC resistance Rdc | 7.2 Ohm |
| Mechanical Q-factor Qms | 4,30 |
| Electric Q-factor Qes | 1,74 |
| Total Q factor Qts | 1,24 |
| Equivalent air yield volume Vas | 0,84 |
| Effective membrane surface Sd | 30 cm2 |
| Dynamic moving mass Mms | 2,3 g |
| Drive factor Bxl | 2,77 tm |
| Vibration coil inductance L | 0,6 m |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Protection class | IP 64 * |
| Temperature range | −25 ... 70 °C |
