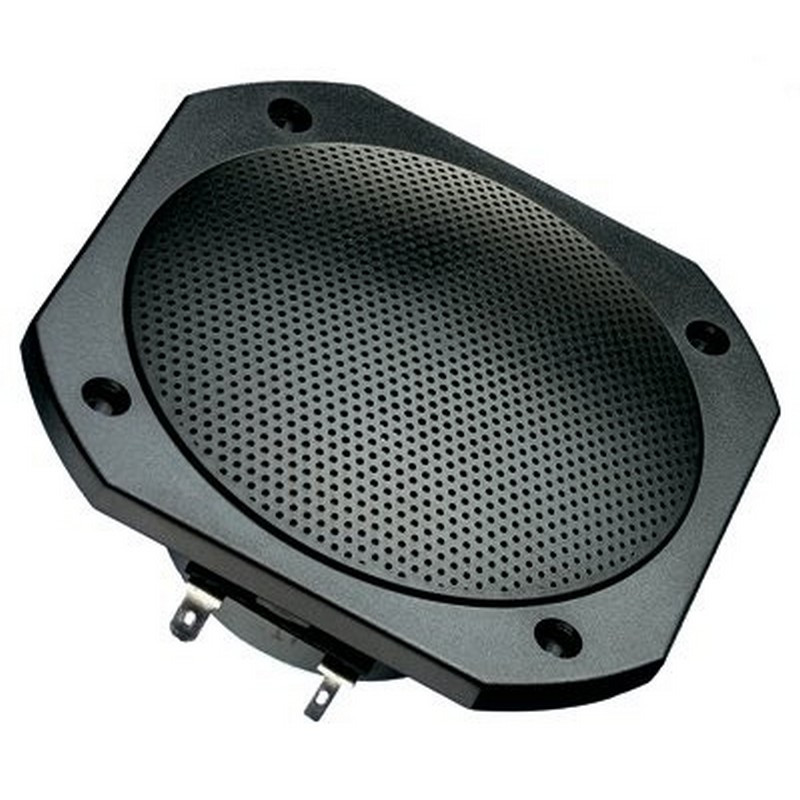

Visaton FRS 10 WP - 8 Ohm (black) broadband speakers
Seawater resistant 10 cm (4") broadband speakers
Visaton FRS 10 WP - 8 Ohm (black) broadband speakers
Seawater resistant 10 cm (4") broadband speakers
€48.22
Our previous price
€68.88
Save 30%
Tax included
Shipping excluded
4-0041
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Seawater resistant 10 cm (4") broadband speakers with glass fiber membrane, plastic basket and plastic grid.
Balanced frequency response, high efficiency and good medium high tone reproduction. Due to permanent weather resistance particularly suitable for outdoor sound systems, swimming pools, saunas and as a built-in loudspeaker for boats, ships and open vehicles.
Also as a built-in loudspeaker for ship and boat models.
*) IP protection class for front side when installed in a sealed housing
Applications
- External sound systems
- Speaker for sauna
- Weatherproof ELA lines
- Boats, ships and open vehicles
Â
Characteristics
- suitable for outdoor applications, seawaterproof
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- Plastic: PC (UL 94: V-0)
- Temperature resistance 120 °C
- ball throw-proof
Â
Technical data
| Rated load capacity | 25 W |
|---|---|
| Music loading | 50 W |
| Nominal impedance Z | 8 Ohm |

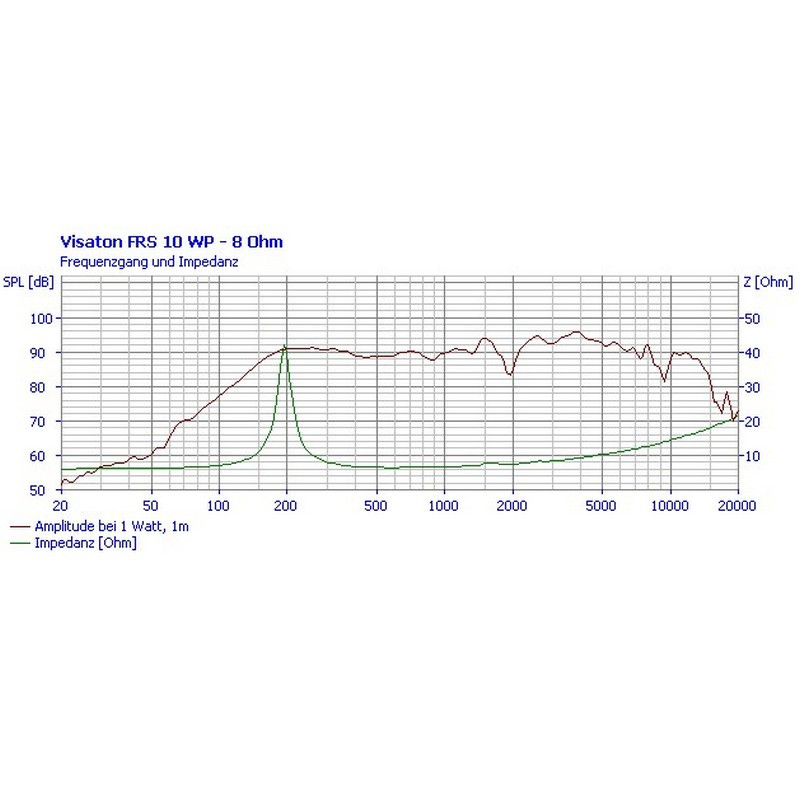

| Transmission range (-10 dB) | 90–19000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

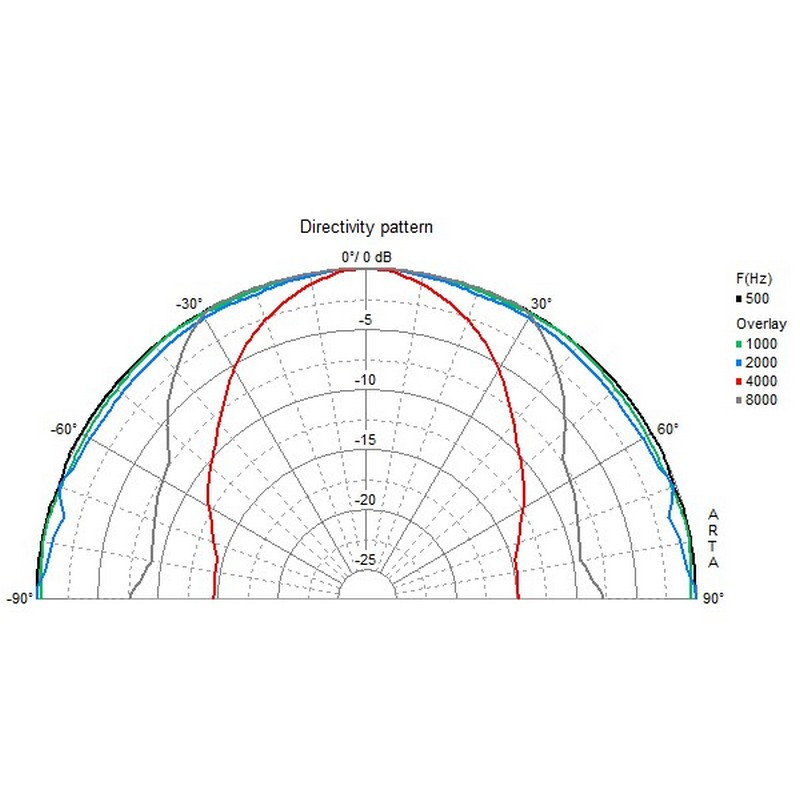

| Beam angle (-6 dB) | 64°/4000 Hz |
| Border deflection | +/-3 mm |
| Reaction frequency fs | 190 Hz |
| Magnetic induction | 1.0 |
| Magnetic flux | 190 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5 mm |
| Sound wall opening | 92 mm |
| Weight net | 0,36 % |
| DC resistance Rdc | 6.4 Ohm |
| Mechanical Q-factor Qms | 7,6 |
| Electric Q-factor Qes | 1,12 |
| Total Q factor Qts | 0,98 |
| Equivalent air yield volume Vas | 1.9 l |
| Effective membrane surface Sd | 57 cm2 |
| Dynamic moving mass Mms | 3 g |
| Drive factor Bxl | 4,3 Tm |
| Vibration coil inductance L | 0.4 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Protection class | IP 65 *) |
| Temperature range | −40 – 120 °C |
| Colour | black / black |
