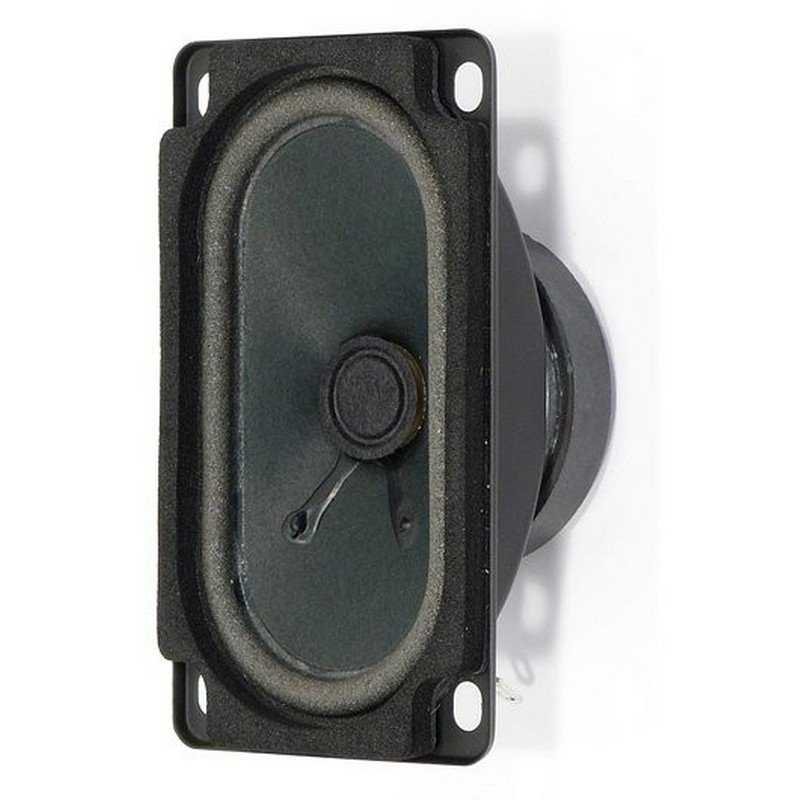

Visaton SC 5.9 OM - 8 Ohm broadband speakers
5 x 9 cm (2" x 3.5") broadband loudspeaker
Visaton SC 5.9 OM - 8 Ohm broadband speakers
5 x 9 cm (2" x 3.5") broadband loudspeaker
€8.86
Our previous price
€12.65
Save 30%
Tax included
Shipping excluded
4-0083
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
5 x 9 cm (2" x 3.5") broadband loudspeaker with strong drive, good efficiency and a very balanced frequency response.
The SC 5.9 OM - 8 Ohm is particularly suitable for space-saving solutions in the area of multimedia and Dolby surround as well as as as a replacement fitting for flat screen televisions.
Applications
- Multimedia boxes
- Flat-screen televisions
- Control loudspeaker for electronic devices
Characteristics
- Moisture-impregnated membrane
- Metal design
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 8 Ohm |

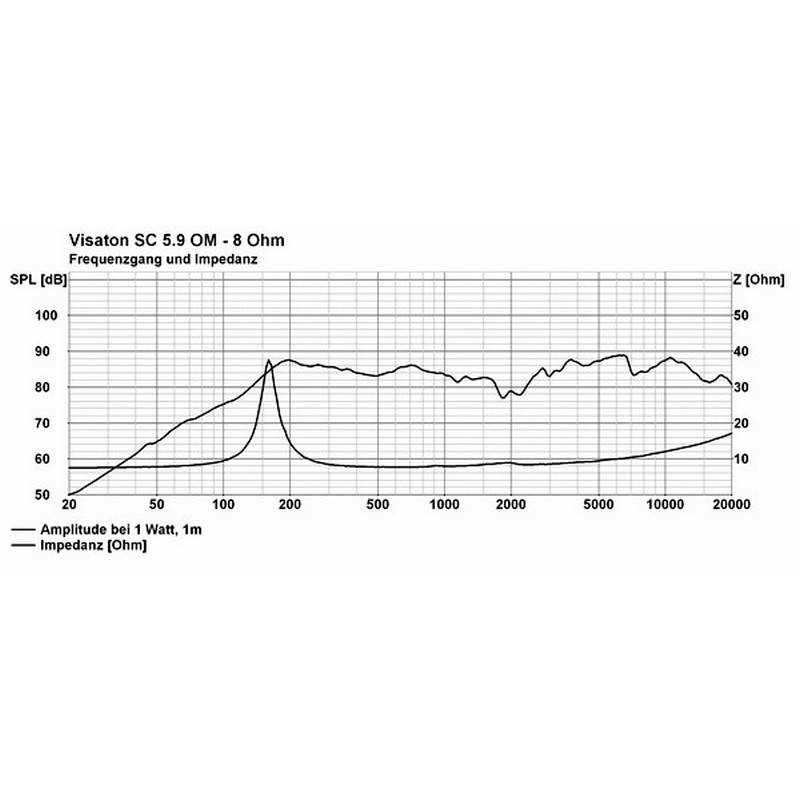

| Transmission range (-10 dB) | 90–20000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |
| Reaction frequency fs | 170 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 4 mm |

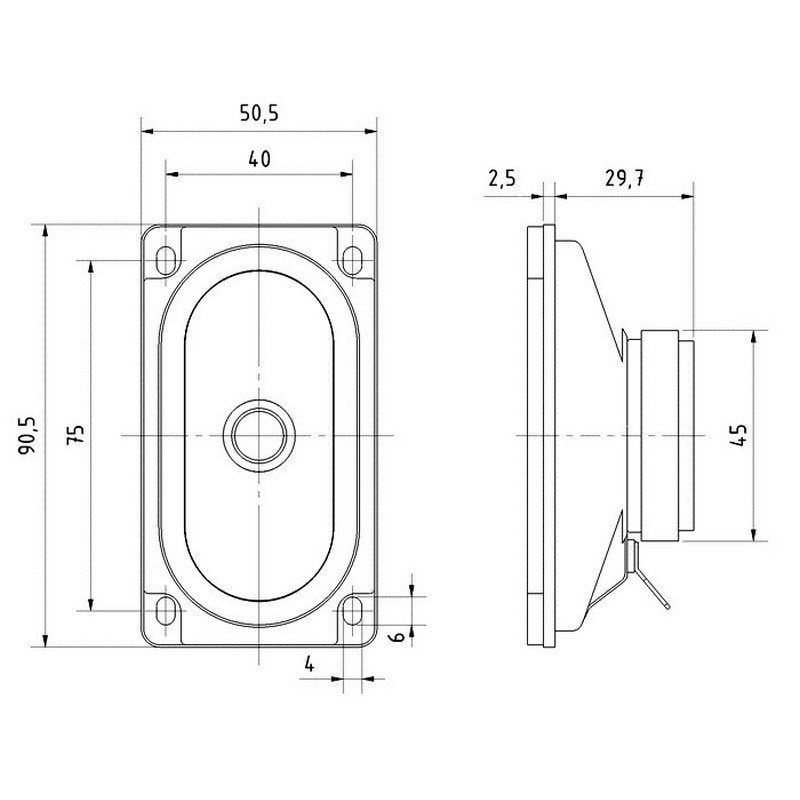

| Sound wall opening | 43 x 82 mm |
| Weight net | 0,13 kg |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
