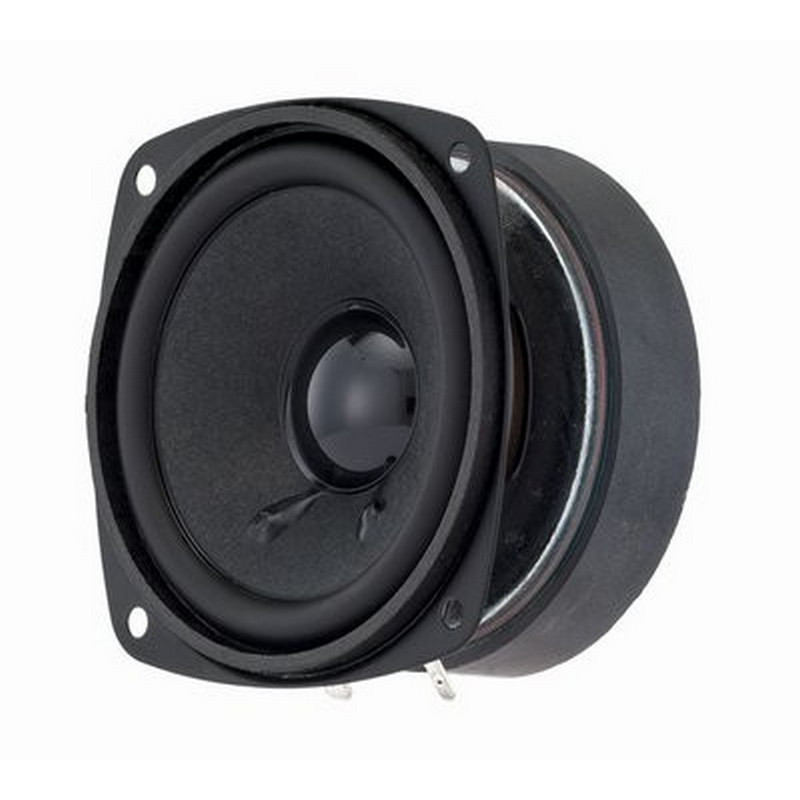

Visaton FRS 8 M - 8 Ohm HiFi broadband loudspeaker
8 cm (3,3") HiFi broadband loudspeaker
Visaton FRS 8 M - 8 Ohm HiFi broadband loudspeaker
8 cm (3,3") HiFi broadband loudspeaker
€13.95
Our previous price
€19.93
Save 30%
Tax included
Shipping excluded
4-0053
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
8 cm (3,3") HiFi broadband loudspeaker with strong magnetic drive and high sound pressure level.
Particularly suitable for sound lines and small bass reflex loudspeakers, z.B. in mini-sub-sat systems.
Applications
- sound lines
- Mini-Hifi boxes
Characteristics
- Moisture-impregnated membrane
- Metal design
Technical data
| Rated load capacity | 30 W |
|---|---|
| Music loading | 50 W |
| Nominal impedance Z | 8 Ohm |

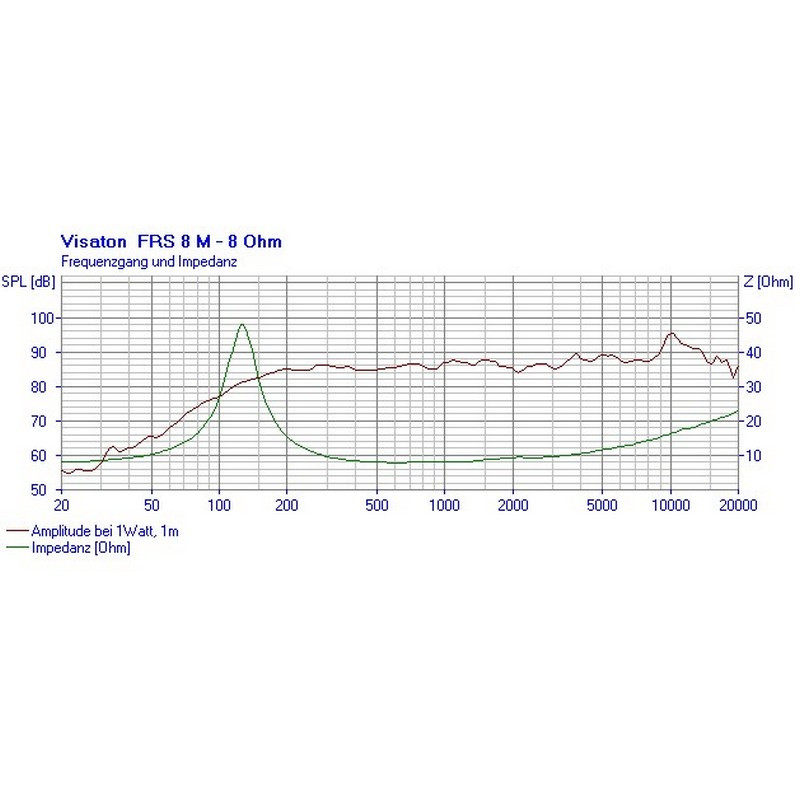

| Transmission range (-10 dB) | 100–20000 Hz |
| Medium sound pressure level | 88 dB (1 W/1 m) |

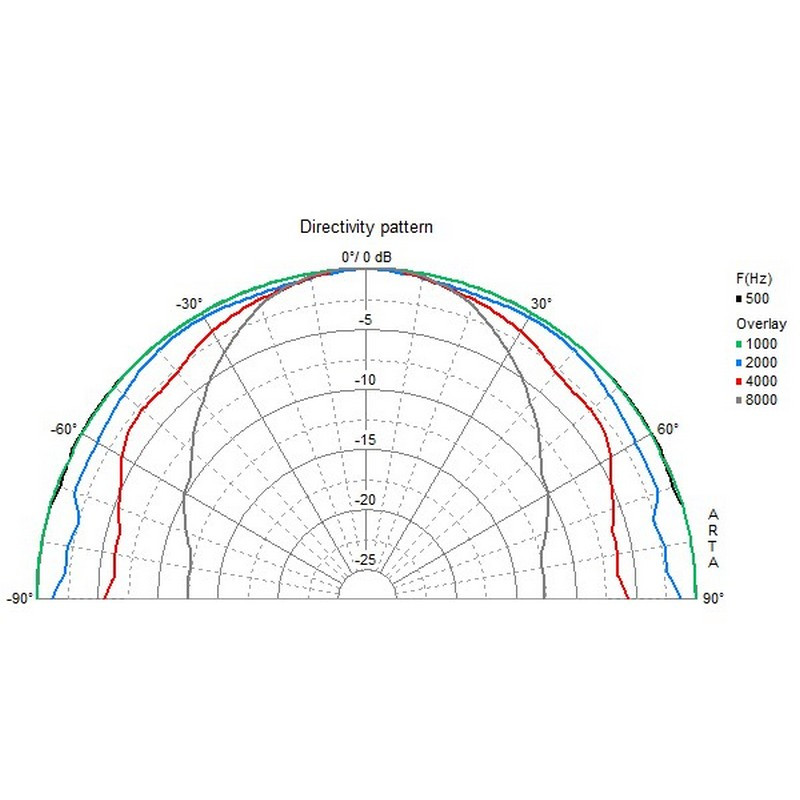

| Beam angle (-6 dB) | 147°/4000 Hz |
| Border deflection | +/-2.5 mm |
| Reaction frequency fs | 125 Hz |
| Magnetic induction | 1,2 T |
| Magnetic flux | 225 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 4.5 mm |

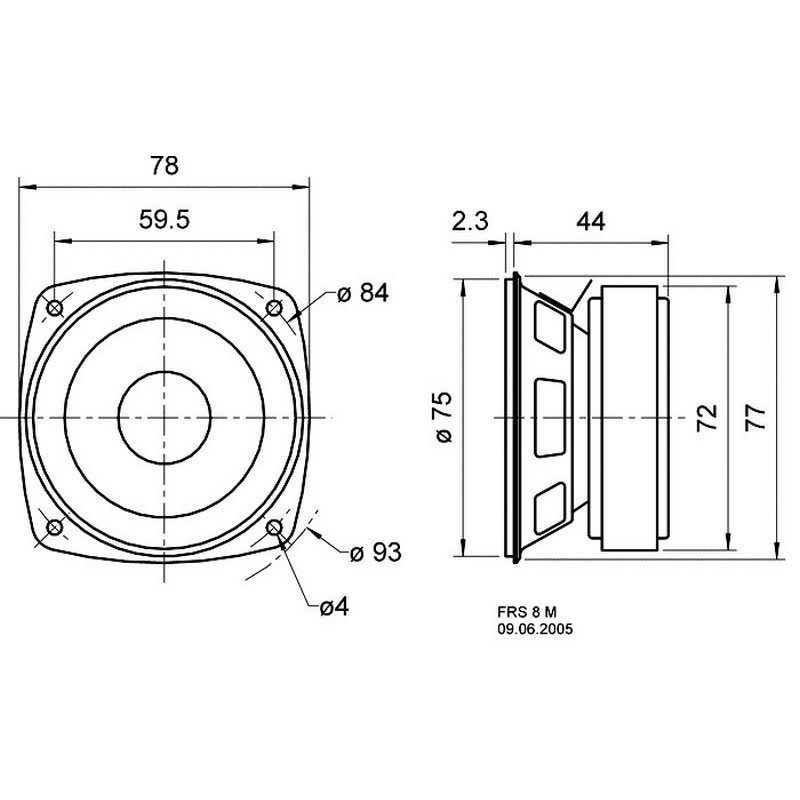

| Sound wall opening | 75 mm |
| Weight net | 0,5 kg |
| DC resistance Rdc | 7.2 Ohm |
| Mechanical Q-factor Qms | 3,24 |
| Electric Q-factor Qes | 0,58 |
| Total Q factor Qts | 0,49 |
| Equivalent air yield volume Vas | 1.1 l |
| Effective membrane surface Sd | 29 cm2 |
| Dynamic moving mass Mms | 1.8 g |
| Drive factor Bxl | 4,0 Tm |
| Vibration coil inductance L | 0,3 mH |
| Connections | 4,8 x 0,8 mm (+)/2,8 x 0,8 mm (-) |
| Temperature range | -40... 130 °C |
