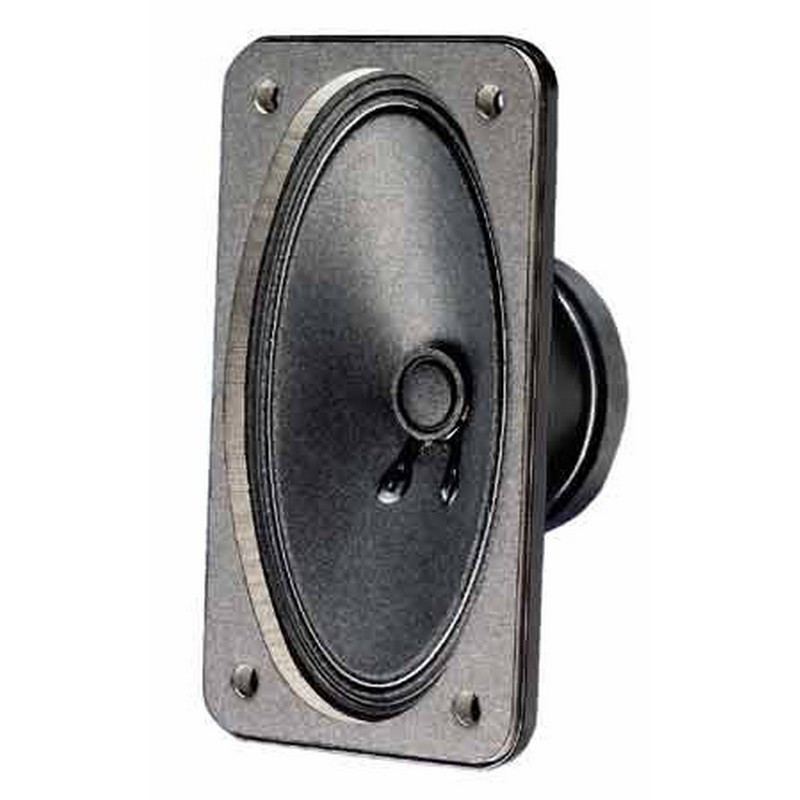

Visaton SL 713 - 4 Ohm broadband speakers
7 x 13 cm (2,8" x 5") Broadband speakers
Visaton SL 713 - 4 Ohm broadband speakers
7 x 13 cm (2,8" x 5") Broadband speakers
€14.55
Our previous price
€20.79
Save 30%
Tax included
Shipping excluded
4-0086
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
7 x 13 cm (2,8" x 5") Broadband speakers with high efficiency and high-tone increase for good speech comprehensibility.
Suitable for use in narrow speaker lines, for sound systems and ELA systems in 100 V technology.
Applications
- ELA lines
- Ceiling loudspeakers in rail vehicles and buses
Characteristics
- Moisture-impregnated membrane
- Metal design
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 4 Ohms |

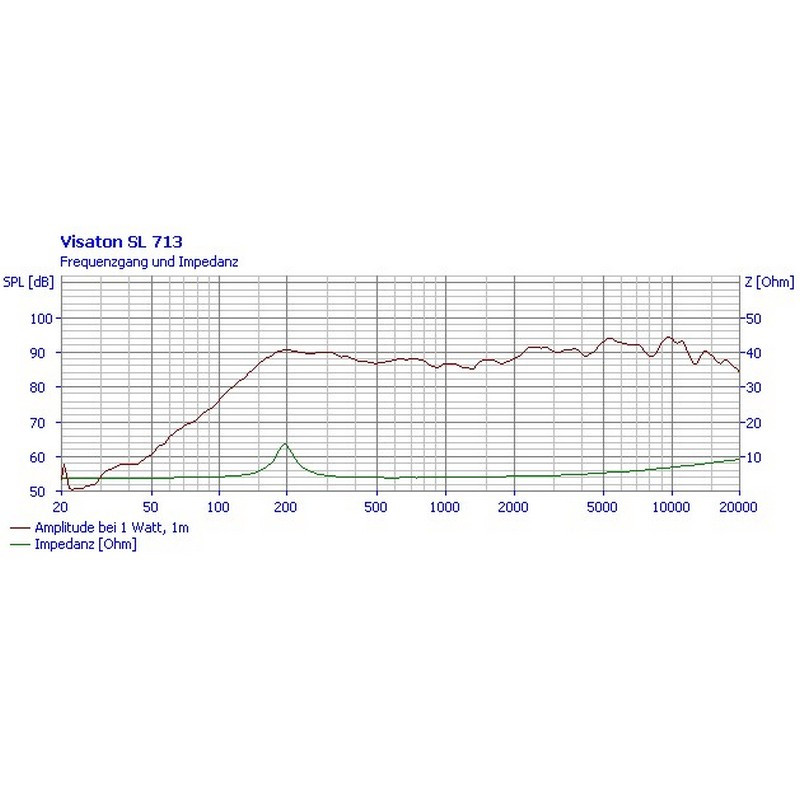

| Transmission range (-10 dB) | 100–20000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

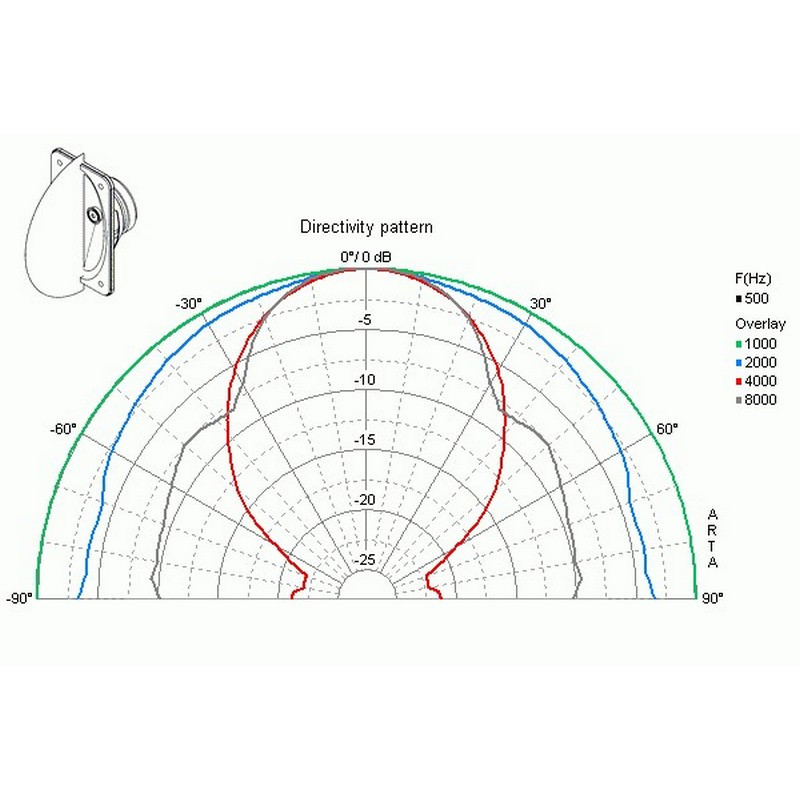

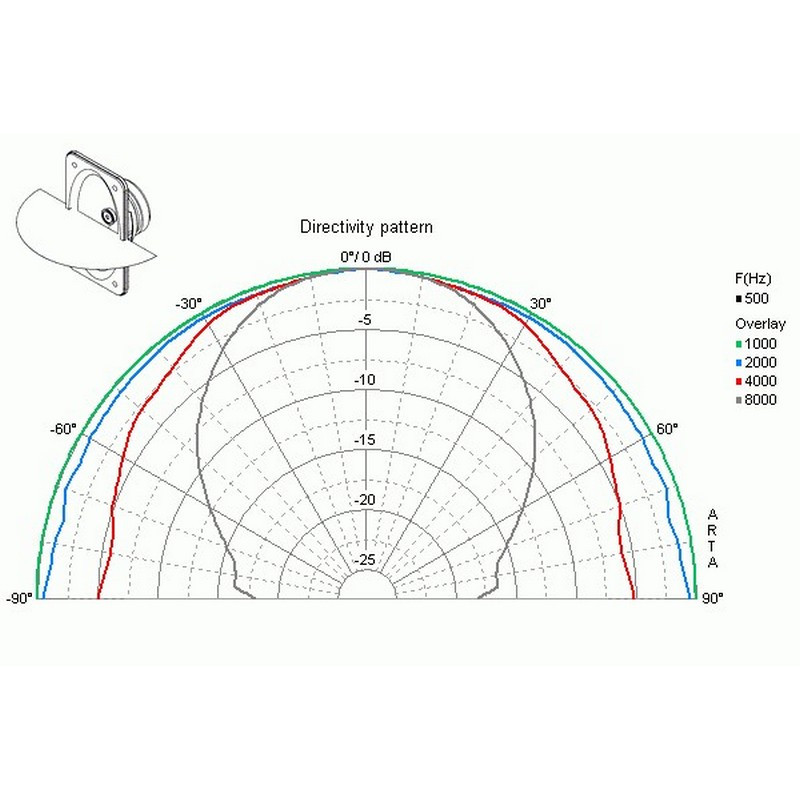

| Beam angle (-6 dB) | 180°/4000 Hz. 63°/4000 Hz. |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 180 Hz |
| Magnetic induction | 0,9 % |
| Magnetic flux | 130 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 15 mm |
| Winding height | 5 mm |

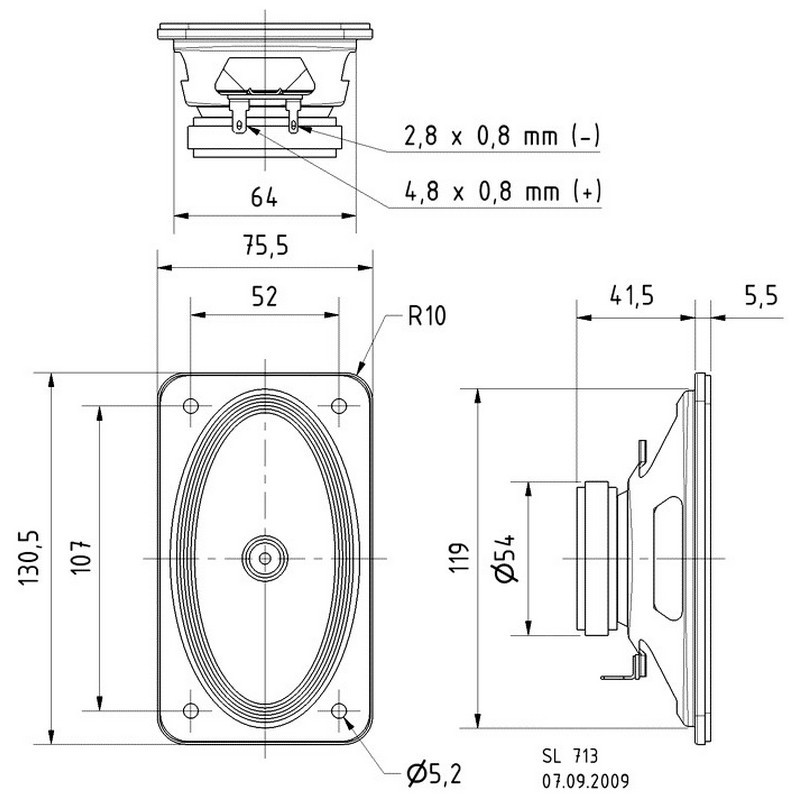

| Sound wall opening | 66 x 119 mm (oval) |
| Weight net | 0,28 % |
| DC resistance Rdc | 3.6 Ohm |
| Mechanical Q-factor Qms | 8,2 |
| Electric Q-factor Qes | 2,2 |
| Total Q factor Qts | 1,7 |
| Equivalent air yield volume Vas | 1.5 l |
| Effective membrane surface Sd | 50 cm2 |
| Dynamic moving mass Mms | 1.7 g |
| Drive factor Bxl | 1.9 Tm |
| Vibration coil inductance L | 0,2 m |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −40 – 70 °C |
