Visaton FR 16 WP CL - 100 V broadband speakers

Seawater resistant 16 cm (6.5") broadband loudspeaker

€65.70
Our previous price €93.86
Save 30%
Tax included Shipping excluded
Waterproof chassis
4-0024
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

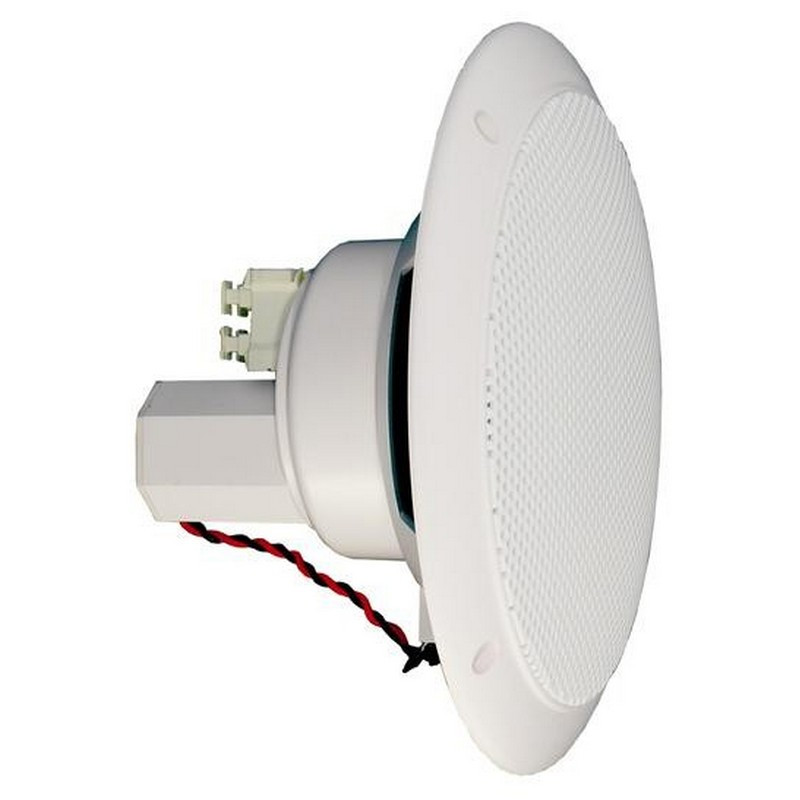

Seawater resistant 16 cm (6.5") broadband loudspeaker with injection molded plastic membrane as well as plastic basket and grid. Absolutely corrosion-resistant and water-resistant by magnetic cladding and silicone sheathing of the feed line. Suitable for chlorine-containing ambient air (z.B. Indoor swimming pools).

*) IP protection class for front side when installed in a sealed housing

Applications

- indoor pools



Characteristics

- 100-V transformer

- suitable for chlorine-containing ambient air

- seawater festival

- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)

- meets the requirements of Germanischer Lloyd (requirements for electrical equipment / refrigeration)

- Plastic: ASA (UL 94:HB; UV/weather resistant)

- ball throw-proof



Technical data

Trafo matching 6; 3; 1.5 W
Sound pressure level 94 dB (1 W/1 m) @ 3500 Hz

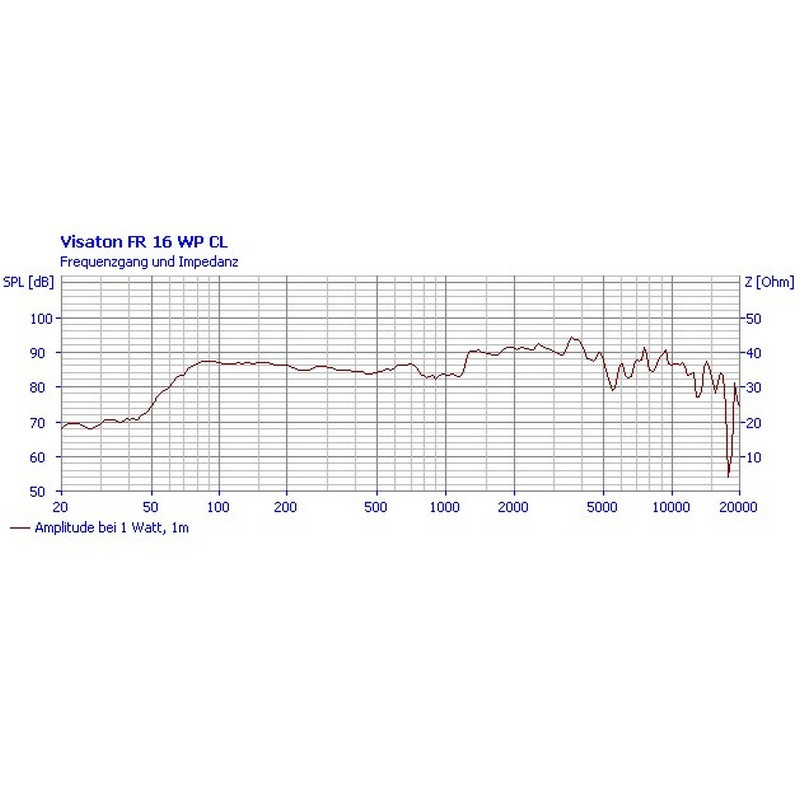

Transmission range (-10 dB) 60–15000 Hz
Medium sound pressure level 86 dB (1 W/1 m)
Maximum sound pressure level 93 dB (6 W/1 m)

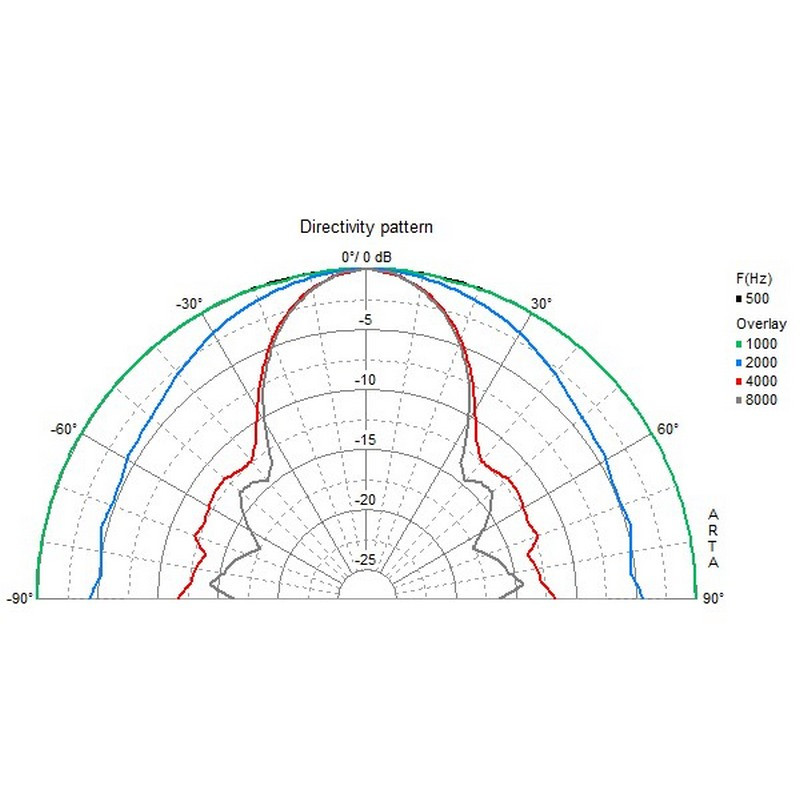

Beam angle (-6 dB) 46°/4000 Hz
Border deflection 6 mm
Magnetic induction 1.0
Magnetic flux 250 μWb
Upper pole plate height 4 mm
Oscillating coil diameter 20 mm
Winding height 6 mm

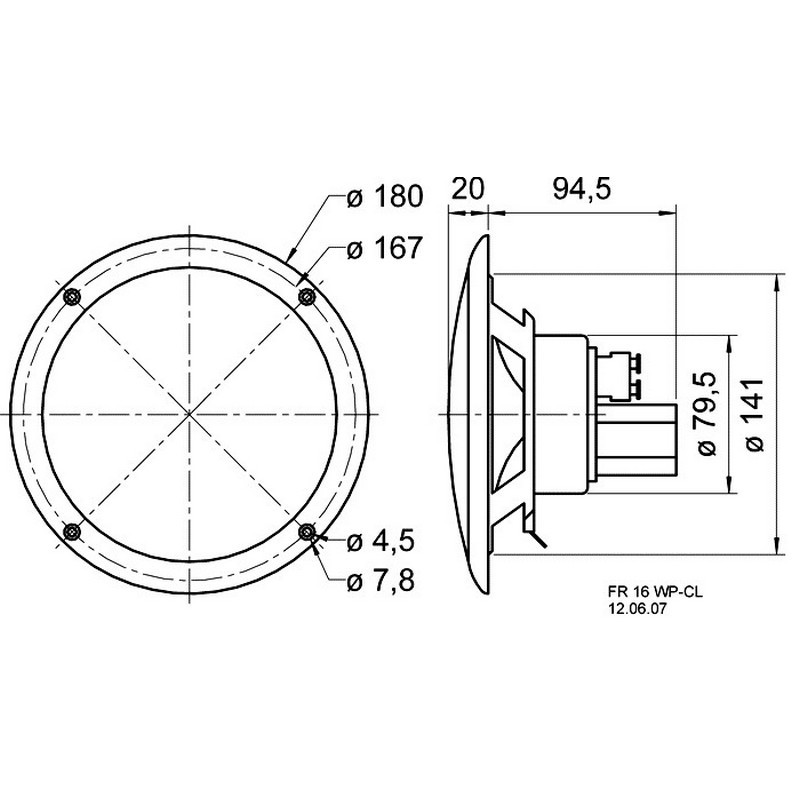

Sound wall opening 142 mm
Weight net 0,6 %
Protection class IP 65 *)
Temperature range −40 – 80 °C
4-0024
